Запчасти Case IH 1090 (372) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

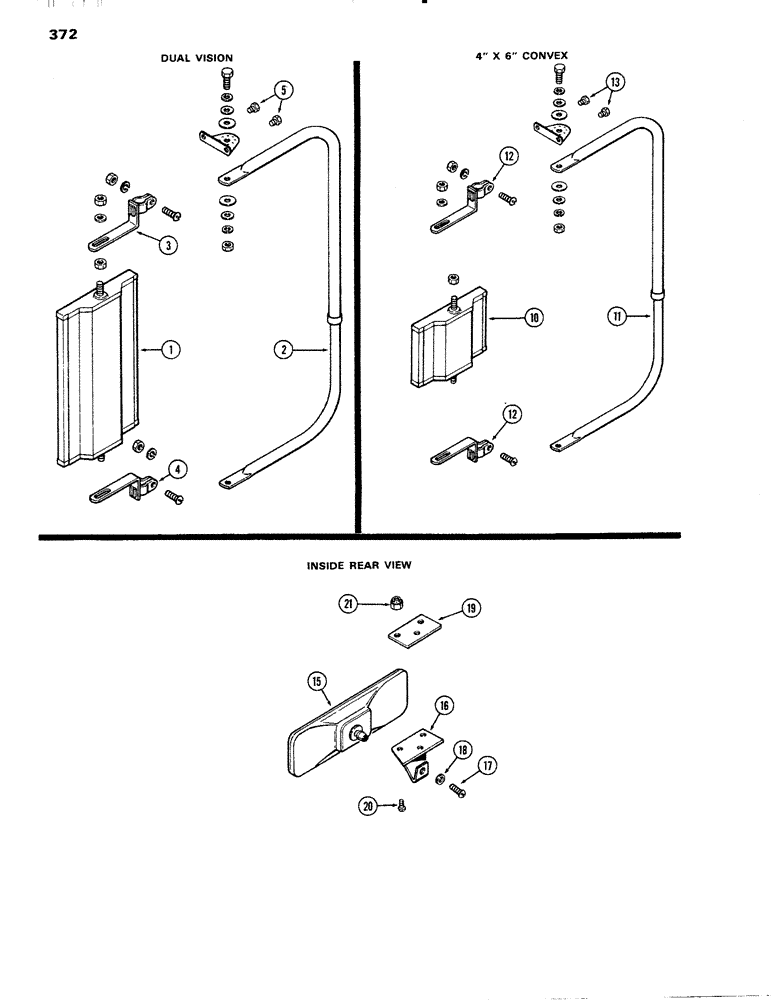

Схема запчастей Case IH 1090 - (372) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS
19
12
3
21
10
16
11
13
5
15
1
18
20
17
2
12
4

Артикул

Название

Примечание

Количество

1

A61895

ATTACHMENT

- mirror (Mach. Item), Includes: Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - dual vision (Order A61895), Includes: Ref. 1 - 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swing away

1шт.

3

A42766

ADAPTER

- mirror bracket (small)

1шт.

4

A42767

ADAPTER

- mirror bracket (large)

1шт.

5

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT - 1/4 x 3/8" hex. (Shakeproof)

4шт.

A61897

KIT

ATTACHMENT - mirror (Mach. Item), Includes: Ref. 10 - 13

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - 4 x 6 convex (Order A61897), Includes: Ref. 10 - 12

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

187-1009

BOLT

- 1/4 x 3/8" hex., Shakeproof, 4 x 6 convex

4шт.

F89785

MIRROR

ATTACHMENT - rear view mirror

1шт.

15

F89695

MIRROR

ASSY., Rear View, 15 - 21

1шт.

16

F63369

BRACKET

- mirror mounting, Rear View

1шт.

17

163-15

SCREW,Hex, #10 - 24 x 5/8"

- #10 - 32 x 3/8" flat hd., Rear View

1шт.

18

195-511

WASHER,#10

- plain, 13/64 x 15/32 x 1/16", Rear View

1шт.

19

F63381

PLATE

- bracket mounting, Rear View

1шт.

20

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10 x 1/2" rd. hd., Rear View

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, , Rear View #10-24, GB

3шт.

Выбрано товаров: 21
