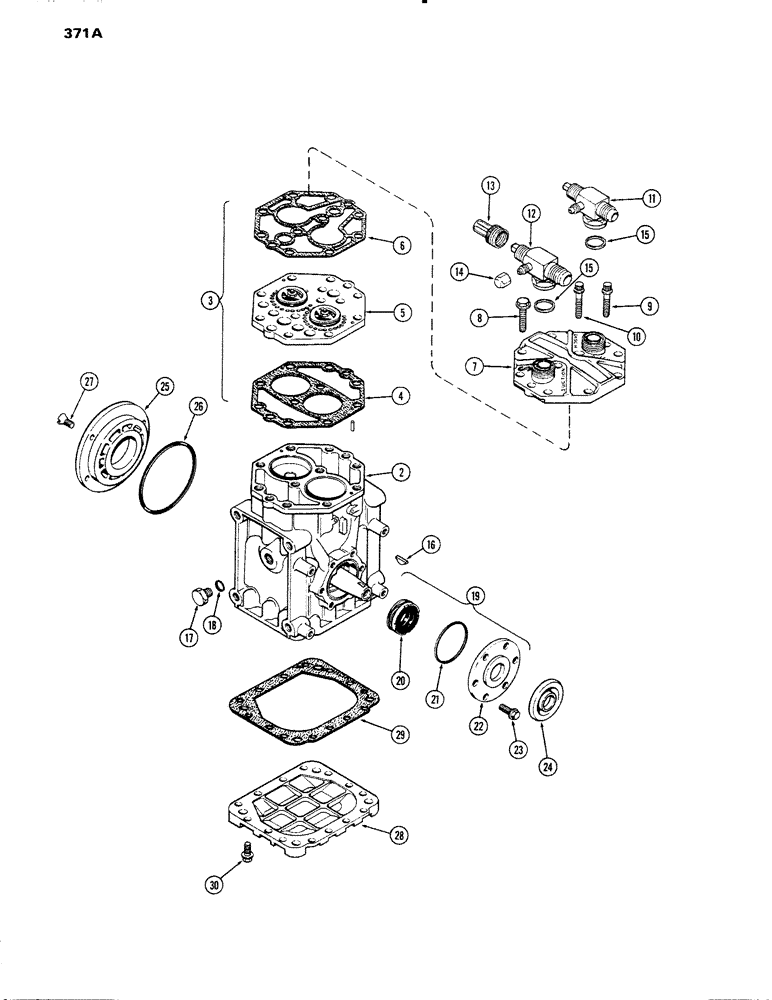

Запчасти Case IH 1090 (371A) - CAB, AIR CONDITIONER, YORK COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A64810

AIRCOND. COMPRESSOR

COMPRESSOR ASSY. - (York #488-20185T) (Replaces A61148, A42593 & A42594 for repairs), Includes: Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1924005C1

CORE-A/C COMPRESSOR

Rerturn Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42963

KIT

VALVE PLATE KIT, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - plate to crankcase (Order A42964)

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve (Order A42963)

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cyl. head to plate (Order A42964)

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT - head (5/16 x 1-3/8" N.C. hex. washer hd.)

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - cap (5/16 x 1-3/8" N.C. 12 pt. Ferry hd.)

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - cap (5/16 x 1-17/32" N.C. 12 pt. Ferry hd.)

2шт.

11

A42936

VALVE

VALVE ASSY. - roto-lock discharge (1/2" port)

1шт.

12

A42937

VALVE

VALVE ASSY. - roto-lock discharge (5/8" port)

4шт.

13

A42944

CAP

CAP - sleeve, valve stem, Includes: Ref. 14

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

GASKET -, Serial Range: valve-head

2шт.

16

A42936

VALVE

KEY - crankshaft (#6 Non-Rok)

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - plug, 3/8 x 1/2" N.F. hex.

2шт.

18

NSS

NOT SOLD SEPARAT

"O" RING - plug (Order A42964)

2шт.

19

A42960

SEAL

SEAL KIT - front, crankshaft, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

"O" RING - (Order A42964)

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - seal plate (#10 - 24 x 7/16" hex. washer hd.)

6шт.

24

A42965

CAP

CAP - dust, crankshaft oil seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - rear, crankcase

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - rear housing (Order A42964)

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - rear housing

4шт.

28

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - baseplate (Order A42964)

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - baseplate

12шт.

A42964

GASKET

GASKET KIT - overhaul (incl. ref. 4, 6, 18, 21, 26 & 29)

1шт.
