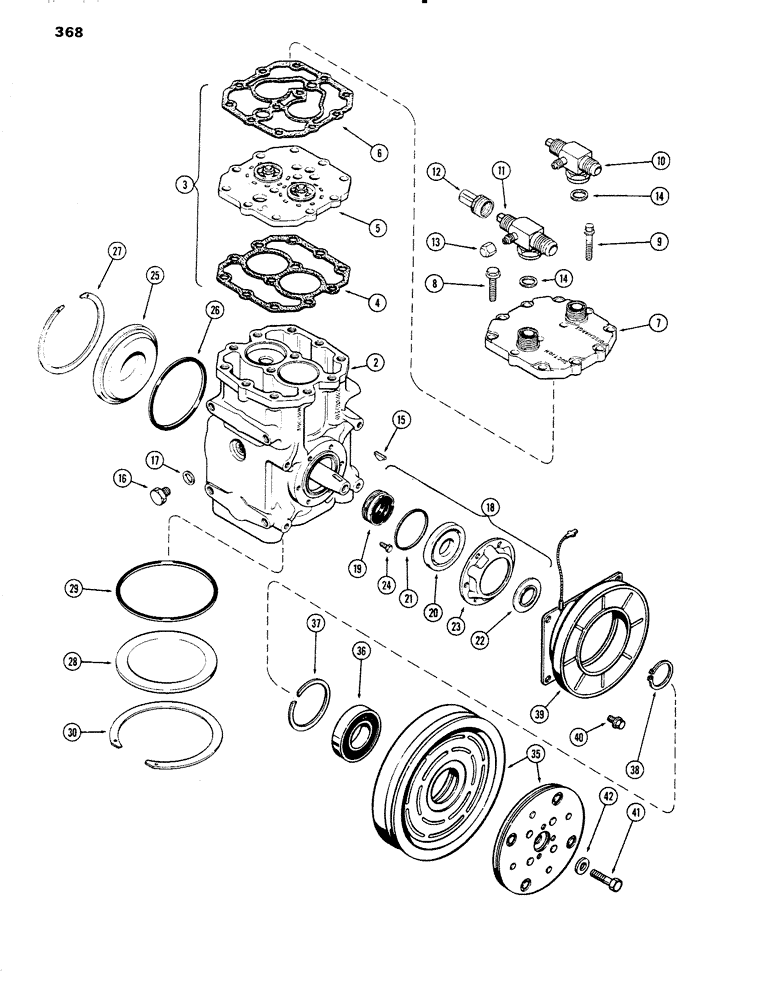

Запчасти Case IH 1090 (368) - CAB, TECUMSEH COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh #HG-1000) (Order A64810 from Figure 371A for repairs), Includes: Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42935

PLATE

VALVE PLATE KIT, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - plate to crankcase (Order A42943)

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - head to valve plate (Order A42943)

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

114-125

BOLT - 5/16 x 1-3/8" N.F. hex. washer hd.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - 5/16 x 1-3/8" N.C. cap (12 pt. Ferry)

4шт.

10

A42936

VALVE

VALVE ASSY. - discharge (1/2" port)

1шт.

11

A42937

VALVE

VALVE ASSY. - suction (5/8" port), Includes: Ref. 12 and 13

1шт.

12

A42944

CAP

CAP - sleeve, valve stem

1шт.

13

221-981

CAP - valve stem

1шт.

14

A42938

GASKET

GASKET - suction valve

1шт.

15

A42939

KEY

KEY - crankshaft (#6 Non-Rok)

1шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

PLUG - crankcase, filler & level

2шт.

17

NSS

NOT SOLD SEPARAT

GASKET - filler & level plug (Order A42943)

2шт.

18

A42934

SEAL

SEAL KIT - front, crankshaft, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - seal, outer

1шт.

21

NSS

NOT SOLD SEPARAT

"O" RING - (Order A42943)

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - inner seal

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - crankshaft seal

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - seal, Serial Range: plate-crankshaft

6шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

26

NSS

NOT SOLD SEPARAT

"O" RING - rear bearing housing (Order A42943)

1шт.

27

NSS

NOT SOLD SEPARAT

RING - snap, rear brg. housing

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

29

NSS

NOT SOLD SEPARAT

"O" RING - bottom plate (Order A42943)

1шт.

30

NSS

NOT SOLD SEPARAT

RING - snap, bottom plate

1шт.

A42943

SPARE PART GASKET KIT - complete overhaul (Includes Ref. 4, 6, 17, 21, 26 & 29)

1шт.

A61149

CLUTCH

CLUTCH ASSY. - (Warner Electric #I-1405-14), Includes: Ref. 35 - 42

1шт.

35

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

36

C14295

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

BEARING - pulley rotor

1шт.

37

A42942

SPARE PART RING - snap, outer bearing

1шт.

38

A8218

SNAP RING,#118, Ext

Ring, Snap, , inner bearing #118, Ext

1шт.

39

A42941

COIL

FIELD ASSY. - pulley

1шт.

40

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, , Field to compressor Hex, 1/4"-20 x 3/8", G5, Full Thd

4шт.

41

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

BOLT - clutch to crankshaft (5/16 x 1-1/4" N.F. hex.)

1шт.

42

A27343

BUSHING

SPACER - clutch bolt

1шт.
