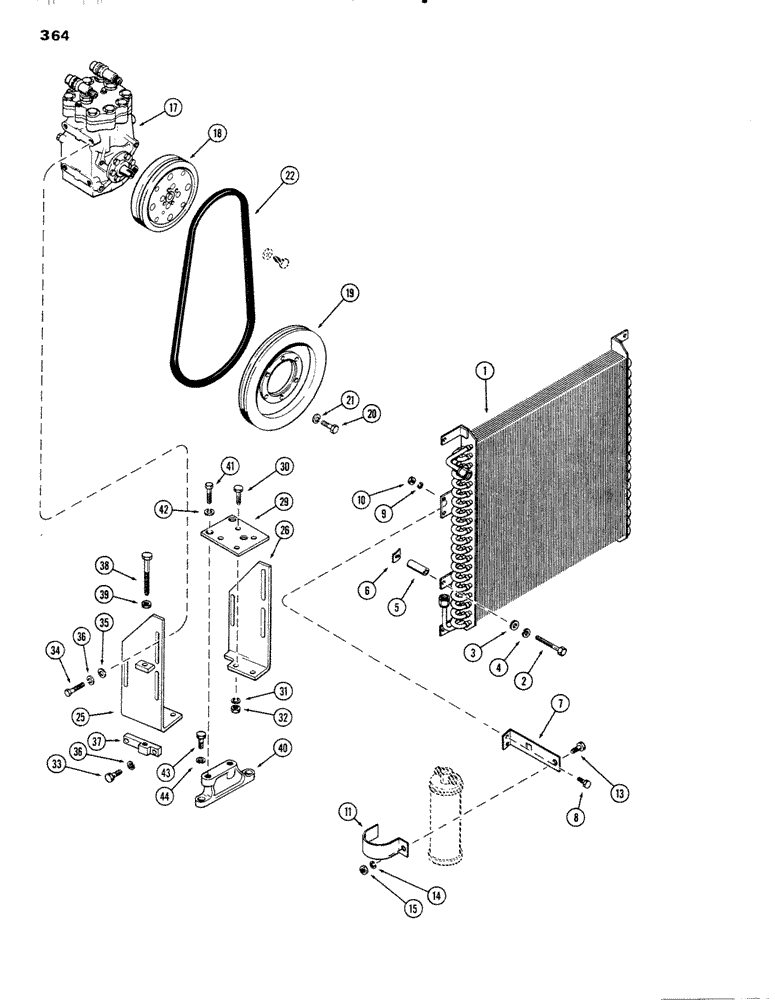

Запчасти Case IH 1090 (364) - CAB, AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A61812
COIL
CONDENSER
1шт.
2
13-448
BOLT,Hex, 1/4" - 20 x 3", Gr 5
4шт.
3
95-4
WASHER,1/4"
- 5/16 x 3/4 x 1/16"
4шт.
4
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
5
A61813
SPACER - condenser mounting
4шт.
6
131-611
NUT,Ret, 1/4"-20
- 1/4" N.C. Tinnerman
4шт.
7
A62131
BRACKET - receiver
1шт.
8
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
1шт.
9
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
10
25-104
NUT,1/4"-20, G5
1шт.
11
A61193
CLAMP
- receiver
1шт.
13
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
14
92-5
LOCK WASHER,5/16"
1шт.
15
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex.
1шт.
17
REF
INSTRUCTION
COMPRESSOR - (Tecumseh)(Order from Figure: 368)
1шт.
17
A42954
COMPRESSOR - (York)(Order from Figure: 370)
1шт.
18
A61149
CLUTCH
- compressor electromagnetic (See Figure: 370)
1шт.
19
A61157
PULLEY - compressor drive
1шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
6шт.
21
92-6
LOCK WASHER,3/8"
6шт.
22
A65692
BELT,72.83" L
Compressor Drive 72.83" L
1шт.
25
A61744
BRACKET - compressor mtg., R.H.
1шт.
26
A61745
BRACKET - compressor mtg., L.H.
1шт.
29
A61743
PLATE - compressor mtg., bracket adjusting
1шт.
30
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
31
92-6
LOCK WASHER,3/8"
4шт.
32
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
33
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
34
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
2шт.
35
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64"
2шт.
36
92-6
LOCK WASHER,3/8"
6шт.
37
A61153
BLOCK - adjusting, compressor
2шт.
38
A61154
BOLT - adjusting, 3/8 x 4-1/4" N.C. hex.
2шт.
39
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8" N.C. hex., jam
2шт.
40
A61155
BRACKET
SUPPORT - compressor mounting bracket
1шт.
41
13-716
BOLT,Hex, 7/16" - 14 x 1", Gr 5
3шт.
42
92-7
LOCK WASHER,7/16"
3шт.
43
13-822
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
2шт.
44
92-8
LOCK WASHER,1/2"
2шт.
Выбрано товаров: 39
