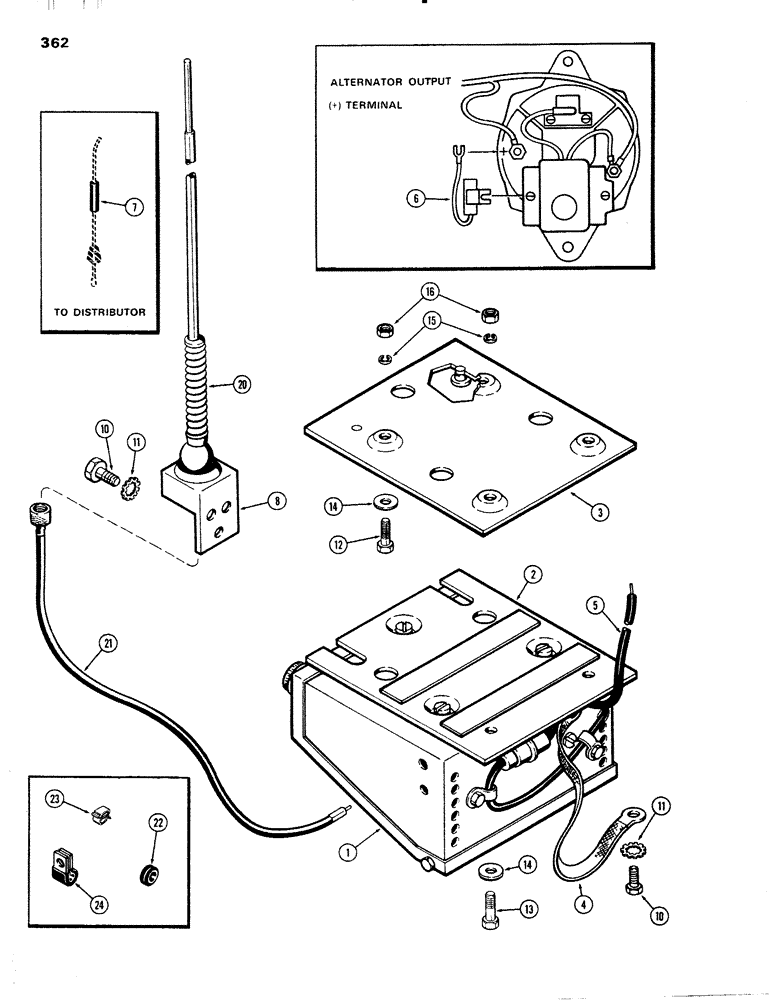

Запчасти Case IH 1090 (362) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS

A62456

RADIO

KIT - (Replaces A61804 & A61805) (for complete installation also order A62457 antenna kit), Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO - (includes speaker)

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - radio mounting (includes bolts)

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - adapter, roof mounting

1шт.

4

NSS

NOT SOLD SEPARAT

STRAP - ground

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - hot, lead-in (60")

1шт.

6

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (not used w/diesel)

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - antenna mounting

1шт.

NSS

NOT SOLD SEPARAT

PADS - shock, rubber

4шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - bracket & ground strap (1/4 x 1" N.C. hex.)

4шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

4шт.

12

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Adapter Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

13

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Adapter Hex, 1/4"-20 x 1", G5

2шт.

14

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.

A62457

ANTENNA

KIT, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

ANTENNA - (Order A62457)

1шт.

21

NSS

NOT SOLD SEPARAT

CABLE - lead-in (84")

1шт.

22

A23870

GROMMET

- antenna lead

1шт.

23

A62079

CLIP

- radio wire

5шт.

24

A20541

CLIP

- antenna wire

6шт.
