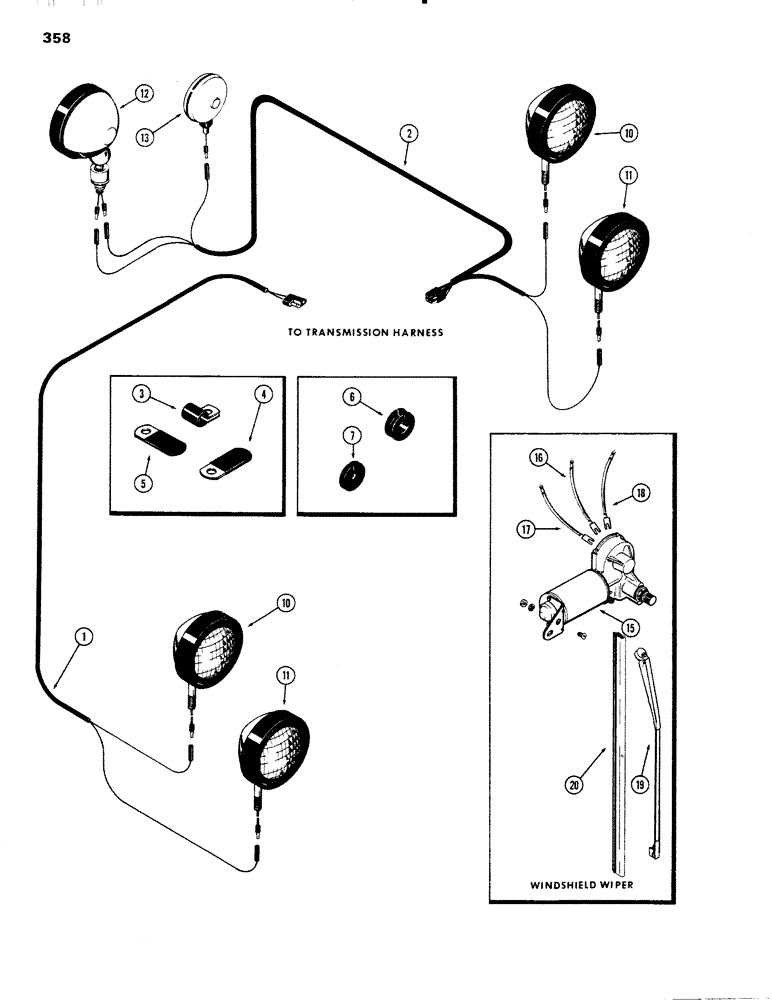

Запчасти Case IH 1090 (358) - CAB, LIGHTING EQUIPMENT AND WIRING, USED PRIOR TO TRACTOR SERIAL NUMBER 8675001 (09) - CHASSIS/ATTACHMENTS

1

A59708

HARNESS

- fender wire, R.H.

1шт.

2

A61146

HARNESS

- fender wire, L.H.

1шт.

3

NLS

NO LONGER SERVICED

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- cab front frame

2шт.

10

A59701

LAMP

- front head driving (See Figure: 88)

2шт.

11

A59723

LAMP

- front cultivator (See Figure: 90)

2шт.

12

A59703

LAMP

- rear flood & tail (See Figure: 92)

1шт.

13

A34853

LAMP

- flasher (See Figure: 84)

1шт.

A42692

MOTOR

ASSY. - windshield wiper, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR - wiper (Order A42692), windshield wiper

1шт.

16

A42693

ELECTRICAL WIRE

WIRE - green, wiper, windshield

1шт.

17

A42694

ELECTRICAL WIRE

WIRE - blue, wiper, windshield

1шт.

18

A42695

ELECTRICAL WIRE

WIRE - orange, wiper, windshield

1шт.

19

A42579

ARM

- wiper, windshield

1шт.

20

A42580

WIPER BLADE,203.2mm L

BLADE - wiper (16"), windshield

1шт.
