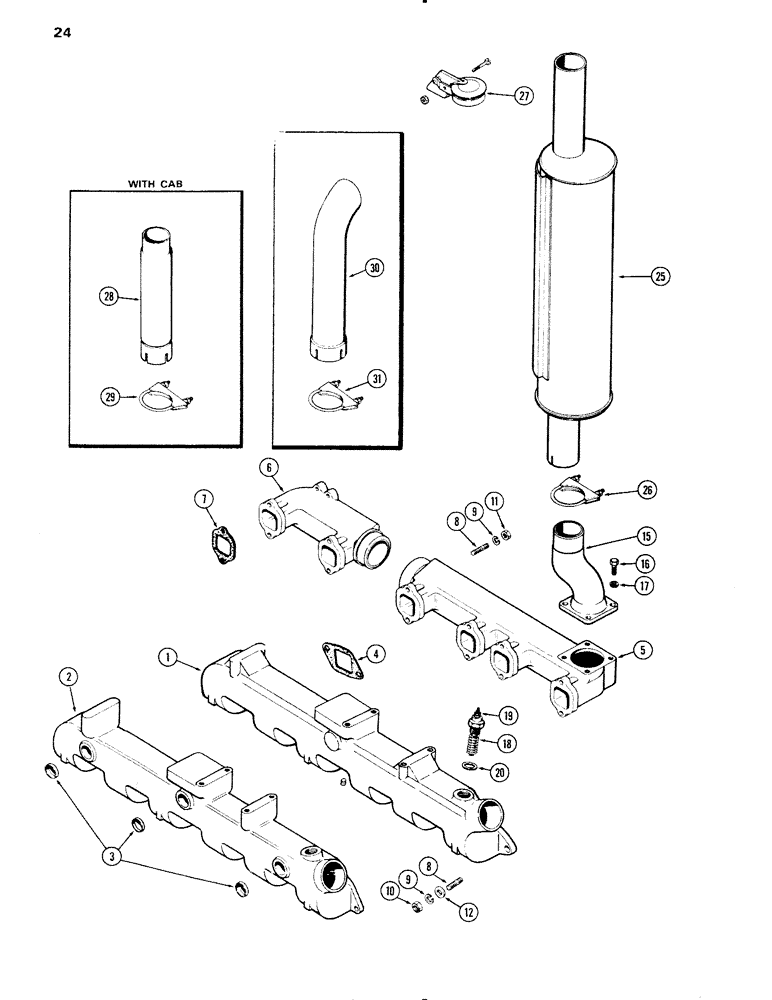

Запчасти Case IH 1090 (024) - MANIFOLD AND MUFFLER, (451B) DIESEL ENGINE (02) - ENGINE

1

A62844

TUBE

MANIFOLD - intake, aluminum (Replaces A61005)

1шт.

2

A61005

MANIFOLD

ASSY. - intake, cast iron (Order A62844), Includes Ref: 3

1шт.

3

41-1020

PLUG,Cup, 1 1/4"

- intake manifold

3шт.

4

A58662

MANIFOLD GASKET

- intake manifold

6шт.

5

A58749

MANIFOLD

- exhaust, front

1шт.

6

A58664

MANIFOLD

- exhaust, rear

1шт.

7

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

8

A59077

STUD

- intake & exhaust manifolds

24шт.

9

92-6

LOCK WASHER,3/8"

24шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (intake manifold)

12шт.

11

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seezpruf (exhaust manifold)

12шт.

12

195-25

WASHER,3/8"

(Use w/A62844 manifold) 3/8"

12шт.

15

A58751

MUFFLER

STACK - exhaust manifold

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

A37775

HEATER

ASSY. - intake manifold (12 v.), Includes Ref: 19

1шт.

19

129-503

NUT,1/4"-20, Brass

1шт.

20

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

25

A59765

MUFFLER

- standard (black)

1шт.

25

NSS

NOT SOLD SEPARAT

MUFFLER - Demonstrator (chrome) (Order A59765)

1шт.

26

A27115

CLAMP

- muffler

1шт.

27

A59766

CAP

- muffler rain (used w/o cab)

1шт.

A62883

KIT

- exhaust extension, Includes Ref: 28 and 29

1шт.

28

A61110

EXTENSION

- muffler (used w/cab)

1шт.

29

A62876

CLAMP

- extension (used w/cab)

1шт.

30

A62471

EXTENSION

- exhaust (optional w/ref. 28) Standard

1шт.

30

NSS

NOT SOLD SEPARAT

EXTENSION - exhaust, Demonstrator (chrome) (Order A62471)

1шт.

31

NSS

NOT SOLD SEPARAT

CLAMP - extension, Demonstrator (chrome) (Order A62876)

1шт.
