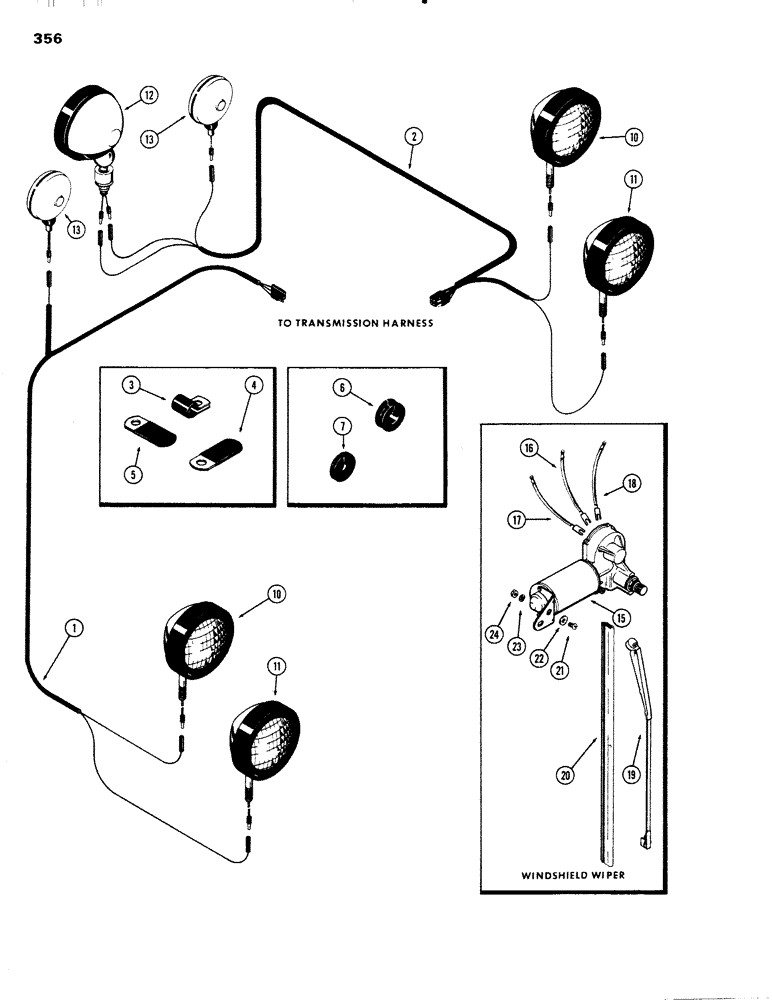

Запчасти Case IH 1090 (356) - CAB, LIGHTING EQUIPMENT AND WIRING, 1ST USED TRACTOR SERIAL NUMBER 8675001 (09) - CHASSIS/ATTACHMENTS

1

A62414

HARNESS

- R.H. fender wire

1шт.

2

A61146

HARNESS

- L.H. fender wire

1шт.

3

49885

CLAMP

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- front, cab frame

2шт.

10

A59701

LAMP

- driving (See Figure: 88)

2шт.

11

A59723

LAMP

- cultivating (See Figure: 90)

2шт.

12

A59703

LAMP

- rear, flood & tail (See Figure: 92)

1шт.

13

A34853

LAMP

- flasher (See Figure: 84)

2шт.

A42692

MOTOR

ASSY. - wiper, Includes: Ref. 15 - 18, windshield

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR - (Order A42692), windshield wiper

1шт.

16

A42693

ELECTRICAL WIRE

WIRE - green, windshield wiper

1шт.

17

A42694

ELECTRICAL WIRE

WIRE - blue, windshield wiper

1шт.

18

A42695

ELECTRICAL WIRE

WIRE - orange, windshield wiper

1шт.

NSS

NOT SOLD SEPARAT

ARM & BLADE ASSY. - wiper, Includes: Ref. 19 and 20, windshield

1шт.

19

T41946

ARM

- wiper, windshield

1шт.

20

42580

BLADE - wiper (16"), windshield

1шт.

21

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" rd. hd., windshield wiper

1шт.

22

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", windshield wiper

1шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Windshield wiper #10

1шт.

24

129-17

NUT,Hex, #10 - 24

NUT - #10 - 24 hex., windshield wiper

1шт.
