(350) - CAB, INSTRUMENT PANEL WIRING, WITH AIR CONDITIONER, HINSON

Запчасти Case IH 1090 (350) - CAB, INSTRUMENT PANEL WIRING, WITH AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

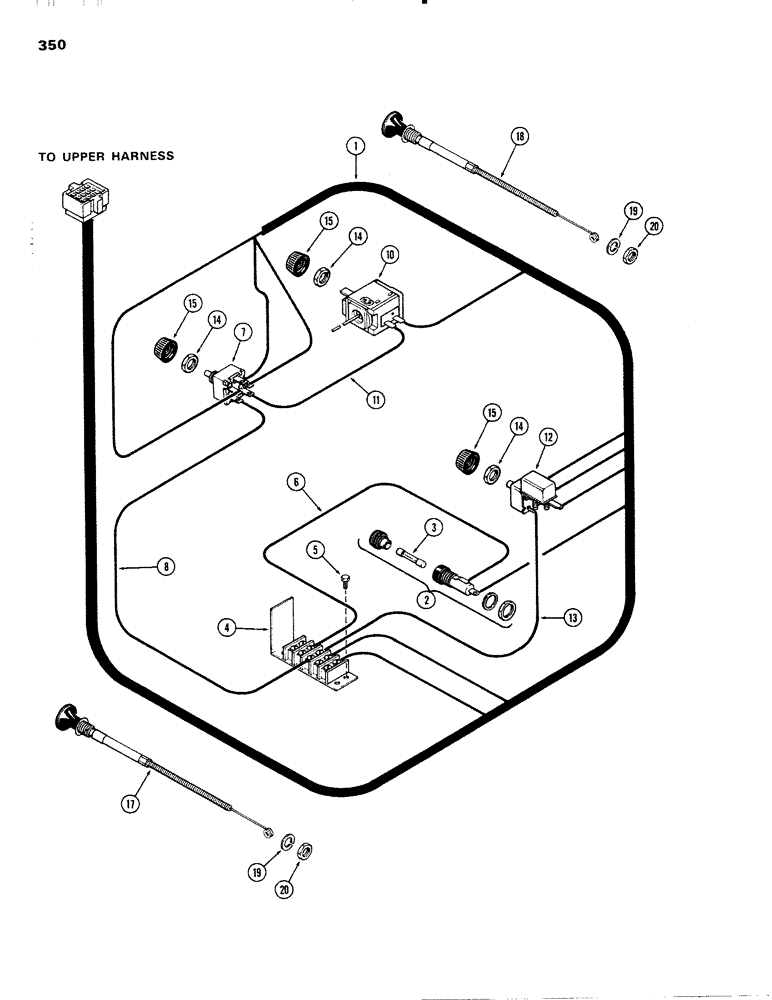

Схема запчастей Case IH 1090 - (350) - CAB, INSTRUMENT PANEL WIRING, WITH AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS
4
6
13
17
20
19
10
20
7
14
5
1
14
12
3
15
2
14
8
15
15
18
19
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A42583

HARNESS ASSY. - instrument panel wire

1шт.

2

A8006

NOZZLE HOLDER

HOLDER - panel fuse

1шт.

3

223-20

FUSE,20 Amp, Type SFE

- 20 amp.

1шт.

4

A42511

BLOCK

- wiring terminal

1шт.

5

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW - #8 - 24 x 5/8" slotted pan hd.

2шт.

6

A42563

WIRE - panel, red

1шт.

7

A42622

SWITCH

- blower

1шт.

8

A42565

ELECTRICAL WIRE

WIRE - panel, yellow

1шт.

10

A42623

CONTROL

- cab temperature

1шт.

11

A42624

ELECTRICAL WIRE

WIRE - panel, black

1шт.

12

A42660

SWITCH

- wiper motor

1шт.

13

A42564

WIRE - panel, green

1шт.

14

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. hex. jam

3шт.

15

A42578

KNOB

- switch

3шт.

17

A42577

CONTROL

CABLE - defroster control

1шт.

18

A42614

CABLE

- heater control, Includes: Ref. 19 and 20

1шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

20

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C. hex.

1шт.
