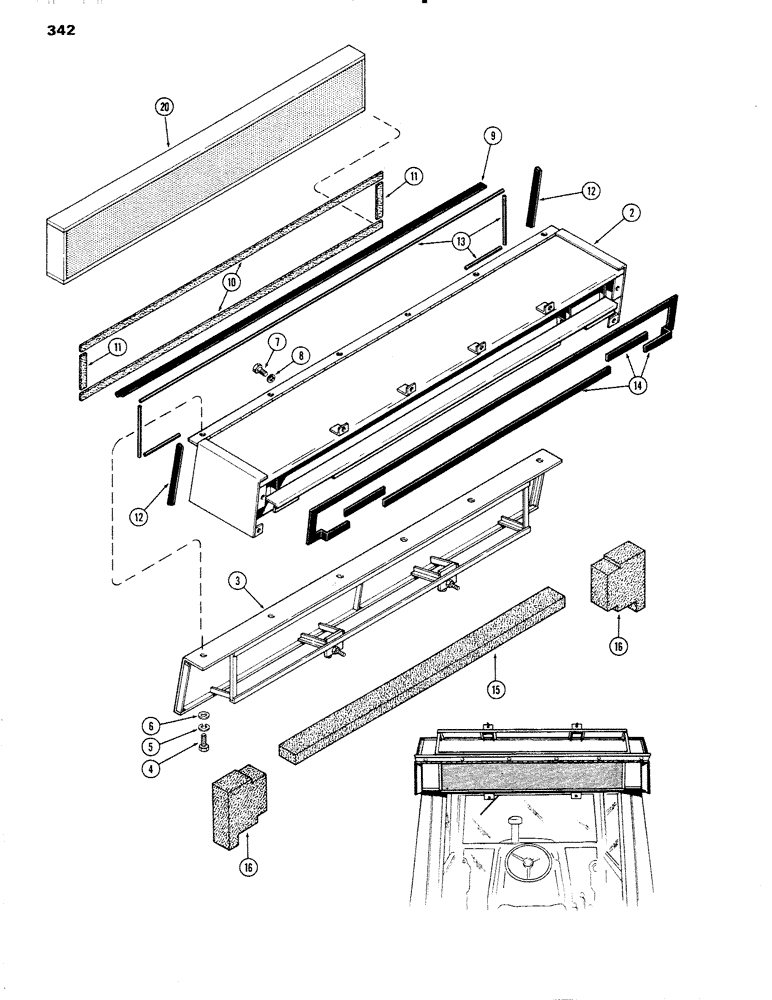

Запчасти Case IH 1090 (342) - CAB, AIR FILTER ATTACHMENT, HINSON (09) - CHASSIS/ATTACHMENTS

A62486

AIR FILTER ATT. - rear, cab (Mach. Item), Includes: Ref. 2 - 16

1шт.

2

A62487

CLEANER ASSY. - air

1шт.

3

A62505

HOOD ASSY. - cleaner

1шт.

4

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

6шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

6

195-102

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

6шт.

7

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" self tapping

8шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

9

A62512

SEAL - hood

1шт.

10

A62943

SEAL

- filter, 1/2 x 1/8 x 38" (Replaces A62513)

2шт.

11

A62942

SEAL

- filter, 1/2 x 3/16 x 4-5/16" (Replaces A62514)

2шт.

12

A62515

MOLDING - cleaner

2шт.

13

345-18

BEAD - weatherseal (3/16" x 30")

4шт.

14

345-26

BEAD - weatherseal (3/4" x 60")

2шт.

15

A62678

FOAM - top, air sealing

1шт.

16

A62679

FOAM - side, air sealing

2шт.

345-23

ADHESIVE

- (For Ref. 9 thru 12) (1 pt.)

1шт.

20

NLS

NO LONGER SERVICED

ELEMENT - filter

1шт.
