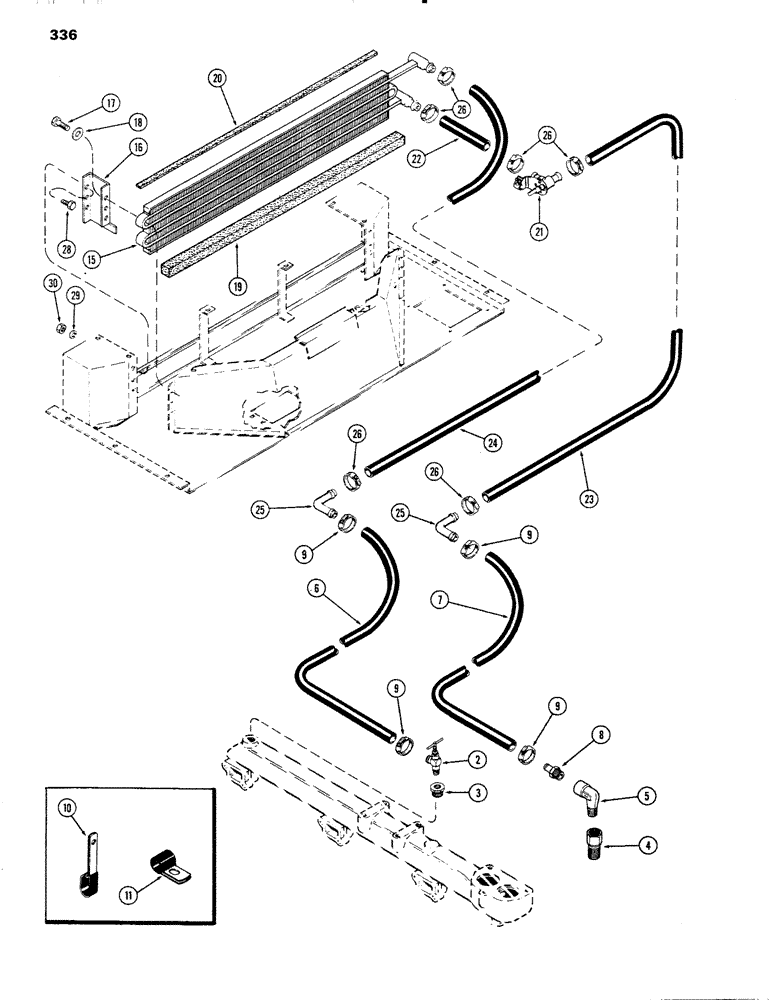

Запчасти Case IH 1090 (336) - CAB, PLENUM, WITH HEATER, HINSON (09) - CHASSIS/ATTACHMENTS

A60153

HEATER ATT. - (Mach. Item), Includes: Ref. 2 - 26

1шт.

A60125

BUNDLE - heater attaching parts (Mach. Item), Includes: Ref. 2 - 11

1шт.

2

A16764

VALVE

- water manifold

1шт.

3

221-1056

BUSHING

- reducing, 1/2" to 3/8" (at water manifold)

1шт.

4

221-60

TUBE

BUSHING - reducing, 3/4" to 1/2" (at water pump)

1шт.

5

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 1/2" P.T. 90 deg. (at water pump)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - heater to water manifold (43" lg.)(Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump (46" lg.)(Order A42610)

1шт.

8

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump, 5/8" hose x 1/2" P.T.

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

4шт.

10

A60824

CLIP

- hose

1шт.

11

R14668

CLAMP

CLIP - hose (2 w/gas & 1 w/diesel)

2шт.

15

A42611

CORE

- heater

1шт.

16

A42612

FILLER

- R.H., plenum

1шт.

16

A42613

FILLER

- L.H., plenum

1шт.

17

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

18

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 1/32"

3шт.

19

A42912

FOAM -, Serial Range: core-plenum

1шт.

20

A429052

FOAM - core top (1/8" x 1/2" soft. roll)

1шт.

21

A42609

VALVE

- heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater (7-1/2")(Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - heater (72" lg.)(Order A42610)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater (78" lg.)(Order A42610)

1шт.

25

A60823

ELBOW

- hose

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

6шт.

A42614

CABLE

- heater control (See Figures: 344, 346, 348 & 350)

1шт.

NSS

NOT SOLD SEPARAT

DECAL - instrument panel

1шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

30

9635082

NUT,5/16" - 18, Gr 5

6шт.

A42610

LARGE HOSE

HOSE - heater (5/8" I.D. x 1" O.D. soft roll)

1шт.
