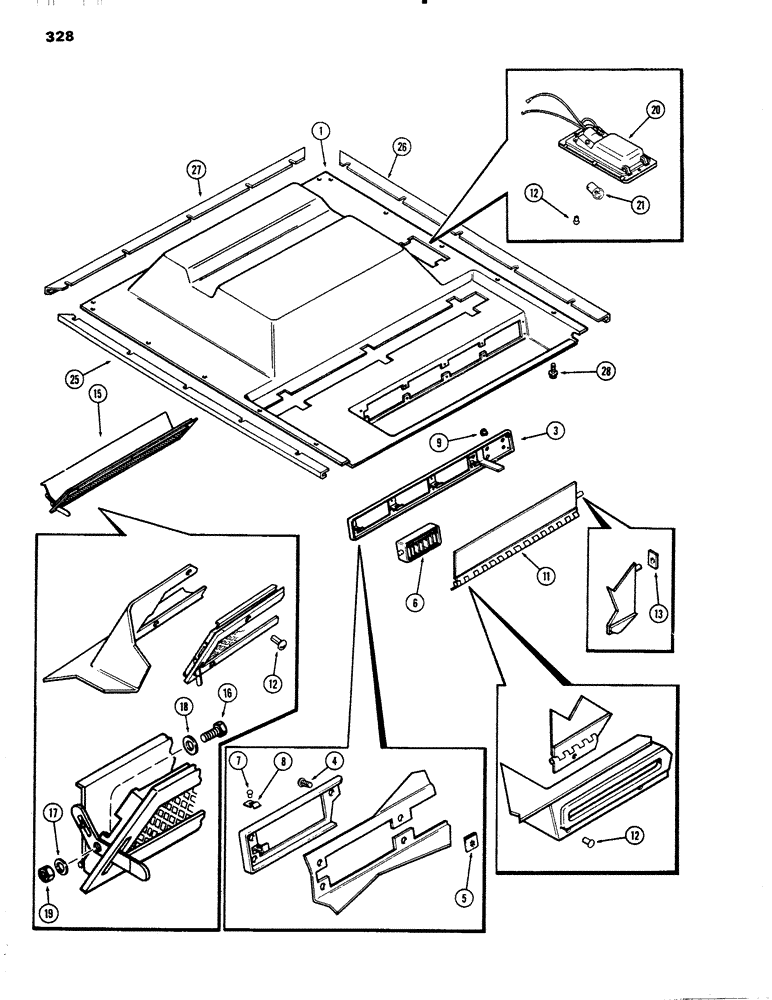

Запчасти Case IH 1090 (328) - CAB, HEADLINER, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42533

HEADLINER - cab (molded)

1шт.

3

A42641

PANEL

- instrument

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10 - 24 x 3/4" rd. hd.

10шт.

5

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

6

A42574

DEFLECTOR

- air

3шт.

7

NSS

NOT SOLD SEPARAT

RIVET - pop, air deflector

6шт.

8

A42575

CLIP

- air deflector

6шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

Panel (w/o heater) Dome, .437" hole, Nylon

2шт.

11

A42550

DEFLECTOR - defroster

1шт.

12

151-526

RIVET,Pop, 1/8" x .337"

12шт.

13

131-625

NUT,Ret, 3/8"-16

- speed, 3/16" Tinnerman

1шт.

15

A42690

AIR RETURN - headliner, Includes: Ref. 16 - 19

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

17

195-102

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

1шт.

18

A42691

WASHER - spring

1шт.

19

131-48

LOCK NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. hex.

1шт.

20

A42658

INTERIOR LIGHT

LIGHT ASSY. - dome, Includes: Ref. 21

1шт.

21

A41742

BULB

- dome light (#89)

1шт.

25

A42686

ORNAMENTAL STRIP

TRIM - R.H., headliner

1шт.

26

A42687

ORNAMENTAL STRIP

TRIM - L.H., headliner

1шт.

27

A42685

ORNAMENTAL STRIP

TRIM - rear, headliner

1шт.

28

NLS

NO LONGER SERVICED

- #10 x 9/16" hex. hd. self tapping

19шт.
