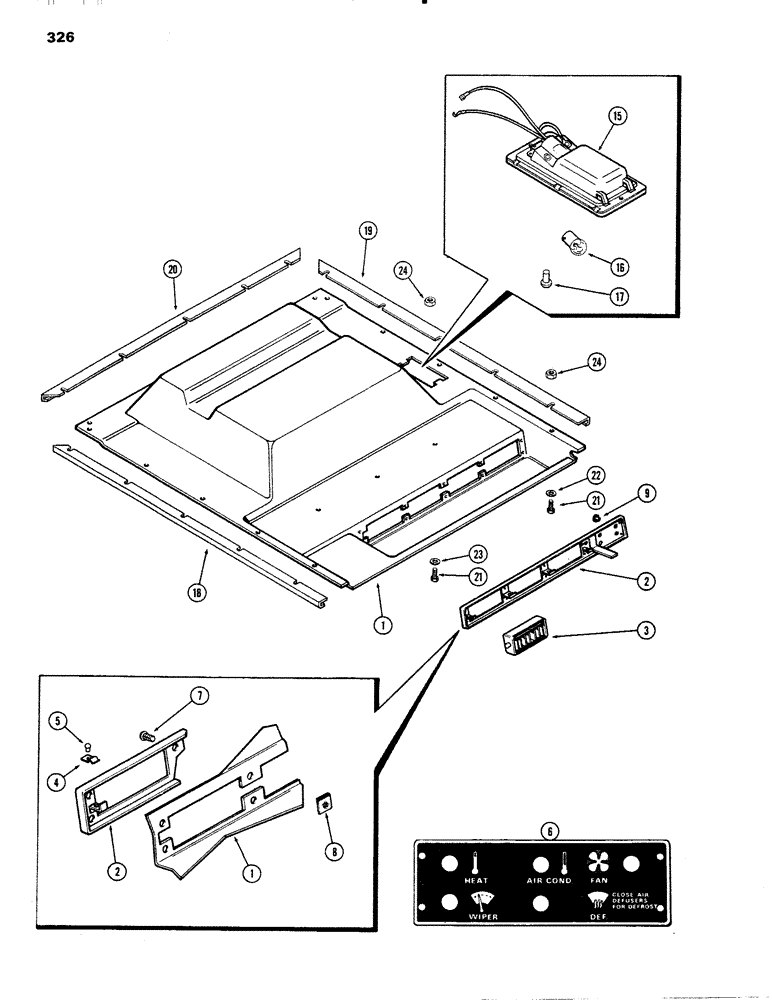

Запчасти Case IH 1090 (326) - CAB, HEADLINER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

F89664

CAB

HEADLINER ASSY. - cab, Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

F63326

PROTECTIVE COVER

COVER - headliner, acoustical (See Figure: 322)

1шт.

2

A42641

PANEL

ASSY. - instrument, Includes: Ref. 3 - 6

1шт.

3

F89673

GUARD

LOUVER - instrument panel

3шт.

4

A42575

CLIP

- louver mounting

6шт.

5

151-502

RIVET,Pop, 1/8" x 5/16"

- pop

6шт.

6

321-1914

DECAL

- instrument panel

1шт.

7

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 - 24 x 3/4" Phillips hd.

10шт.

8

131-146

NUT

- #10 - 24 "U" type Tinnerman

10шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

Switch holes Dome, .437" hole, Nylon

1шт.

15

A42658

INTERIOR LIGHT

LIGHT ASSY. - dome, Includes: Ref. 16

1шт.

16

A41742

BULB

- dome light (#89)

1шт.

17

151-502

RIVET,Pop, 1/8" x 5/16"

- pop

2шт.

18

F63270

ORNAMENTAL STRIP

TRIM - headliner, R.H.

1шт.

19

F63271

ORNAMENTAL STRIP

TRIM - headliner, L.H.

1шт.

20

F63276

ORNAMENTAL STRIP

TRIM - headliner, rear

1шт.

21

163-13

SCREW,Hex, #10 - 24 x 3/4"

- #10 - 24 x 3/4" hex.

18шт.

22

195-512

WASHER,#10

- plain, 7/32 x 7/16 x 1/16"

18шт.

23

195-102

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

3шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

18шт.
