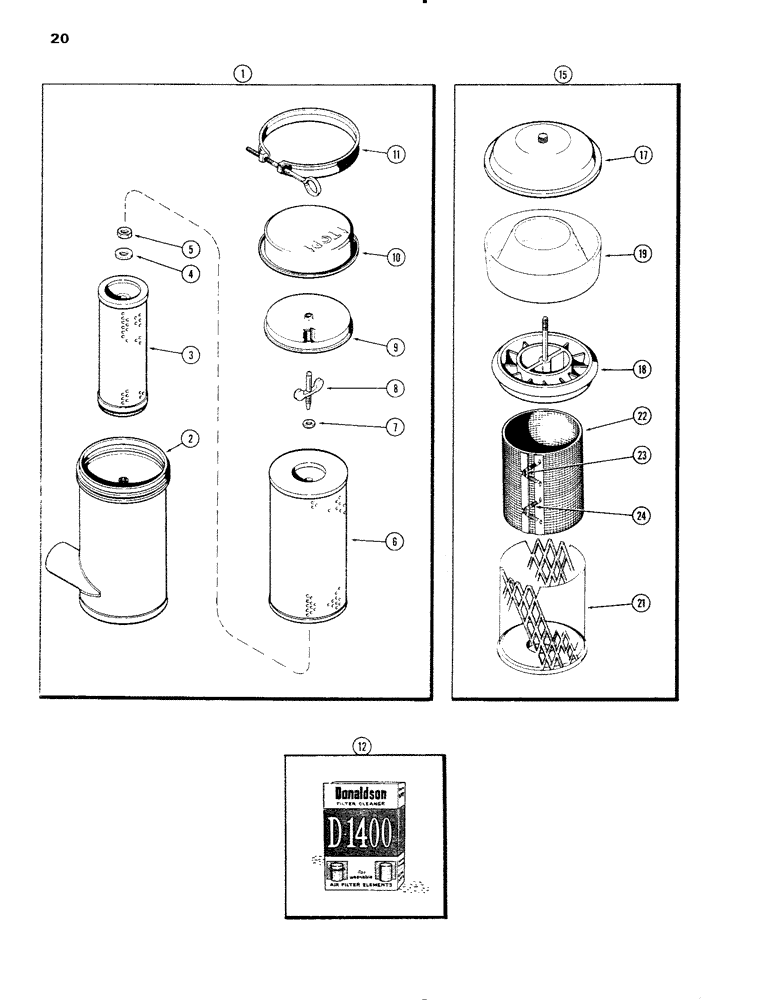

Запчасти Case IH 1090 (020) - AIR CLEANER, (451B) DIESEL ENGINE (02) - ENGINE

1

A61525

CLEANER ASSY. - air, Includes Ref: 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air filter

1шт.

3

A42759

ELEMENT

- safety inner

1шт.

4

A42760

WASHER - safety sealing

1шт.

5

131-68

LOCK NUT,5/8"-18

NUT - 5/8" N.C. hex., jam

1шт.

6

A42758

ELEMENT

- filter primary

1шт.

7

A42755

WASHER

- primary sealing

1шт.

8

A42756

WING BOLT - element retainer

1шт.

9

A42757

LEVER

PLATE - element louver

1шт.

10

A42753

BOWL - dust collecting

1шт.

11

A42754

CLAMP - bowl

1шт.

12

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

15

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - pre-screener, Includes Ref: 17 - 24

1шт.

A42466

CLEANER

COLLECTOR ASSY. - pre-cleaner, Includes Ref: 17 - 19

1шт.

17

A42465

COVER

- pre-cleaner

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - collector

1шт.

19

A42467

HOUSING

BODY - collector

1шт.

A42284

SCREEN

PRE-SCREENER, Includes Ref: 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - pre-screener

1шт.

22

A42286

SCREEN

- pre-screener

1шт.

23

A22781

CLIP

- spring retainer

2шт.

24

A22780

SPRING

- screen retaining

4шт.
