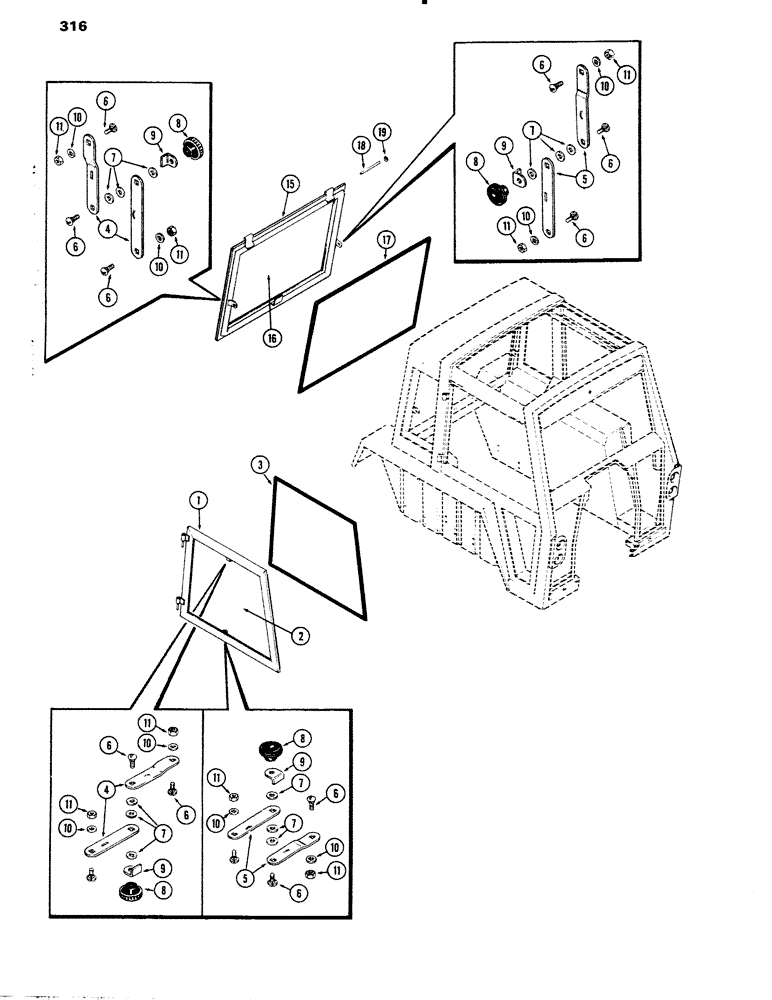

Запчасти Case IH 1090 (316) - CAB, WINDOWS, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42558

WINDOW ASSY. - R.H., Includes: Ref. 2 and 3

1шт.

2

REF

INSTRUCTION

GLASS - (Order from Fig. 376)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - weather (Order A42504)

1шт.

A42504X

FILLING STRIP

SEAL - weather (50' roll)

1шт.

4

A42926

ARM

ASSY. - upper

2шт.

5

A42927

ARM

ASSY. - lower, Includes: Ref. 6 - 9

2шт.

6

A42923

CARRIAGE BOLT

BOLT - adjusting knob

3шт.

7

F63299

WASHER

- friction

3шт.

8

A42918

KNOB

- adjusting

1шт.

9

F63665

CLIP

BRACKET - stop

1шт.

10

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 3/32"

8шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16"

8шт.

15

A42556

WINDOW ASSY. - rear, Includes: Ref. 16 and 17

1шт.

16

REF

INSTRUCTION

GLASS - (Order from Fig. 376)

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - weather (Order A42504)

1шт.

A42504

TYRE/TIRE

SEAL - weather (50' roll)

1шт.

18

A42524

PIN,9.53mm OD x 119.38mm L

- hinge, rear window

2шт.

19

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

2шт.
