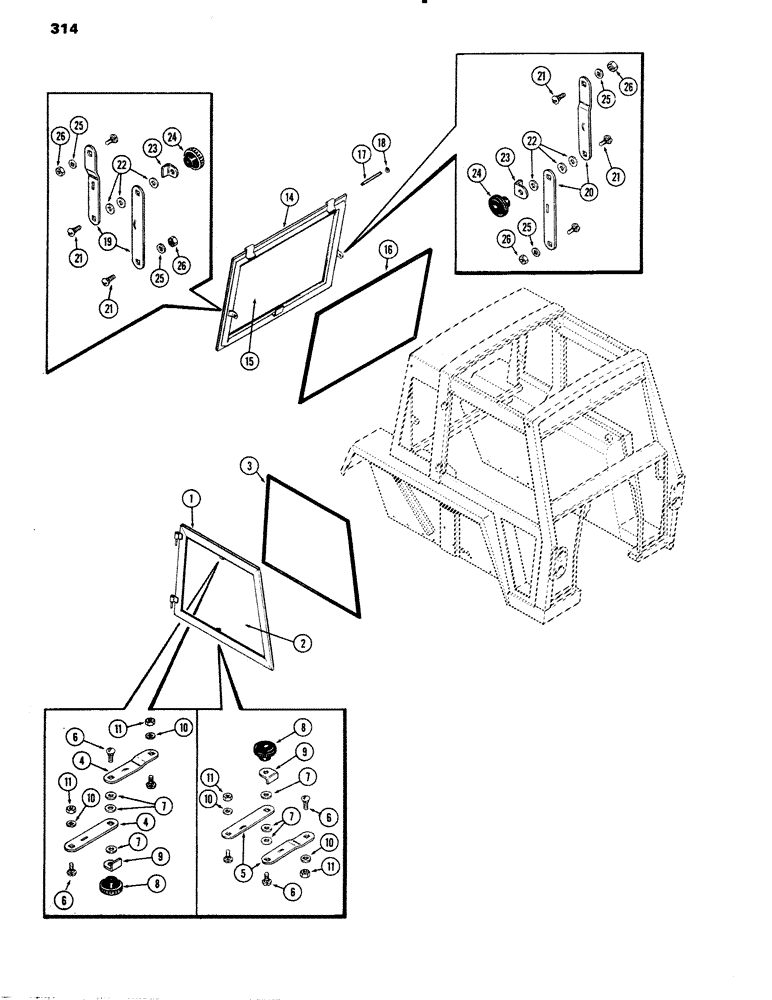

Запчасти Case IH 1090 (314) - CAB, WINDOWS, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89672

WINDOW

ASSY. - R.H., Includes: Ref. 2 and 3

1шт.

2

REF

INSTRUCTION

GLASS - (Order from Fig. 374)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - weather, 134-5/8" (Order A42504)

1шт.

A42504X

FILLING STRIP

SEAL - weather (50' roll)

1шт.

4

A42926

ARM

ASSY. - window, upper (Incl. Ref. 6, 7, 8 & 9)

1шт.

5

A42927

ARM

ASSY. - lower, Includes: Ref. 6 - 9

1шт.

6

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. rd. hd. sq. nk.

3шт.

7

F63299

WASHER

- friction

3шт.

8

A42918

KNOB

- regulator

2шт.

9

F63665

CLIP

BRACKET - stop

1шт.

10

195-80

WASHER - plain, 3/8 x 1-1/8 x 1/16"

4шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" N.C.

4шт.

14

F89790

WINDOW

ASSY. - rear, Includes: Ref. 15 and 16

1шт.

15

REF

INSTRUCTION

GLASS - (Order from Figure 374)

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - weather, 150-17/64" (Order A42504)

1шт.

A42504

TYRE/TIRE

SEAL - weather (50' roll)

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

- hinge, rear window

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

19

F63203

ARM

ASSY. - R.H., rear window

1шт.

20

F63280

ARM

ASSY. - L.H., rear window, Includes: Ref. 21 - 23

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. rd. hd. sq. nk.

3шт.

22

F63299

WASHER

- friction

3шт.

23

F63665

CLIP

BRACKET - stop

1шт.

24

A42918

KNOB

- regulator

2шт.

25

195-80

WASHER - plain, 3/8 x 1-1/8 x 1/16"

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" N.C.

4шт.
