Запчасти Case IH 1090 (310) - CAB, DOOR, BETTENDORF (09) - CHASSIS/ATTACHMENTS

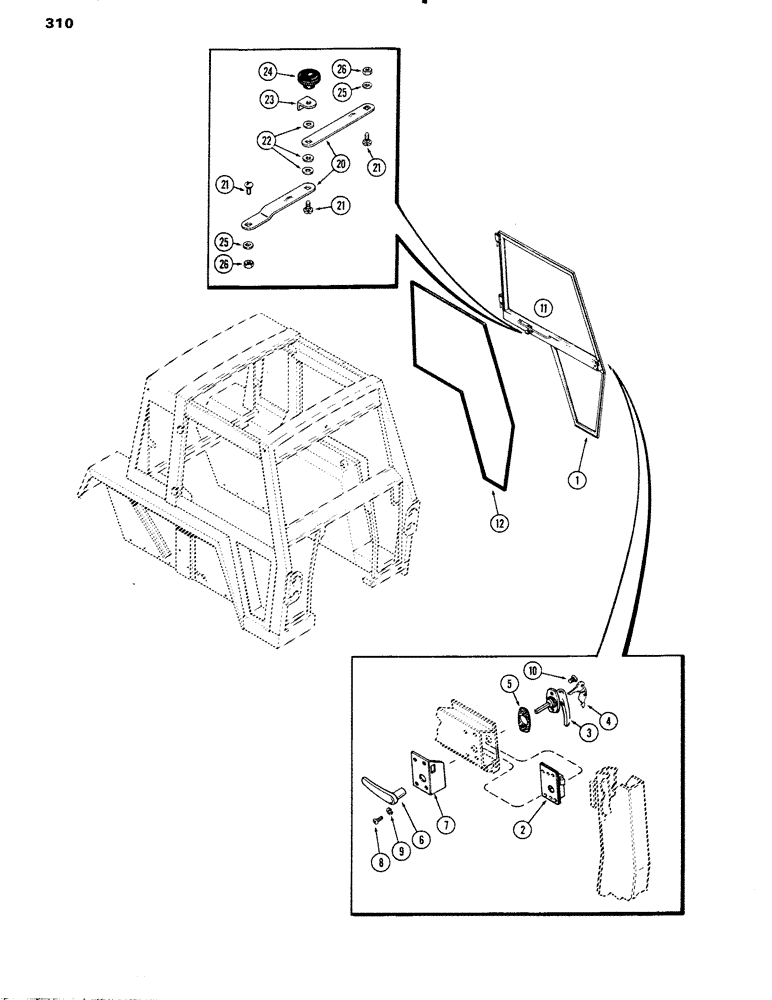

Схема запчастей Case IH 1090 - (310) - CAB, DOOR, BETTENDORF (09) - CHASSIS/ATTACHMENTS
9
11
6
1
3
7
10
25
21
8
4
5
25
24
23
26
26
21
12
21
22
20
2

Артикул

Название

Примечание

Количество

1

F89671

DOOR

ASSY. - cab, Includes: Ref. 2 - 12

1шт.

2

F89710

LOCK

- door handle

1шт.

3

A42572

HANDLE

- door, outside

1шт.

4

A42653

SET OF 2 KEYS

KEYS - door lock

2шт.

5

A42913

GASKET

- door handle

1шт.

6

A42588

HANDLE

- door, inside

1шт.

7

A42674

COVER

- door latch

1шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10 - 24 x 5/8" Phillips hd.

2шт.

11

REF

INSTRUCTION

GLASS - (Order from Figure 374)

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - weather, 180-1/2" (Order A42504)

1шт.

A42504

TYRE/TIRE

SEAL - weather (50 ft. roll)

1шт.

20

F63203

ARM

ASSY. - door, Includes: Ref. 21 - 23

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. rd. hd. sq. nk.

3шт.

22

F63299

WASHER

- friction

3шт.

23

F63665

CLIP

BRACKET - stop

1шт.

24

A42918

KNOB

- regulator

1шт.

25

195-80

WASHER - plain, 3/8 x 1-1/8 x 1/16"

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" N.C. hex.

2шт.

Выбрано товаров: 20
