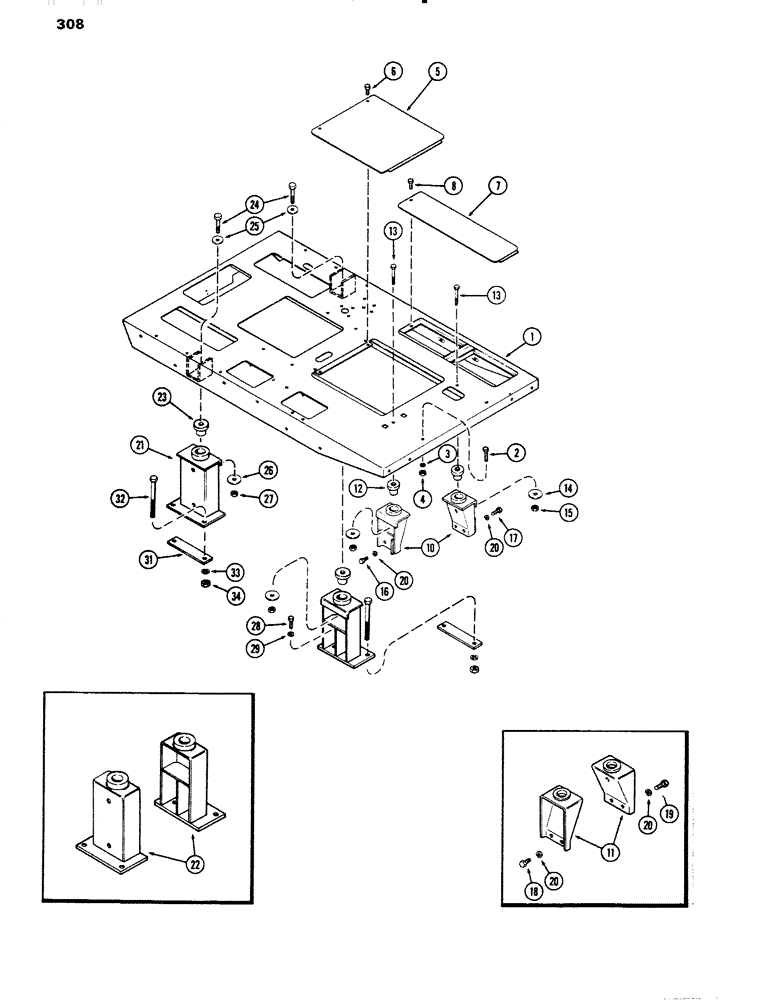

Запчасти Case IH 1090 (308) - CAB, PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A62703

LARGE PLATE

DESK ASSY. - platform (Replaces A62217)

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

5

A61175

COVER ASSY. - platform

1шт.

6

121-109

SCREW - 5/16 x 1/2" N.C. self-locking

2шт.

7

A59507

GUARD

COVER ASSY. - battery

1шт.

8

121-109

SCREW - 5/16 x 1/2" N.C. self-locking

1шт.

10

A62652

MOUNTING PARTS

MOUNT ASSY. - front, platform (1st used tractor SN8675001)

2шт.

11

A59510

BRACKET

MOUNT ASSY. - front, platform (Used prior to tractor SN8675001)

2шт.

12

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT - rubber, front

2шт.

13

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

14

195-36

WASHER

- plain, 9/16 x 1-7/8 x 1/8"

2шт.

15

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

16

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

w/A62652 mount Hex, 1/2"-13 x 1 5/8", G5

2шт.

17

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

w/ A62652 mount Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/A59510 mount Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

w/A59510 mount Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

A64408

PLATFORM

MOUNT ASSY. - rear, platform (Replaces A62656) (1st used tractor SN8675001)

2шт.

22

A60870

MOUNT ASSY. - rear, platform (Used prior to tractor SN8675001)

2шт.

23

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - rubber, rear

2шт.

24

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

25

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

2шт.

26

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- plain (21/32 x 2-1/4 x 1/4")

2шт.

27

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

31

A60874

PLATE - rear mount

2шт.

32

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- 1/2 x 8-1/2" N.C. hex.

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.
