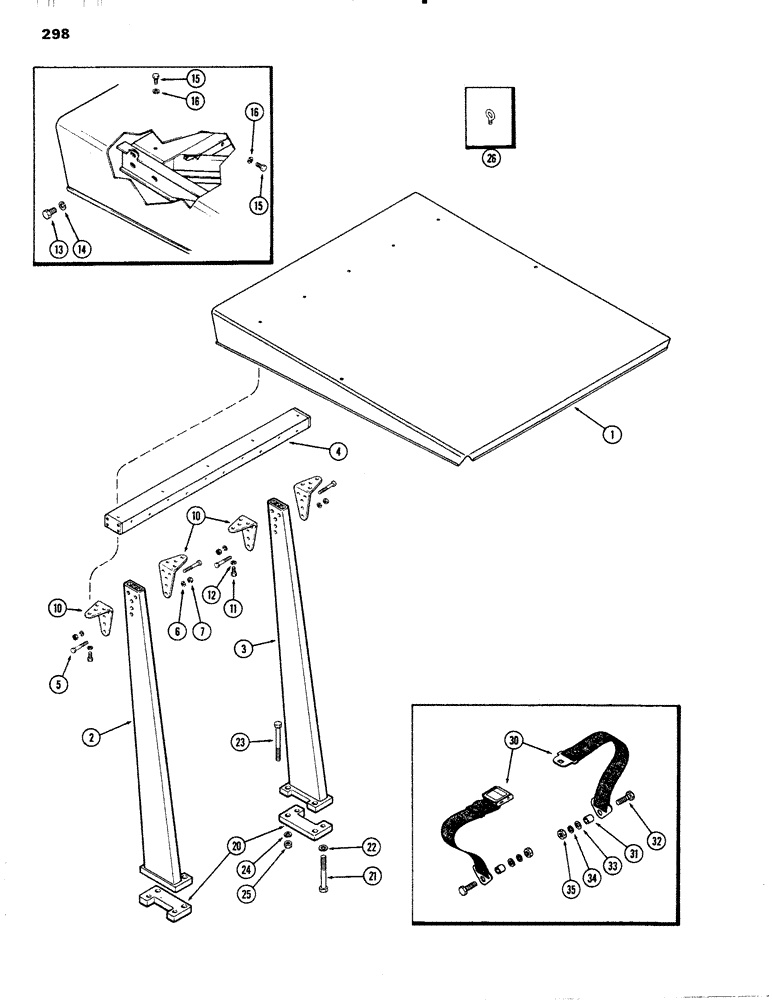

Запчасти Case IH 1090 (298) - PROTECTIVE FRAME AND CANOPY (09) - CHASSIS/ATTACHMENTS

A60900

ATTACHMENT - canopy (Mach. Item), Includes: Ref. 1 - 35

1шт.

1

A60910

CANOPY ASSY. - protective frame

1шт.

2

A60920

COLUMN ASSY. - protective frame, R.H.

1шт.

3

A60921

COLUMN ASSY. - protective frame, L.H.

1шт.

4

A60901

BEAM ASSY. - protective frame

1шт.

5

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

10шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

10

A60905

BRACKET - protective frame

4шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

15

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

15шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

15шт.

20

A60919

PLATE - protective frame, bottom

2шт.

21

113-904

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

- 1 x 8-1/2" N.C. hex.

4шт.

22

192-71

WASHER - lock, 1"

4шт.

23

113-803

BOLT,Hex, 7/8" - 9 x 9-1/2", Gr 5

- 7/8 x 9-1/2" N.C. hex.

4шт.

24

192-69

LOCK WASHER,7/8"

7/8"

4шт.

25

129-109

NUT,7/8"-9, G5

4шт.

26

A61066

BOLT - 1/2 x 2-1/2" N.C. eye

2шт.

30

A60906

BELT

SAFETY BELT

1шт.

31

A60907

BUSHING

SPACER - anchor, seat belt

2шт.

32

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

33

195-529

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

2шт.

A60553

CAP

- battery non-spill vent (See Figure: 68)

12шт.
