Запчасти Case IH 1090 (292) - STANDARD DECALS, USED PRIOR TO TRACTOR SERIAL NUMBER 8675001 (09) - CHASSIS/ATTACHMENTS

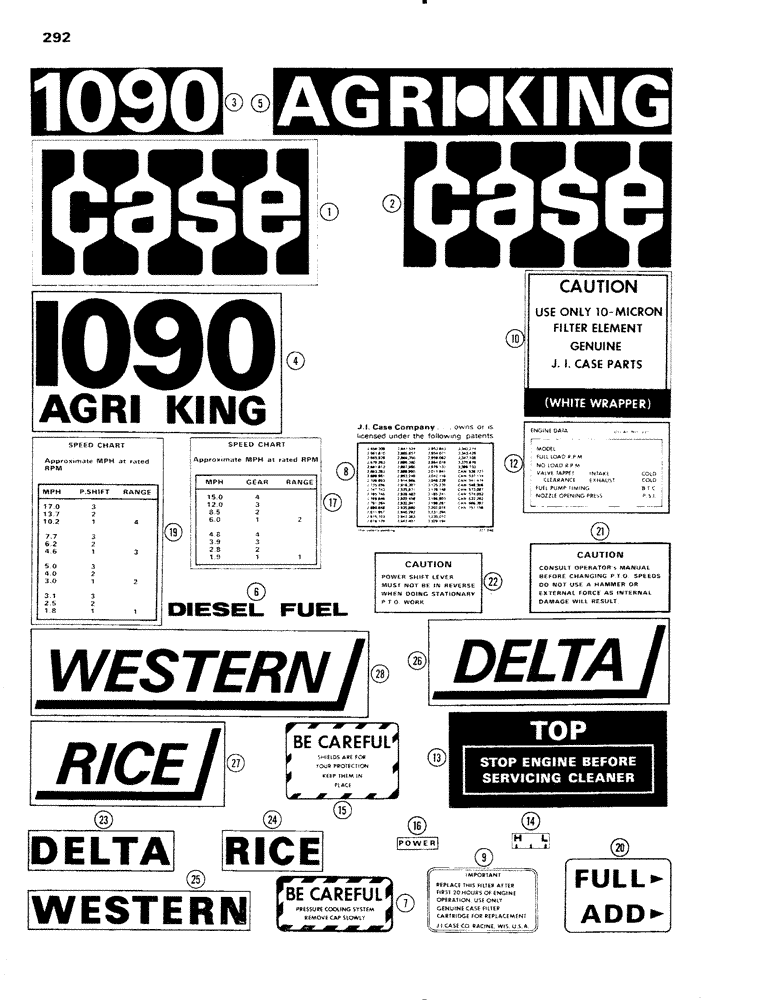

Схема запчастей Case IH 1090 - (292) - STANDARD DECALS, USED PRIOR TO TRACTOR SERIAL NUMBER 8675001 (09) - CHASSIS/ATTACHMENTS
12
14
26
16
2
13
9
27
19
21
28
25
20
24
5
7
17
1
22
6
15
4
10
23
3
8

Артикул

Название

Примечание

Количество

A43003

DECAL

KIT - 1090 Agri-King, Includes: Ref. 1 - 28

1шт.

1

321-1308

DECAL

- identification, "Case"

2шт.

2

321-1440

DECAL

- identification, "Case" (on fuel tank)

1шт.

3

321-1718

DECAL - "1090"

2шт.

4

321-1719

DECAL

- "1090 Agri-King"

1шт.

5

321-1391

DECAL

- "Agri-King"

2шт.

6

321-230

DECAL

- "Diesel Fuel"

1шт.

7

321-122

DECAL

- pressure, cooling system

1шт.

8

321-246

DECAL

- patents

1шт.

9

321-367

DECAL

- engine oil filter change

1шт.

10

321-1762

DECAL

- oil filter warning (10 Micron)

2шт.

12

321-1386

DECAL

- engine data

1шт.

13

321-1568

DECAL

- air cleaner

1шт.

14

321-1335

DECAL

- seat adjustment indicator

1шт.

15

321-608

DECAL

- "Be Careful", P.T.O.

1шт.

16

321-1623

DECAL

- "Power", brake

1шт.

17

321-1631

DECAL

- 8 speed

1шт.

19

321-1632

DECAL

- 12 speed

1шт.

20

321-1642

DECAL

- transmission, "Add-Full"

1шт.

21

321-1650

DECAL

- "Caution", P.T.O.

1шт.

22

321-1651

DECAL

- "Caution", power shift

1шт.

23

321-1720

DECAL "Delta"

1шт.

24

321-1721

DECAL

- "Rice"

1шт.

25

321-1722

DECAL

- "Western"

1шт.

26

321-1723

DECAL - "Delta"

2шт.

27

321-1724

DECAL

- "Rice"

2шт.

28

321-1725

DECAL

- "Western"

2шт.

Выбрано товаров: 27
