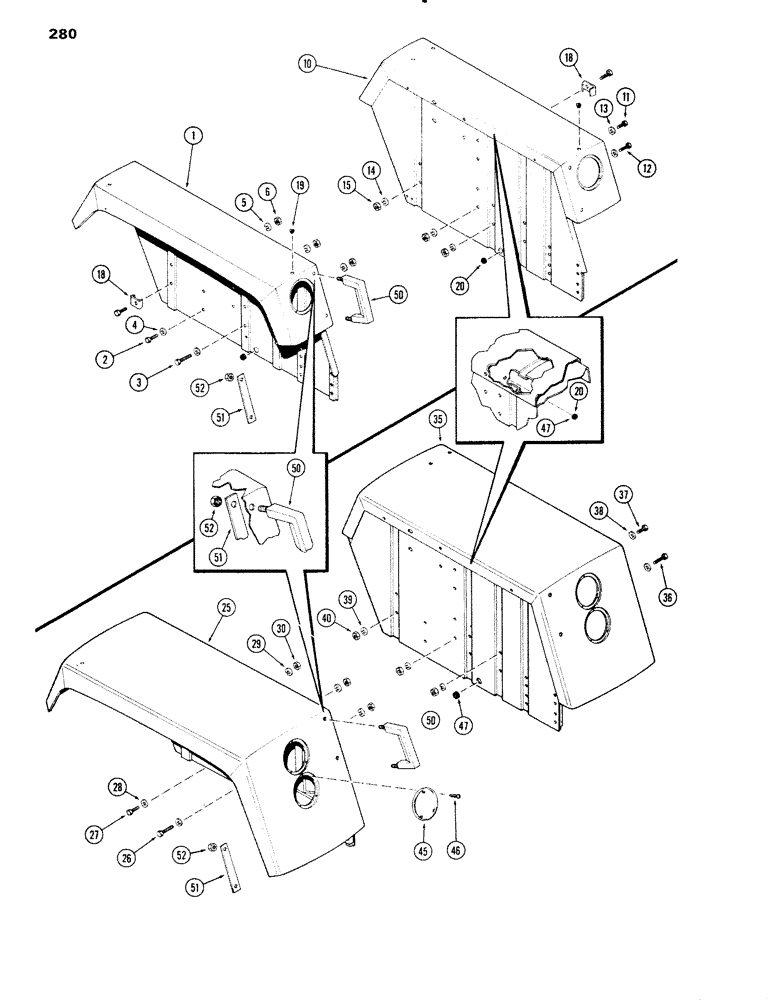

Запчасти Case IH 1090 (280) - FENDERS, 12 INCH FENDERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A62296
FENDER
ASSY. - 12", R.H. (Replaces A60730)
1шт.
2
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
3
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
5шт.
4
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32"
6шт.
5
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
6
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
6шт.
10
A62297
FENDER
ASSY. - 12", L.H. (Replaces A60731)
1шт.
11
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
12
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
1шт.
12
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
12
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
3шт.
13
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32"
6шт.
14
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
15
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
18
A59318
BRACKET
- fender side sheet mounting
4шт.
19
353-405
PLUG,Dome, .562" hole, Nylon
- 9/16" button (black nylon)
2шт.
20
A59722
GROMMET
- wire harness
2шт.
26
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
24" Fenders Hex, 3/8"-16 x 2 1/2", G5
5шт.
27
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
24" Fenders Hex, 3/8"-16 x 7/8", G5, Full Thd
1шт.
28
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 24" Fenders
6шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 24" Fenders 3/8"
6шт.
30
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 24" Fenders 3/8"-16, G5
6шт.
35
A62309
FENDER
ASSY. - 24", L.H. (Replaces A60781), 24" Fenders
1шт.
36
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
- 3/8 x 2-1/2" N.C. hex., 24" Fenders
3шт.
37
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/4" N.C. hex., 24" Fenders
2шт.
37
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
24" Fenders Hex, 3/8"-16 x 7/8", G5, Full Thd
1шт.
38
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 24" Fenders
6шт.
39
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 24" Fenders 3/8"
6шт.
40
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 24" Fenders 3/8"-16, G5
6шт.
45
A59330
COVER
- cultivator light opening, 24" Fenders
1шт.
46
187-1050
SCREW
- #10 x 1/2" N.C. type "T" tap, 24" Fenders
3шт.
47
A59722
GROMMET
- wire harness, 24" Fenders
2шт.
50
A60530
HANDLE
- R.H. & L.H.
2шт.
51
A59338
PLATE
- handle mounting
1шт.
52
230-4216
LOCK NUT,3/8"-16, GA
NUT, LOCK, , Handle 3/8"-16, GA
4шт.
77-610
BOLT (MACHINE)
SCREW - 3/8 x 5/8" N.C. sltd. truss hd.
2шт.
Used without handle
1шт.
92-6
LOCK WASHER,3/8"
2шт.
Used without handle
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
Used without handle
1шт.
Выбрано товаров: 41
