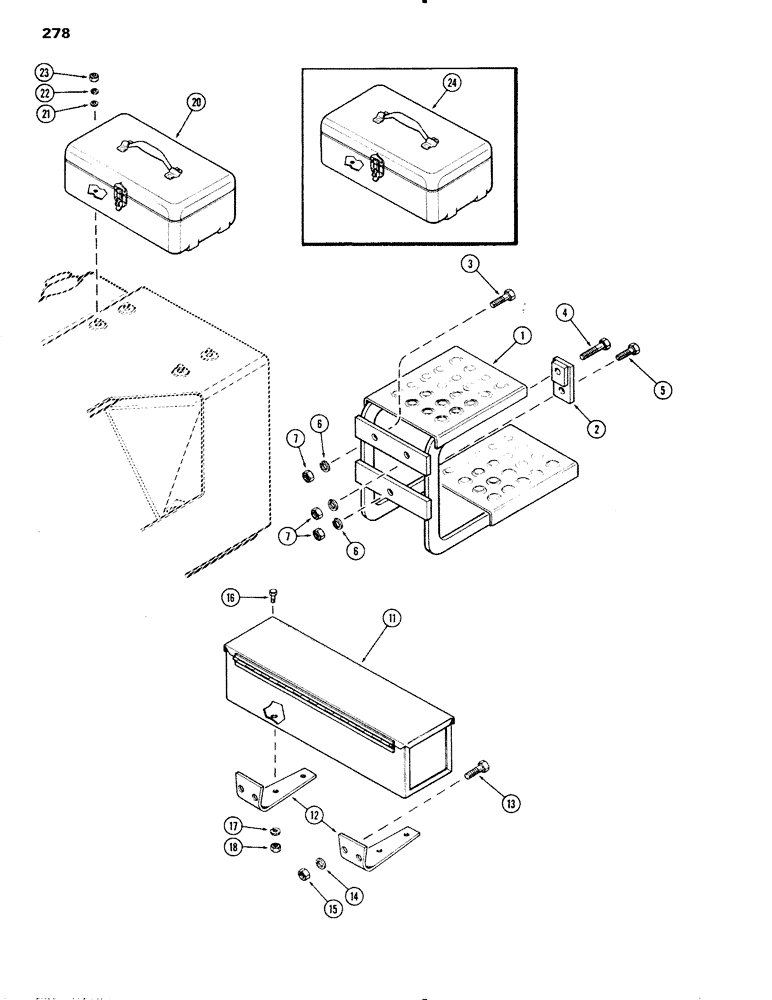

Запчасти Case IH 1090 (278) - STEPS (09) - CHASSIS/ATTACHMENTS

1

A61582

STEP ASSY. - R.H. & L.H.

2шт.

2

A61585

ADAPTER - step mounting

2шт.

3

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

4

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

2шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

6

92-8

LOCK WASHER,1/2"

8шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

8шт.

A61840

BOX, TOOL

ATTACHMENT - tool box (Mach. Item), Includes: Ref. 11 - 18

1шт.

11

A59844

BOX, TOOL

TOOL BOX ASSY. - step mounted

1шт.

12

A61568

SUPPORT

- tool box

2шт.

13

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Tool box Hex, 1/2"-13 x 1 7/8", G5

4шт.

14

92-8

LOCK WASHER,1/2"

tool box 1/2"

4шт.

15

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., tool box

4шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 7/8" N.C. hex., tool box

4шт.

17

92-5

LOCK WASHER,5/16"

tool box 5/16"

4шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. hex., lock, tool box

4шт.

20

A61174

BOX

- tool, platform mounted (w/o cab)

1шт.

21

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", tool box

4шт.

22

92-6

LOCK WASHER,3/8"

tool box 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., tool box

4шт.

24

A61788

BOX, TOOL

BOX - tool (w/cab)

1шт.
