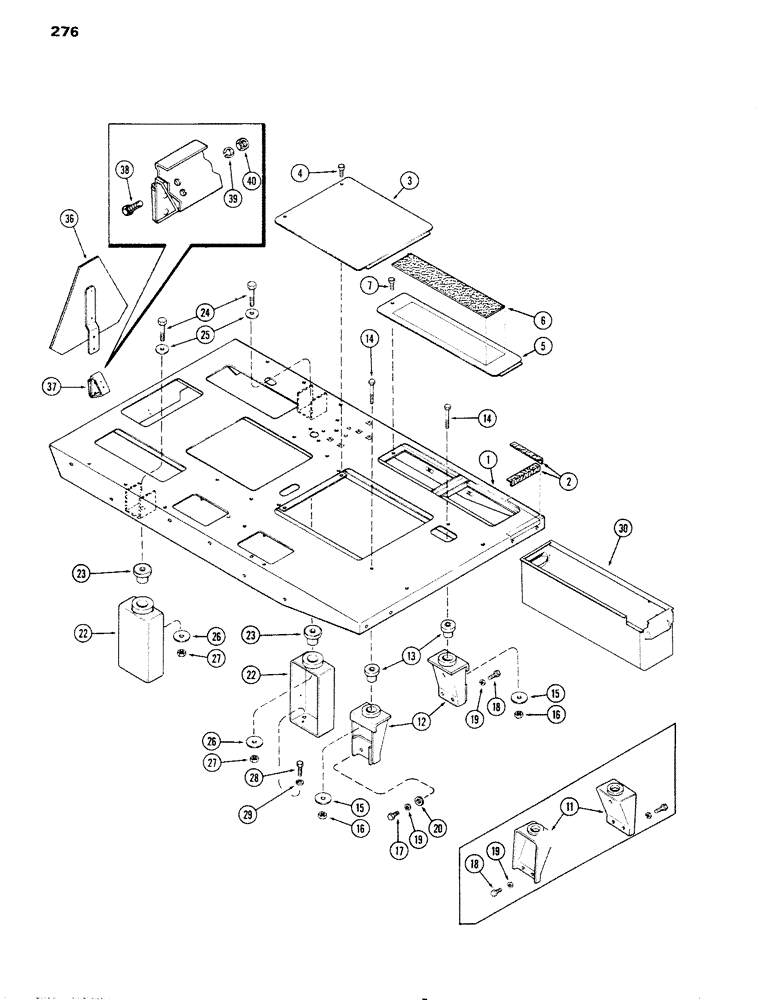

Запчасти Case IH 1090 (276) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A62703

LARGE PLATE

DECK ASSY. - platform (Replaces A62217)

1шт.

2

A62468

TREAD

- platform non-slip

2шт.

3

A61175

COVER ASSY. - platform

1шт.

4

121-109

SCREW - 5/16 x 1/2" N.C. self-lock

2шт.

5

A59507

GUARD

COVER ASSY. - battery

1шт.

6

A62469

COVER

TREAD - battery cover non-slip

1шт.

7

121-109

SCREW - 5/16 x 1/2" N.C. self-lock

1шт.

11

A59510

BRACKET

MOUNT - platform, front (Used prior to trac. SN8675001)

2шт.

12

A62652

MOUNTING PARTS

MOUNT - platform, front (1st used trac. SN8675001)

2шт.

13

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT - rubber, front

2шт.

14

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

15

D28899

WASHER

- plain (33/64 x 2 x 1/4")

2шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

17

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

18

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 1/8" (R.H. side)

2шт.

22

A60547

MOUNT ASSY. - platform, rear

2шт.

23

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - rubber, rear

2шт.

24

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

25

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

2шт.

26

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4"

2шт.

27

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

A62137

BOX

ASSY. - battery

1шт.

36

A59450

WARNING SIGN

EMBLEM ASSY. - slow moving vehicle

1шт.

37

A60977

BRACKET

ASSY. - emblem mounting, SMV

1шт.

38

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SMV emblem Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , SMV emblem 1/4"

2шт.

40

25-104

NUT,1/4"-20, G5

SMV emblem 1/4"-20, G5

2шт.
