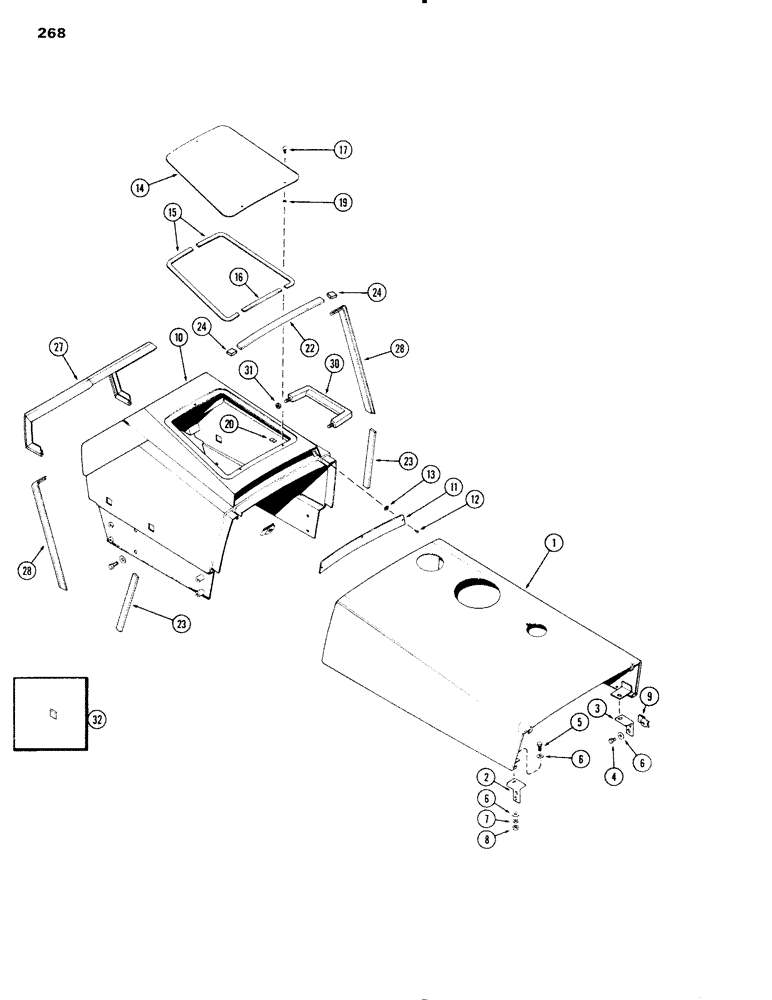

Запчасти Case IH 1090 (268) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A60960

HOOD ASSY. - front

1шт.

2

A62742

BRACKET

- front hood to grille, R.H.

1шт.

3

A62743

BRACKET

- front hood to grille, L.H.

1шт.

4

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

N.C. Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

9

131-616

NUT,Ret, J, 5/16"-18

- 5/16" N.C. Type "J", Tinnerman

4шт.

10

A61640

HOOD

ASSY. - rear (Replaces A60965), Includes: Ref. 11

1шт.

11

A64876

COVER

- rear hood (Replaces A59395)

1шт.

12

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6 - 32 x 1/2 " pan hd., phillips

3шт.

13

131-618

NUT

- Tinnerman

3шт.

14

A59391

COVER

- hood access

1шт.

15

A59400

SEAL

- hood access cover, outer

2шт.

16

A59401

SEAL

- hood access cover, center

1шт.

17

A61044

STUD

- wing head, rear hood cover

3шт.

19

A61045

RETAINER

- stud, rear hood cover

3шт.

20

A61046

CLIP

RECEPTACLE CLIP - rear hood cover

3шт.

22

A59406

SEAL

- rear hood center

1шт.

23

A59408

SEAL

- rear hood, outer

2шт.

24

A62122

SEAL

- rear hood, upper

2шт.

27

A64864

GUARD

MOLDING - rear hood & inst. panel (Replaces A60939)

1шт.

28

A64865

SEAT

MOLDING - rear hood lower (Replaces A60940 & A60941)

2шт.

30

A60530

HANDLE

- R.H. & L.H.

2шт.

31

230-4216

LOCK NUT,3/8"-16, GA

NUT, LOCK, , Handle 3/8"-16, GA

4шт.

32

A59366

PLUG

- handle hole (used w/o handle) (Standard)

4шт.

32

A62811

PLUG

- handle hole (used w/o handle) (Demonstrator)(Black)

4шт.
