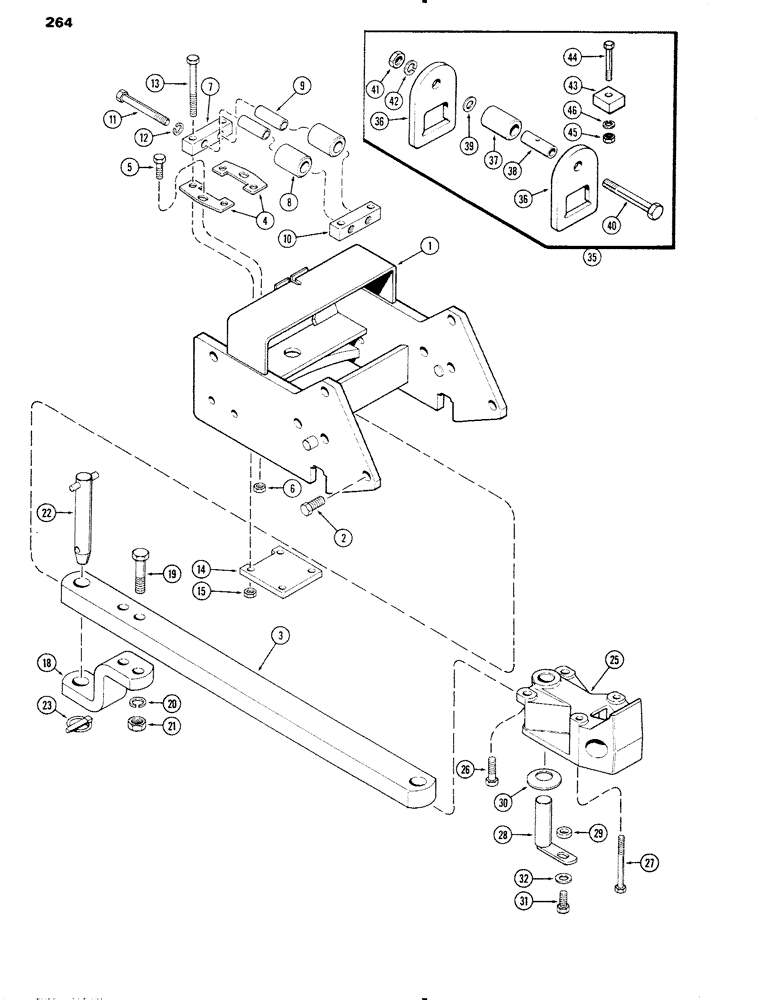

Запчасти Case IH 1090 (264) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

1

A61887

SUPPORT ASSY. - drawbar

1шт.

2

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex.

8шт.

3

A61534

DRAWBAR

- (46-1/4" long)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - drawbar locking (Order ref. 35)

2шт.

5

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

6

25-1010

NUT,5/8"-11, G5

2шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - drawbar roller, front (Order ref. 35)

1шт.

8

A61545

ROLLER

- drawbar

2шт.

9

A61544

SLEEVE

- roller

2шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - drawbar roller, rear (Order ref. 35)

1шт.

11

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" N.C. hex.

2шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

13

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8 x 6-1/2" N.C. hex.

4шт.

14

NSS

NOT SOLD SEPARAT

PLATE - drawbar lower (Order ref. 35)

1шт.

15

131-269

NUT - 5/8" N.C. hex. self locking

4шт.

18

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

19

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

21

25-1012

NUT,3/4"-10, G5

2шт.

22

A61558

PIN

ASSY. - drawbar, Includes: Ref. 23

1шт.

23

A61560

LOCK PIN

PIN - klik

1шт.

25

A61416

BRACKET

- drawbar pivot pin

1шт.

26

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex.

2шт.

27

113-675

BOLT - 5/8 x 5-1/2" N.C. hex.

2шт.

28

A61548

PIN

ASSY. - drawbar pivot

1шт.

29

A61551

SPACER - pivot pin

1шт.

30

A61541

WASHER - anti-rattle spring

1шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

32

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

35

A64432

KIT

- drawbar single roller, Includes: Ref. 36 - 46

1шт.

36

A64426

BRACKET

- drawbar hanger

2шт.

37

A61545

ROLLER

- drawbar

1шт.

38

A61544

SLEEVE

- roller

1шт.

39

A64427

SPACER

- drawbar roller

2шт.

40

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" N.C. hex.

1шт.

41

25-1012

NUT,3/4"-10, G5

1шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

A64428

BLOCK

- drawbar

2шт.

44

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

45

25-1010

NUT,5/8"-11, G5

2шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
