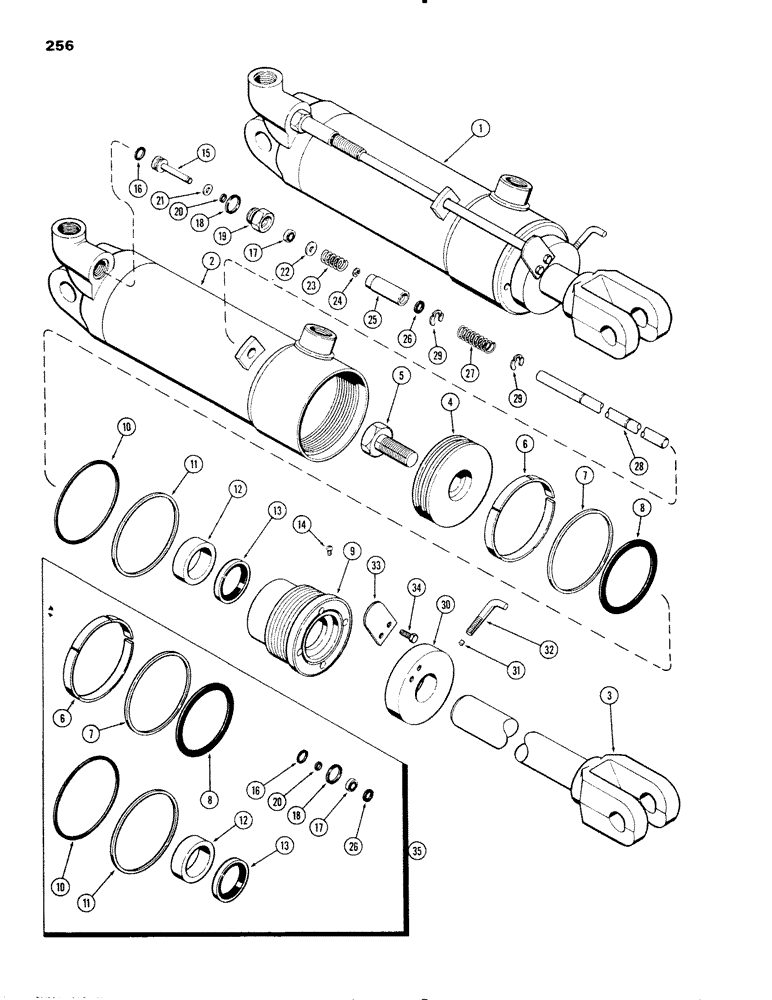

Запчасти Case IH 1090 (256) - G33769 REMOTE HYD CYL 4X8 W/HYD LIMIT STOP W/GLAN IDENTIFICATION GROOVE 1ST USED TRAC. S/N 8875001 (08) - HYDRAULICS

1

G33769

CYLINDER

ASSY. - hydraulic (Replaces G31945 or A34923), Includes: Ref. 2 - 34

1шт.

2

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

3

G33772

ROD

- piston

1шт.

4

G33774

PISTON

- cylinder

1шт.

5

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G31927

RING

- wear, piston (nylon)

1шт.

Part of Cylinder Repair Kit G31946

1шт.

7

G31928

RING

- seal piston (Teflon)

1шт.

Part of Cylinder Repair Kit G31946

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - piston (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

9

G33775

GLAND - packing, piston rod (w/identification groove)

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - packing (4 x 4-1/4 x 1/8")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Kit G31946

1шт.

12

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

13

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

SCRAPER - piston rod (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 x 1/4" rd. hd. self-tapping

1шт.

15

G31943

PLUNGER

- valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING - plunger (27/64 x 5/8 x 3/32")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

17

G31932

WIPER SEAL

SEAL - wiper (3/16 x 1/2 x 1/8")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

19

G31933

GLAND

ASSY. - valve, Includes: Ref. 20 and 21

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - (11/64 x 3/8 x 7/64")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

21

G31948

WASHER

- (13/64 x 13/32 x 1/16")

1шт.

22

G31929

WASHER

- spring (7/32 x 5/8 x 1/16")

1шт.

23

G31980

SPRING

- plunger return

1шт.

24

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

25

G32427

SLEEVE

- protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

"O" RING - sleeve (7/16 x 9/16 x 1/16")

1шт.

Part of Cylinder Repair Kit G31946

1шт.

27

G31934

SPRING

- rod return

1шт.

28

G32428

ROD

- push

1шт.

29

G32429

RING

- retaining, stop collar

2шт.

30

G32074

COLLAR

- stop

1шт.

31

G32076

PLUG

- locking

1шт.

32

G32077

BOLT

- hook

1шт.

33

G32075

PLATE

- stop

1шт.

34

187-1513

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" hex. self-tapping

2шт.

35

G31946

KIT

- cylinder repair, includes Refs. 6, 7, 8, 10, 11, 12, 13, 16, 17, 18, 20 and 26

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

Part of Cylinder Repair Kit G31946

1шт.
