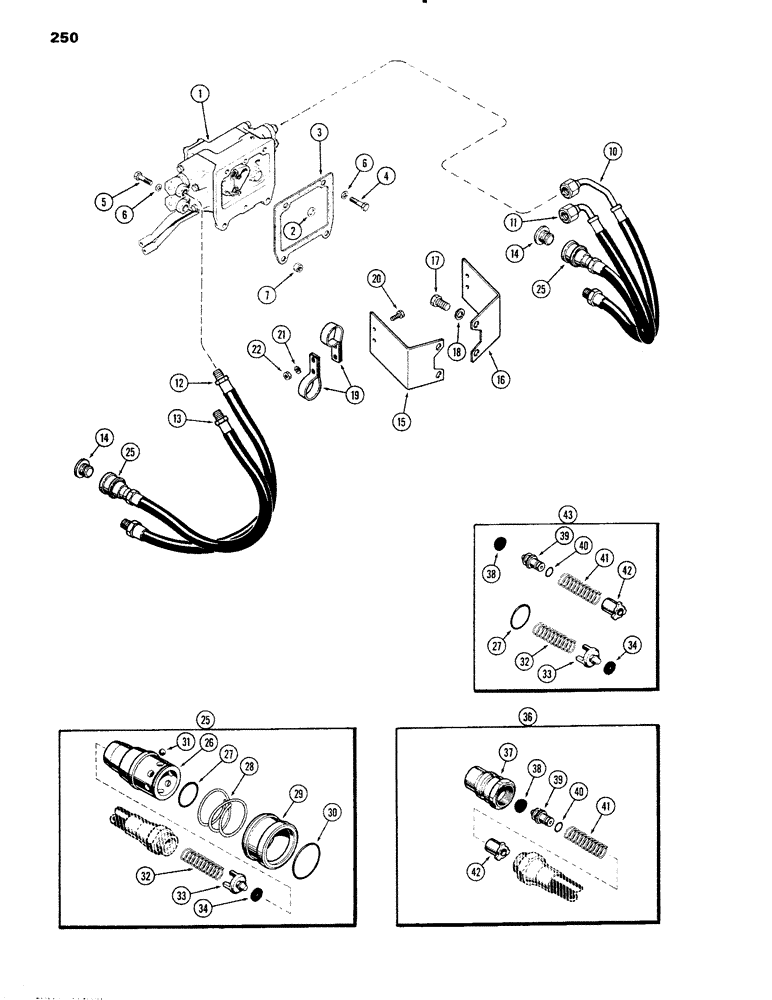

Запчасти Case IH 1090 (250) - BREAK-AWAY COUPLINGS AND LINES (08) - HYDRAULICS

1

A61465

VALVE

ASSY. - auxiliary (See Figures: 244 & 246)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- auxiliary valve, 21/32 x 29/32 x 9/64"

1шт.

3

A32349

GASKET

- auxiliary valve

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

10

A33003

HOSE

- hydraulic, L.H. upper (18-3/16" long)

1шт.

11

A32999

HOSE

- hydraulic, L.H. lower (24-7/16" long)

1шт.

12

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - hydraulic, R.H. upper (31-5/8" long)

1шт.

13

A60395

HOSE,12.7mm ID x 726.95mm L

- hydraulic, R.H. lower (28-5/8" long)

1шт.

14

A22768

PLUG

- dust, female coupling

1шт.

15

A57660

BRACKET

- mounting, break-away coupling, R.H.

1шт.

16

A57661

BRACKET - mounting, break-away coupling, L.H.

1шт.

17

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

A57662

CLAMP

- break-away coupling

4шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

25-104

NUT,1/4"-20, G5

4шт.

25

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - break-away, female half, Includes: Ref. 26 - 34

4шт.

26

A27349

BODY

- coupling

1шт.

27

A34848

O-RING

"O" RING - 7/8 x 1-1/8 x 1/8"

1шт.

Part of Repair Kit, P/N A40459

1шт.

28

A27354

SPRING

- sleeve tension

1шт.

29

A27353

SLEEVE

SLEEVE - lock & release

1шт.

30

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining

1шт.

31

211-7

BALL,1/4" Dia

- swivel 1/4" Dia

8шт.

32

A11324

SPRING

- piston pressure

1шт.

Part of Repair Kit, P/N A40459

1шт.

33

A26215

PISTON

- coupling socket

1шт.

Part of Repair Kit, P/N A40459

1шт.

34

A33964

SEAL

- piston

1шт.

Part of Repair Kit, P/N A40459

1шт.

36

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away, male half, Includes: Ref. 37 - 42

1шт.

37

A27356

PIPE FITTING

BODY - coupling

1шт.

Part of Repair Kit, P/N A40459

1шт.

38

A33964

SEAL

- piston

1шт.

Part of Repair Kit, P/N A40459

1шт.

39

A27508

PISTON

- coupling

1шт.

Part of Repair Kit, P/N A40459

1шт.

40

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - 1/4 x 3/8 x 1/16"

1шт.

Part of Repair Kit, P/N A40459

1шт.

41

A27351

SPRING

- piston

1шт.

Part of Repair Kit, P/N A40459

1шт.

42

A9634

SLEEVE

- piston

1шт.

Part of Repair Kit, P/N A40459

1шт.

43

A40459

KIT

- repair, couplings (Incl. Items 27, 32 thru 34 & 38 thru 42)

1шт.
