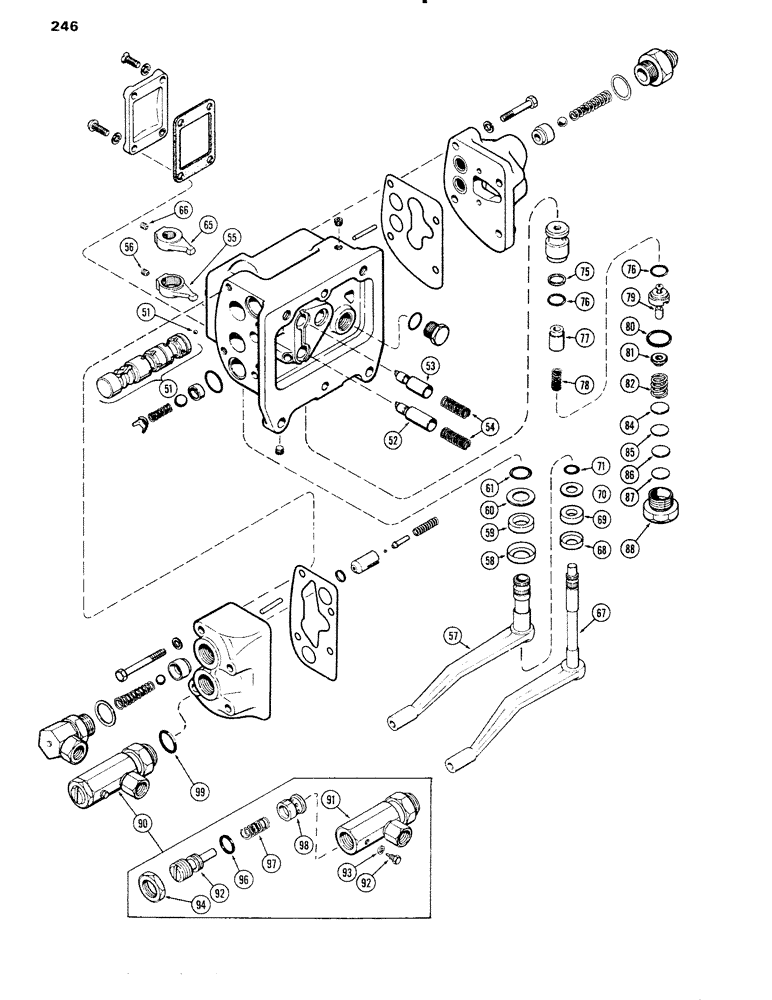

Запчасти Case IH 1090 (246) - A61465 VALVE (08) - HYDRAULICS

A61465

VALVE

ASSY. - auxiliary (Continued from Figure 244), Includes: Ref. 50 - 88 and 1 - 49 on figure 244

1шт.

50

A57538

SPOOL

ASSY. - valve, Includes: Ref. 51

2шт.

51

211-5

BALL,3/16" Dia

- . 3/16" Dia

1шт.

52

A57554

PLUNGER

- valve spool, inner

1шт.

53

A57555

PLUNGER

- valve spool, outer

1шт.

54

A30883

SPRING

- plunger

2шт.

55

A57546

ARM

ASSY. - spool shift lever, inner, Includes: Ref. 56

1шт.

56

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex. sckt. hdless., cup pt. set

1шт.

57

A60391

SHAFT

- shift lever, upper

1шт.

58

A30880

RETAINER

- felt washer, shaft

1шт.

Part of Seal Kit A43086

1шт.

59

A30879

WASHER

- felt, inner shaft

1шт.

Part of Seal Kit A43086

1шт.

60

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft

1шт.

Part of Seal Kit A43086

1шт.

61

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - 3/32 x 3/4 x 15/16" (Replaces A60499 & A64489)

1шт.

Part of Seal Kit A43086

1шт.

65

A57547

ARM

ASSY. - valve spool shift lever, outer, Includes: Ref. 66

1шт.

66

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex., sckt. hdless., cup pt. set

1шт.

67

A60393

SHAFT

- shift lever, lower

1шт.

68

A30875

RETAINER

- felt washer shaft

1шт.

Part of Seal Kit A43086

1шт.

69

A30853

WASHER

- felt, outer shaft

1шт.

Part of Seal Kit A43086

1шт.

70

A27409

WASHER

- seal, shaft

1шт.

Part of Seal Kit A43086

1шт.

71

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - 3/32 x 1/2 x 11/16" (Replaces A60498 & A64488)

1шт.

Part of Seal Kit A43086

1шт.

75

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Part of Seal Kit A43086

1шт.

76

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - 5/8 x 3/4 x 1/16"

2шт.

Part of Seal Kit A43086

1шт.

77

A57553

PISTON

- pilot relief valve

1шт.

78

A34382

SPRING

- pilot relief valve

1шт.

79

A57556

PISTON

ASSY. - pilot relief valve

1шт.

80

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Part of Seal Kit A43086

1шт.

81

A57558

RETAINER

- valve spring

1шт.

82

A61466

SPRING

- valve

1шт.

83

A61467

SHIM,.005" Thk

Pilot relief spring, Refer to attached to valve for shim data .005" Thk

1шт.

84

A34849

SHIM,.0105" Thk

Pilot relief spring, Refer to attached to valve for shim data .0105" Thk

1шт.

85

A34390

SHIM,.0329" Thk

Pilot relief spring, Refer to attached to valve for shim data .0329" Thk

1шт.

85

A34391

SHIM,.0149" Thk

Pilot relief spring, Refer to attached to valve for shim data .0149" Thk

1шт.

86

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue), Refer to attached to valve shim data .0149" Thk

1шт.

87

A34694

SHIM,.0201" Thk

Pilot relief spring, Refer to attached to valve shim data .0201" Thk

1шт.

88

A34392

PLUG

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal incl. Refs. 58, 59, 60, 61, 68, 69, 70, 71, 75, 76, 80, 99 and on figure 245 & 247

1шт.

A42888

KIT

- seal (incl. Items 75, 76 & 80)

1шт.

A65107

REGULATOR

KIT - cylinder speed, remote hydraulic, Includes: Ref. 90 - 99

1шт.

90

A65105

VALVE

REGULATOR ASSY. - cylinder speed, Includes: Ref. 91 - 98

1шт.

91

NSS

NOT SOLD SEPARAT

BODY - (Order A65107)

1шт.

92

A31095

SCREW,Hex, #8 - 32 x 15/32"

- stop

1шт.

93

192-106

WASHER

- lock, #8

1шт.

94

A31094

JAM NUT

- lock, adj. screw (7/8" N.F. hex.)

1шт.

95

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW - adjusting

1шт.

96

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - (9/16 x 3/4 x 3/32")

1шт.

97

A27452

SPRING

- pressure

1шт.

98

A31092

PISTON

- speed regulator

1шт.

99

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - regulator to head (3/4 x 59/64 x 1/8")

1шт.

Part of Seal Kit A43086

1шт.
