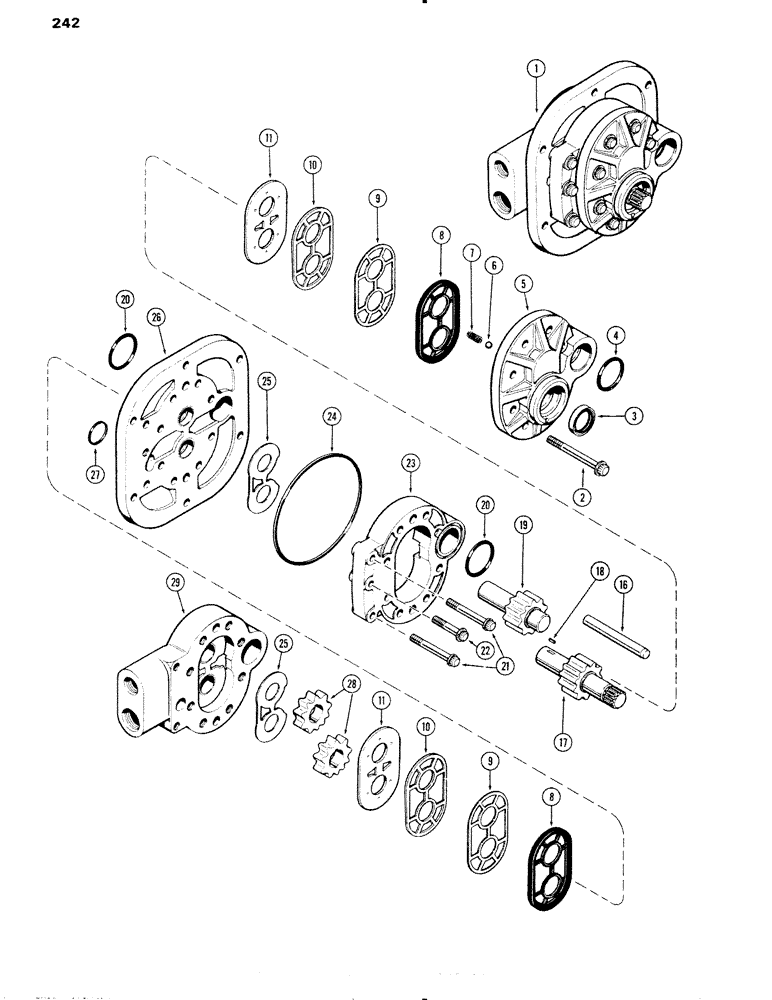

Запчасти Case IH 1090 (242) - HYDRAULIC PUMP (08) - HYDRAULICS

1

A62051

PUMP

PUMP ASSY. - hydraulic dual, Includes: Ref. 2 - 29

1шт.

1

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - 3/8 x 3-1/2" N.C. 12 pt. cap

8шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - main drive shaft

1шт.

Part of Pump Repair Kit A42826

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 x 1-5/8 x 1/8"

1шт.

Part of Pump Repair Kit A42826

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

6

211-6

BALL,7/32" Dia

BALL, , steel, relief valve 7/32" Dia

1шт.

7

F9883

SPRING

SPRING - valve

1шт.

Part of Pump Repair Kit A42826

1шт.

8

A42174

SEAL

SEAL - diaphragm

2шт.

Part of Pump Repair Kit A42826

1шт.

9

A42305

GASKET

GASKET - gear cavity sealing

2шт.

Part of Pump Repair Kit A42826

1шт.

10

A42303

GASKET

GASKET - back-up

2шт.

Part of Pump Repair Kit A42826

1шт.

11

A42304

DIAPHRAGM

DIAPHRAGM - pump

2шт.

Part of Pump Repair Kit A42826

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - dowel, covers to flange, 7/16 x 2-3/4"

2шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive, main shaft & pump

1шт.

18

NSS

NOT SOLD SEPARAT

KEY - gear, 1/8 x 3/16 x 3/8" (Order A42826)

1шт.

Part of Pump Repair Kit A42826

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - idler, main shaft & pump

1шт.

20

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - 1-9/16 x 1-3/4 x 3/32" (Replaces A57390)

2шт.

Part of Pump Repair Kit A42826

1шт.

21

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW - 5/16 x 2-1/2" N.C. 12 pt. cap

2шт.

22

166-29

12 PT SCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

SCREW - 5/16 x 1-3/4" N.C. 12 pt. cap

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - front (Order A62051)

1шт.

24

A42301

O-RING,5.250" x 5.375" x .062"

"O" RING - 5-1/4 x 5-3/8 x 1/16"

1шт.

Part of Pump Repair Kit A42826

1шт.

25

A43381

LARGE PLATE

PLATE, LARGE PLATE - thrust

2шт.

Part of Pump Repair Kit A42826

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE - pump

1шт.

27

A42302

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

"O" RING - pressure port (15/16 x 17/16 x 1/16")

1шт.

Part of Pump Repair Kit A42826

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - rear pump displacement

2шт.

29

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

A42826

- pump repair, Includes Refs. 3, 4, 7, 8, 9, 10, 11, 18, 20, 24, 25 and 27

1шт.
