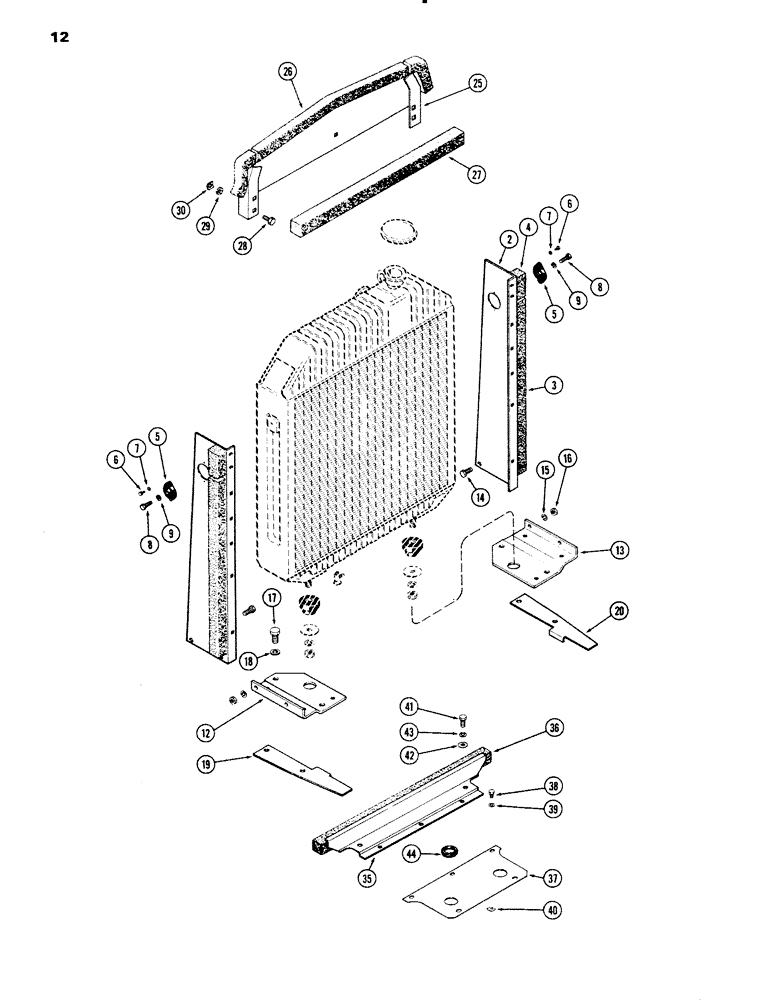

Запчасти Case IH 1090 (012) - RADIATOR BAFFLES, (451B) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A61718
SUPPORT ASSY. - radiator side, R.H.
1шт.
2
A61719
SUPPORT
ASSY. - radiator side, L.H., Includes Ref: 3 and 4
1шт.
3
A59873
SEAL
- radiator side, lower
1шт.
To Be Attached With Adhesive 345 - 22
1шт.
4
A59890
SEAL
- radiator side, upper
1шт.
To Be Attached With Adhesive 345 - 22
1шт.
5
A59862
ANCHOR
MOUNT - radiator support
2шт.
6
187-1303
SELF-TAP SCREW,Hex Hd, #6 x 3/8"
SCREW - #6-32 x 3/8" rd. hd.
4шт.
7
192-5
LOCK WASHER,#6
WASHER, LOCK, #6
4шт.
8
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
9
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
12
A59178
PLATE - radiator support, R.H.
1шт.
13
A59179
PLATE - radiator support, L.H.
1шт.
14
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
4шт.
15
92-6
LOCK WASHER,3/8"
4шт.
16
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
17
13-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd
4шт.
18
92-8
LOCK WASHER,1/2"
4шт.
19
A61662
BAFFLE
- radiator lower, R.H.
1шт.
20
A61663
BAFFLE
- radiator lower, L.H.
1шт.
25
A61726
BAFFLE ASSY. - radiator front, Includes Ref: 26 and 27
1шт.
26
A61727
SEAL
- radiator upper
1шт.
To Be Attached With Adhesive 345 - 22
1шт.
27
A59877
SEAL
- radiator upper core
1шт.
28
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
29
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
30
131-611
NUT,Ret, 1/4"-20
- 1/4" N.C. Tinnerman
4шт.
35
A59879
BAFFLE ASSY. - radiator lower, rear half
1шт.
36
A59880
SEAL
- radiator bottom
1шт.
To Be Attached With Adhesive 345 - 22
1шт.
37
A59881
BAFFLE - radiator lower, front half
1шт.
38
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
3шт.
39
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
40
131-610
SPRING NUT,U, Ret, 1/4"-20
Tinnerman U, Ret, 1/4"-20
3шт.
41
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
42
95-6
WASHER,3/8"
- 7/16 x 1 x 5/64"
4шт.
43
92-6
LOCK WASHER,3/8"
4шт.
44
A27519
GROMMET
- radiator front lower baffle
2шт.
Выбрано товаров: 38
