(236) - HYDRAULIC SYSTEM, POWER SHIFT

Запчасти Case IH 1090 (236) - HYDRAULIC SYSTEM, POWER SHIFT (08) - HYDRAULICS

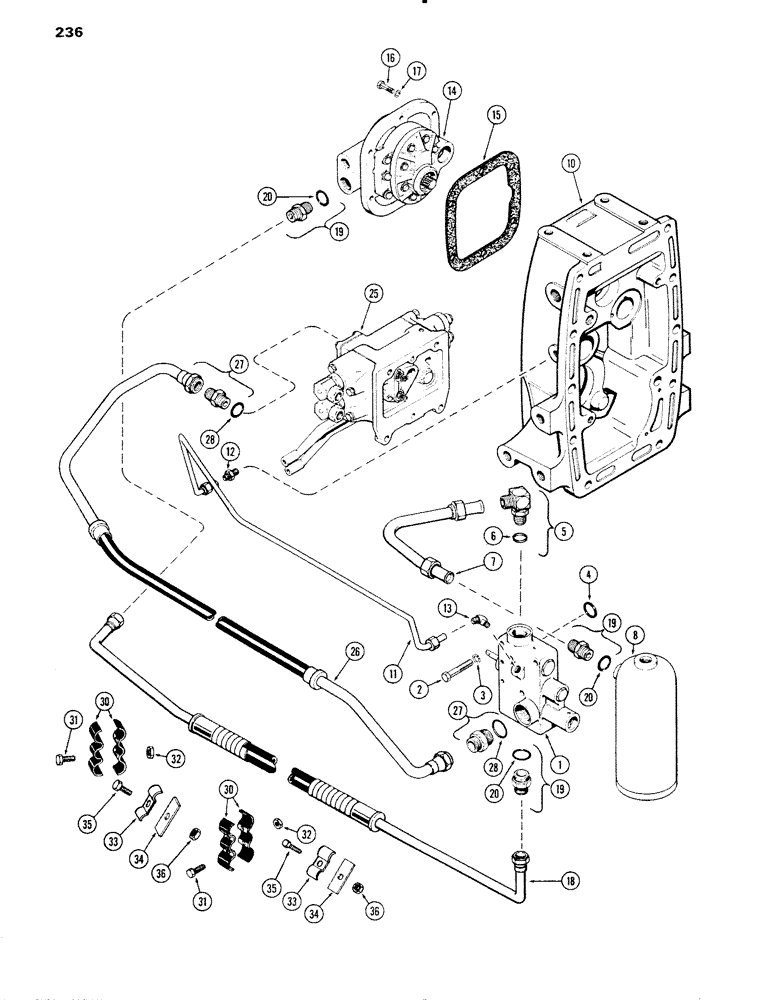

Схема запчастей Case IH 1090 - (236) - HYDRAULIC SYSTEM, POWER SHIFT (08) - HYDRAULICS
31
28
31
19
32
33
30
3
27
4
12
28
33
25
17
1
8
19
18
36
6
10
20
19
35
20
7
14
5
36
26
32
34
11
13
27
30
35
2
20
15
16
34
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60270

VALVE

VALVE ASSY. - regulator (See Figure: 240) (Order A65670)

1шт.

2

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

3шт.

3

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 1 x 3/4 x 1/8"

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , Assy, 3/4" tube, Incl. Ref. 6 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

7

A61779

TUBE

TUBE -, Serial Range: filter-valve

1шт.

8

A60766

SPROCKET

SPARE PART FILTER ASSY. - hydraulic oil (See Figure: 154)

1шт.

10

REF

INSTRUCTION

HOUSING - P.T.O. and hydraulic pump (Order from Fig. 208)

1шт.

11

A60289

TUBE

TUBE - housing to valve (Replaces A61778)

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - 1/4" P.T., 3/8" tube

1шт.

13

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

ELBOW, (3/8" tube) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

14

A62051

PUMP

PUMP ASSY. - hydraulic dual (See Figure: 242)

1шт.

14

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

14

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

A32096

GASKET

GASKET -, Serial Range: pump-housing

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

17

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

18

A64479

TUBE ASSY.

TUBE - valve to pump (Replaces A62546)

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

HYD CONNECTOR, , Assy, 3/4" tube, Incl. Ref. 20 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

3шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

25

A61465

VALVE

VALVE ASSY. - auxiliary (See Figures: 244 & 246)

1шт.

26

A64477

TUBE

TUBE - valve to valve (Replaces A61777)

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

HYD CONNECTOR, , Assy, 3/4" tube, Incl. Ref. 28 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

30

A60862

CLAMP

CLAMP - tube

4шт.

31

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16" N.C. hex.

4шт.

33

A61272

CLAMP

CLAMP - tube

2шт.

34

A60864

PLATE

PLATE - clamp mounting

2шт.

35

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT - 5/8 x 1-1/8" N.C. hex.

2шт.

36

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16" N.C. hex.

2шт.
