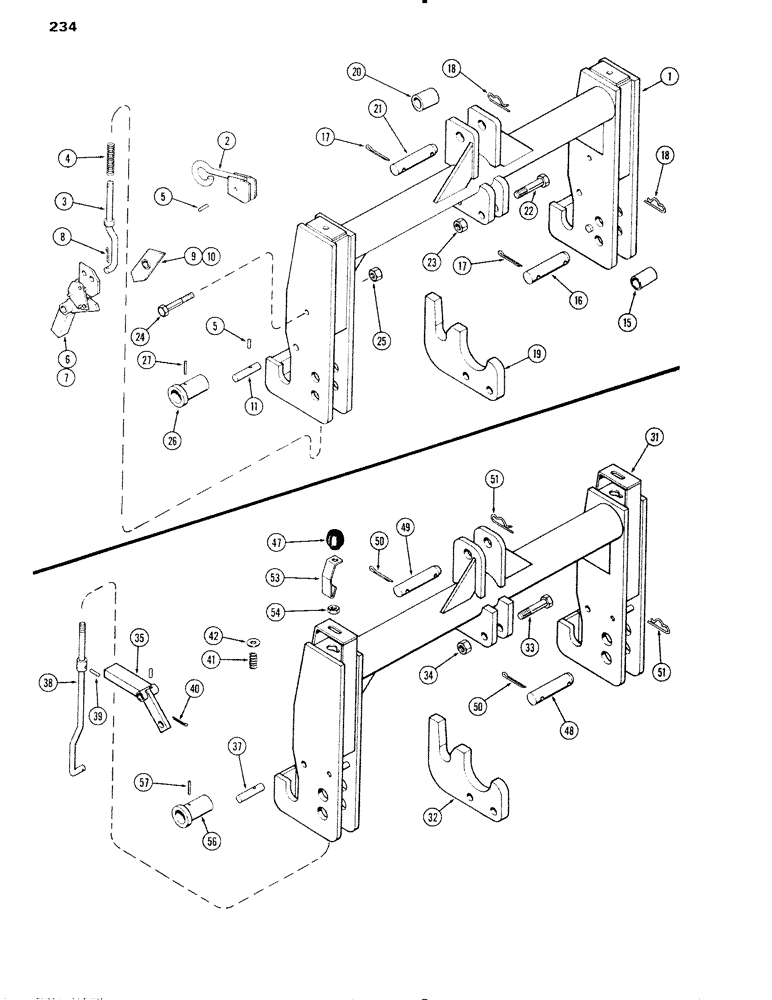

Запчасти Case IH 1090 (234) - QUICK HITCH COUPLER (08) - HYDRAULICS

A65708

COUPLER ASSY. - quick hitch (Replaces A62872), Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order A65708)

1шт.

2

A44472

HANDLE

- hitch release

2шт.

3

A44467

ROD

-, Serial Range: handle-trip

2шт.

4

A44476

VALVE SPRING

SPRING - release rod

2шт.

5

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN - roll, 3/16 x 1-1/4"

4шт.

6

A44468

LEVER

- lower lock, R.H.

1шт.

7

A44469

LEVER

- lower lock, L.H.

1шт.

8

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

9

A44470

LEVER

- lower trip ratchet, R.H.

1шт.

10

A44471

LEVER

- lower trip ratchet, L.H.

1шт.

11

A44473

PIN

- trip ratchet lever pin

2шт.

15

A43542

SLEEVE

S - lower draft arm pin

2шт.

16

A43540

AXLE PIN

PIN - lower, draft arm

2шт.

17

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

18

T50113

PIN

- clinch, draft arm pin

3шт.

19

A44475

LUG

- upper hitch attaching

1шт.

20

A44474

SLEEVE

- upper draft arm pin

1шт.

21

A43541

PIN

- upper draft arm

1шт.

22

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

23

129-108

NUT,3/4"-10, G5

2шт.

24

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

26

T32995

ADAPTER

- coupler (1-1/8" I.D.)(for Cat. II implement)

2шт.

27

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

A62872

COUPLER ASSY. - quick hitch (Order A65708), Includes: Ref. 31 - 54

1шт.

31

NSS

NOT SOLD SEPARAT

FRAME - welded (Order A65708)

1шт.

32

A43543

LUG - upper link attachment

1шт.

33

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Lug to frame Hex, 3/4"-10 x 3", G5

2шт.

34

129-108

NUT,3/4"-10, G5

2шт.

35

A43537

LEVER - latch lug trip

2шт.

36

A43539

PIN - trip, Serial Range: lever-frame

2шт.

37

A43538

ROD ASSY. - trip lever lock

2шт.

38

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

39

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

40

A30083

VALVE SPRING

SPRING - lock rod

2шт.

41

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32", Spring retaining

2шт.

42

A65699

KNOB

- lock rod (Replaces A62078)

2шт.

47

A43540

AXLE PIN

PIN - draft arms to coupler, 1-1/8" dia. x 4-3/4"

2шт.

48

A43541

PIN

- upper link hitch, 1" dia. x 5"

1шт.

49

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), (hitch pins) 3/8" x 2 1/2"

3шт.

50

T50113

PIN

- clinch (internal hair)

3шт.

51

A43092

CLIP

- locking latch

2шт.

52

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

2шт.

53

T32995

ADAPTER

- coupler (1-1/8" I.D.) (for Cat. II implement)

2шт.

54

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.
