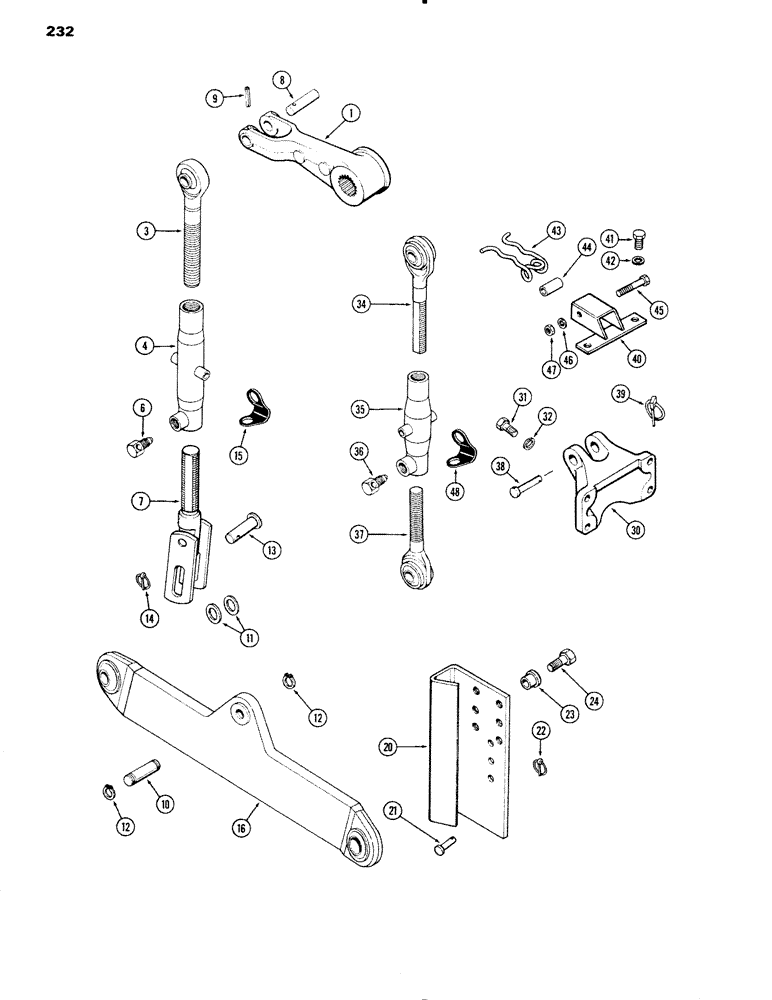

Запчасти Case IH 1090 (232) - THREE POINT HITCH (08) - HYDRAULICS

1

A57494

ARM

- rockshaft, lift links, R.H. & L.H.

2шт.

NSS

NOT SOLD SEPARAT

LINK ASSY. - lift, Includes: Ref. 3 - 7

2шт.

3

A61470

LINK ASSY. - lift, upper

1шт.

4

A61795

TURNBUCKLE ASSY. - lift link

1шт.

6

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- locking

1шт.

7

A61474

LINK ASSY. - lift, lower

1шт.

8

A32268

PIN

- lift arm to lift link

2шт.

9

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - 1/4 x 2" type 3, groove

2шт.

10

A60979

PIN

- lift link to draft arm

2шт.

11

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- 2-1/2 x 1-1/16 x 11/64"

4шт.

12

A34428

SNAP RING,#98, Ext

Ring, Snap, , link pin #98, Ext

4шт.

13

A62243

PIN

- float lockout

2шт.

14

A30338

PIN

ASSY. - klik

2шт.

15

A62986

HOLDER

KEEPER - locking screw (rubber)

2шт.

16

A62378

ARM

- draft, R.H.

1шт.

16

A62379

ARM

- draft, L.H.

1шт.

20

A61700

STOP

- draft arm sway, R.H.

1шт.

20

A61701

STOP

- draft arm sway, L.H.

1шт.

21

A60603

PIN

- stop mounting

2шт.

22

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klik

2шт.

23

A60597

SPACER

- stop

2шт.

24

113-744

X

BOLT - 3/4 x 1-3/4" N.C. hex.

2шт.

30

A60667

BRACKET

- mounting, upper link

1шт.

31

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

NSS

NOT SOLD SEPARAT

LINK ASSY. - upper center, Includes: Ref. 34 - 37

1шт.

34

A62289

SCREW,1 1/4" - 12 x 5.60"

- upper link, tractor end

1шт.

35

A62287

TURNBUCKLE

- link

1шт.

36

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- link locking

1шт.

37

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- link, implement end

1шт.

38

A33432

PIN

- link to bracket (one shipped loose in tool box)

2шт.

39

A33509

PIN,11.18mm OD

ASSY. - klik (one shipped loose in tool box)

2шт.

40

A60664

BRACKET

- turnbuckle transport clip

1шт.

41

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

43

A61684

CLIP

- turnbuckle retaining

1шт.

44

A60246

SPACER

- clip

1шт.

45

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex.

1шт.

46

92-8

LOCK WASHER,1/2"

1шт.

47

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

48

A62986

HOLDER

KEEPER - locking screw (rubber)

1шт.
