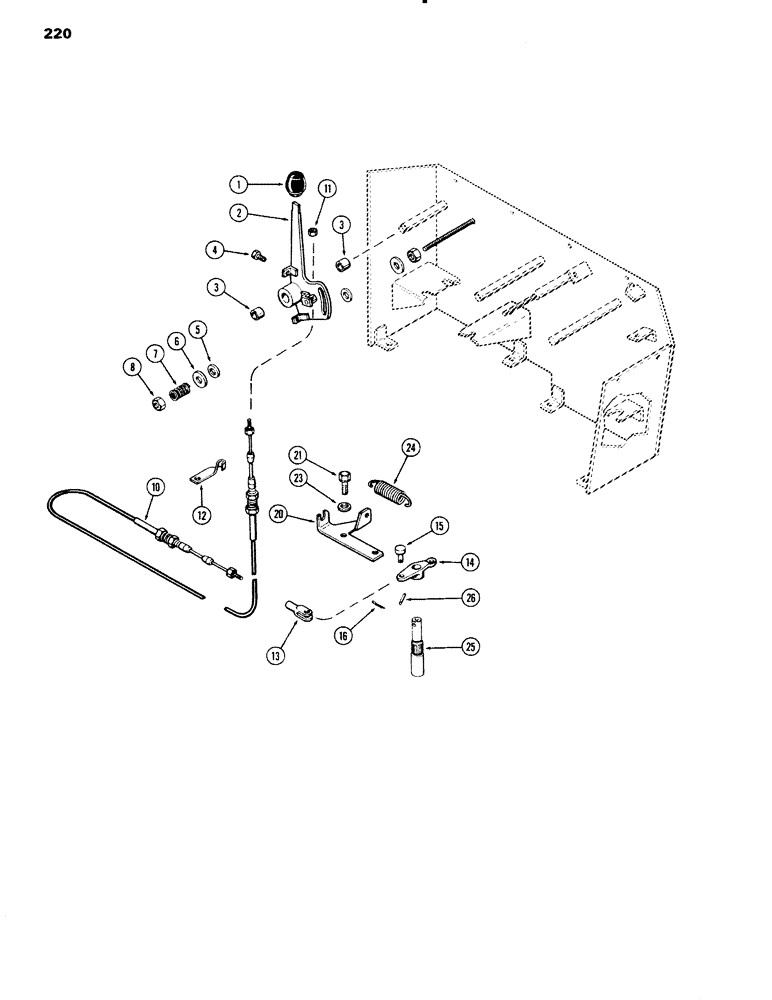

Запчасти Case IH 1090 (220) - DRAFT SENSING CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

- lever (Replaces A62078)

1шт.

2

A61076

LEVER

ASSY. - draft sensing, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

4

A59463

BOLT

- 1/4 x 5/8" N.F. hex., nylon

2шт.

5

A61069

DISC

- friction, lever

2шт.

6

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

2шт.

7

A62201

SPRING

- disc tension

1шт.

8

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., jam

2шт.

10

A59466

CABLE

- sensing control

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., w/ext. skpf. washer

1шт.

12

A59467

CLIP - cable

1шт.

13

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lever, 3/16"

1шт.

14

A62176

LEVER

- sensing, lower

1шт.

15

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

16

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

A61064

BRACKET

- sensing cable

1шт.

21

193-536

BOLT - 3/8 x 1-1/8" N.C. hex., sems

2шт.

23

195-21

WASHER,5/16"

(11/32 x 11/16 x 1/16") 5/16"

2шт.

24

A59470

SPRING

- sensing control

1шт.

25

A59599

SHAFT - manual control

1шт.

26

138-2009

PIN,3/16" x 1", Coiled

1шт.
