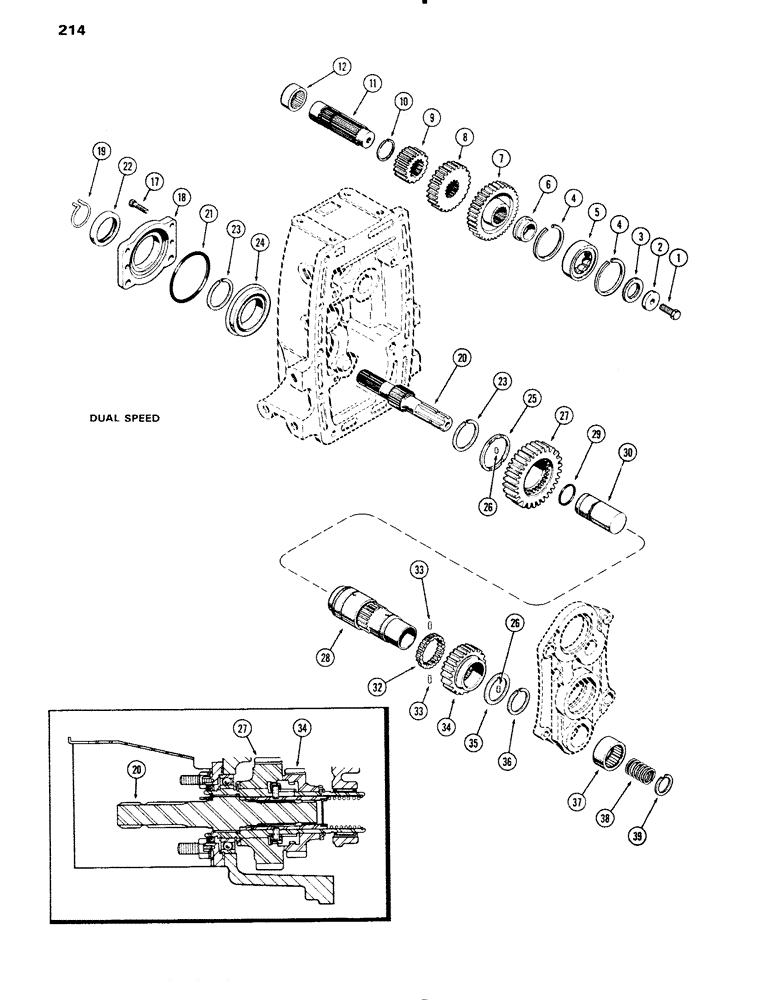

Запчасти Case IH 1090 (214) - P.T.O. OUTPUT AND IDLER SHAFTS, DUAL SPEED (08) - HYDRAULICS

1

121-415

BOLT,Hex, 1/2" x 1"

- 1/2 x 1" N.C. hex., jay-lok

1шт.

2

A57462

WASHER

- retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

- inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING - 2nd idler shaft outer race, front

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - single rib inner race

1шт.

7

A32408

GEAR

- driven, 2nd idler (36 teeth)

1шт.

8

A58986

GEAR

- driver pinion (1000 R.P.M.) (28 teeth)

1шт.

9

A58985

GEAR

- drive pinion (19 teeth)

1шт.

10

A7339

RING

- snap, 2nd idler shaft, external

1шт.

11

A58203

SHAFT

- 2nd idler

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, idler shaft, 1-3/4 x 2-1/8 x 1"

1шт.

17

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - 3/8 x 3/4" N.C. Ferry cap

2шт.

18

A62390

RETAINER

- bearing & oil seal

1шт.

19

A61029

SNAP RING,3.48mm Thk, Int

- snap, retaining, output shaft

1шт.

20

A58214

SHAFT

- dual output

1шт.

21

A58224

SEALING RING

- tetra, 4-47/64 x 4-55/64 x 9/64"

1шт.

22

A58223

OIL SEAL

- oil

1шт.

23

A58217

SNAP RING,#275, 2.594, Ext

RING - snap, output sleeve, external

2шт.

24

A58216

BALL BEARING,69.98mm ID x 110mm OD x 20mm W

BEARING - rear

1шт.

25

A64309

WASHER,70.28mm ID x 88.9mm OD x 5.59mm Thk

- thrust (large) (Replaces A58218)

1шт.

26

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

2шт.

27

A58996

GEAR

- output (540 R.P.M.) (41 teeth)

1шт.

28

A65997

SLEEVE

- output shaft (Replaces A58227)

1шт.

29

A59001

O-RING,1.612" ID x 1.818" OD

"O" RING - P.T.O. support

1шт.

30

A62030

SUPPORT

ASSY. - output shaft sleeve

1шт.

32

A58210

COLLAR

- shifting

1шт.

33

A62026

PIN

- shift collar

2шт.

34

A58997

GEAR

- output sleeve (1000 R.P.M.) (32 teeth)

1шт.

35

A64308

WASHER,58.95mm ID x 76.2mm OD x 5.59mm Thk

- thrust (small) (Replaces A58221)

1шт.

36

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, external sleeve

1шт.

37

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, sleeve, 2-1/4 x 2-5/8 x 1-1/4"

1шт.

38

A58213

SPRING

- gear shifting

1шт.

39

A58212

RING

- snap, internal, spring retaining

1шт.
