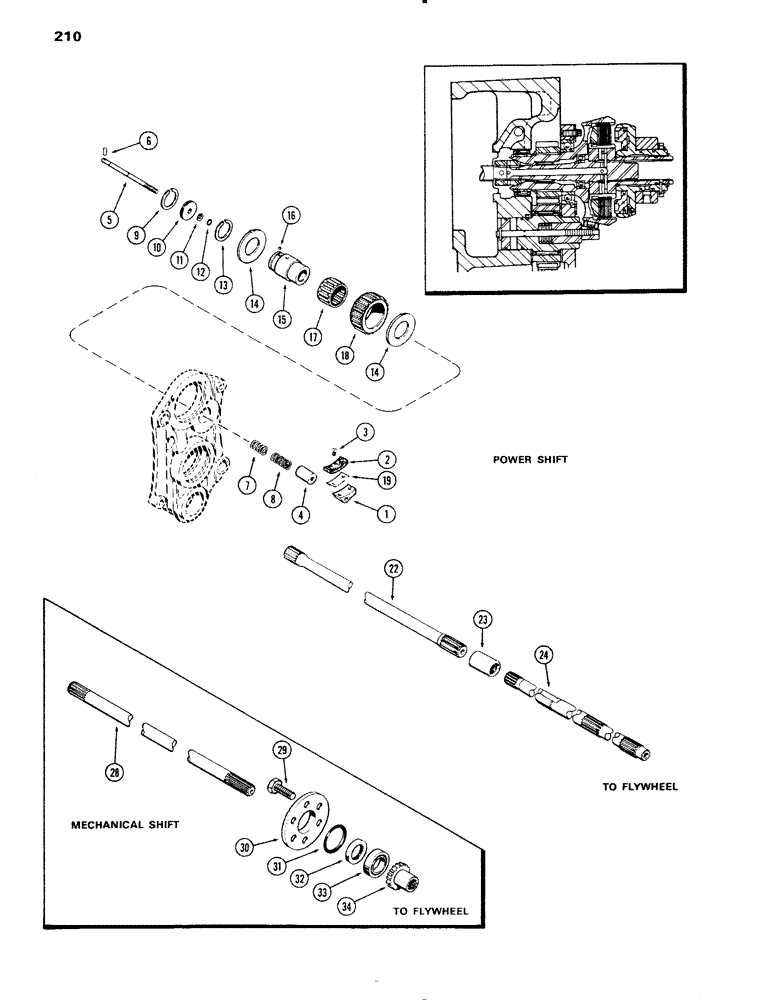

Запчасти Case IH 1090 (210) - P.T.O. 1ST IDLER AND BRAKE (08) - HYDRAULICS

A65713

BRAKE

SHOE ASSY. - P.T.O. brake (Replaces A58990), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE - brake (Order A58990)

1шт.

2

A25599

FACING

KIT - brake shoe, Includes: Ref. 3

1шт.

3

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10 x 3/8" N.C. self-tapping

2шт.

4

NSS

NOT SOLD SEPARAT

PISTON - P.T.O. brake apply (Order A58990)

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - connecting, brake (Order A58990)

1шт.

6

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

7

A32451

SPRING

- brake actuating, 1-3/16" free length

1шт.

8

D38446

SPRING

- brake actuating, 1-1/4" free length

1шт.

9

A58989

RING

- seal, brake release piston

1шт.

10

A58994

PISTON

- brake release

1шт.

11

G46146

SNAP RING,#37, Ext

Ring, Snap, , connecting rod #37, Ext

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - 1/4 x 3/8 x 1/16"

1шт.

13

A58989

RING

- seal, 1st idler shaft

1шт.

14

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- 1st idler shaft

2шт.

15

A58988

SHAFT

- 1st idler

1шт.

16

211-7

BALL,1/4" Dia

chrome steel 1/4" Dia

1шт.

17

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 1st idler shaft

1шт.

18

A34136

GEAR

- 1st idler, 25 teeth

1шт.

19

A62884

SHIM - brake shoe pad

1шт.

22

A58414

SHAFT

- drive, rear (Power Shift)(30" long), P.T.O.

1шт.

23

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, front & rear (Power Shift), P.T.O.

1шт.

24

A59932

SHAFT

- drive, front (Power Shift) (21-13/32" long), P.T.O.

1шт.

28

A34435

SHAFT

- drive (Mechanical Shift) (53-13/32" long), P.T.O.

1шт.

29

114-622

X

BOLT - 5/8 x 2" N.F. hex., P.T.O. shaft

6шт.

30

A7145

RETAINER

- oil seal, shaft, P.t.o.

1шт.

31

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - 2-1/2 x 2-3/4 x 1/8", P.T.O. shaft

1шт.

32

A57479

OIL SEAL

- oil, shaft (1-1/2 x 2-1/8 x 7/16"), P.T.O. shaft

1шт.

33

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, shaft, P.T.O.

1шт.

34

A34522

SLEEVE

- shaft, P.T.O.

1шт.
