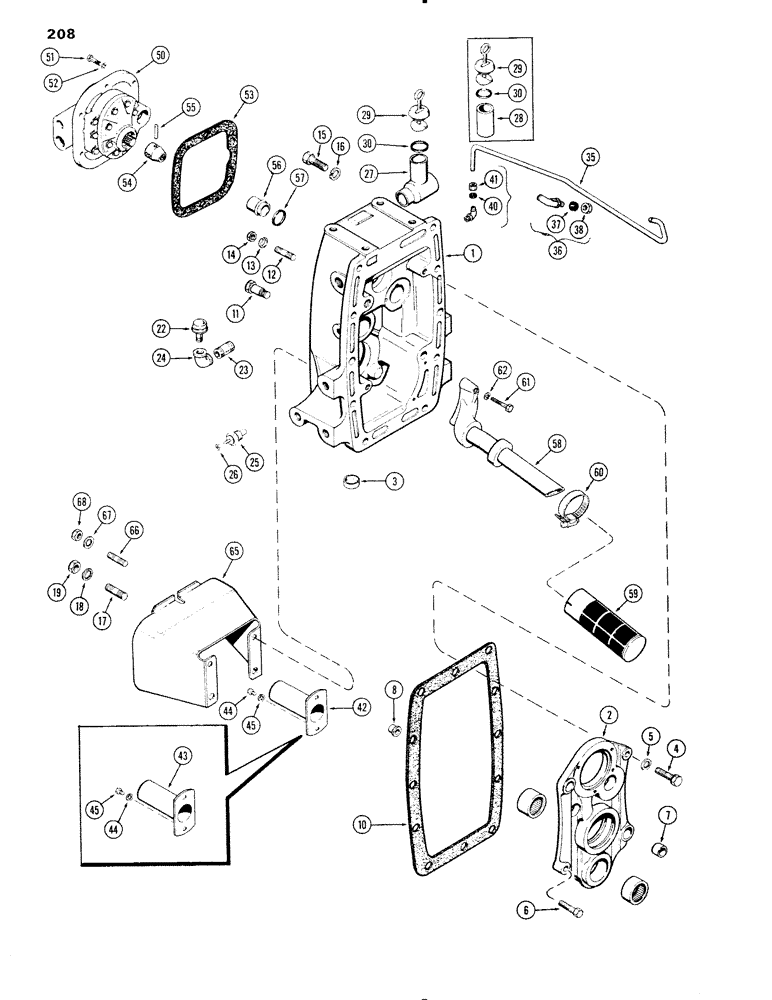

Запчасти Case IH 1090 (208) - P.T.O. HOUSING (08) - HYDRAULICS

A65825

HOUSING

ASSY. - P.T.O. & hyd. pump (Casting No. A65824), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. (Casting No. A62171)(Order A65825)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. (Casting No. A58191)(Order A65825)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. bearing carrier (Order A62190)

1шт.

3

41-1020

PLUG,Cup, 1 1/4"

- 1-17/64" cup

1шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

A50011

SLEEVE

- dowel, bearing, Serial Range: carrier-housing

2шт.

8

A32426

BUSHING

SPACER - bearing carrier to sleeve

2шт.

10

A32461

GASKET

- P.T.O. housing to trans. case

1шт.

11

A61670

STEP BOLT

- dowel (5/8 x 1-13/16" N.C. hex.)

2шт.

12

A29396

STUD

- (5/8" N.C./N.F. x 2-7/8")

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

15

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

17

A58195

STUD

- (5/8" N.C. x 3-1/2")

2шт.

18

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

19

25-1010

NUT,5/8"-11, G5

2шт.

A64934

KIT

BREATHER KIT - oil, P.T.O. housing, Includes: Ref. 22 and 24

1шт.

22

A27173

BREATHER

- oil

1шт.

22

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - breather, 3/4" P.T. x 1-3/8"

1шт.

24

221-395

FITTING

ELBOW - reducing, 3/4 x 1/4" P.T. - 90 deg.

1шт.

25

A21462

SENDER UNIT

UNIT - sending, transmission temperature

1шт.

26

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex., keps w/ext. skpf. washer

1шт.

27

A62172

TUBE

- oil filler (Use w/Casting No. A62171)

1шт.

28

A59122

TUBE - oil filler (Use w/Casting No. A58191)

1шт.

29

A64404

BREATHER

ASSY. - oil (Replaces A59123), Includes: Ref. 30

1шт.

30

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - (1 x 1-1/4 x 1/8")

1шт.

35

A59299

TUBE

- P.T.O. clutch lubrication

1шт.

36

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., 3/8" tube, Includes: Ref. 37 and 38

1шт.

37

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

38

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

39

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ASSY. - 3/8" P.T., 3/8" tube, Includes: Ref. 40 and 41

1шт.

40

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

41

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

42

A32456

GUARD ASSY. - output shaft (single speed)

1шт.

43

A58238

GUARD

- output shaft (dual speed)

1шт.

44

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

45

92-5

LOCK WASHER,5/16"

2шт.

50

REF

INSTRUCTION

PUMP ASSY. - hydraulic (Order from Figure 242)

1шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

52

92-6

LOCK WASHER,3/8"

6шт.

53

A32096

GASKET

- hydraulic pump

1шт.

54

A32097

COUPLING, BREAK AWAY

COUPLING - hydraulic pump shaft

1шт.

55

138-2011

PIN,1/8" x 1 1/4", Coiled

1шт.

56

A58983

TUBE

- hydraulic pump inlet

1шт.

57

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 x 1-5/8 x 1/8", Includes: Ref. 58 - 60

1шт.

A61057

TUBE

SCREEN ASSY. - hydraulic pump oil suction

1шт.

58

NSS

NOT SOLD SEPARAT

TUBE - oil suction (Order A61057)

1шт.

59

A60299

FILTER STRAINER

SCREEN - oil suction

1шт.

60

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4"

1шт.

61

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.

65

A62391

GUARD

SHIELD - output shaft

1шт.
