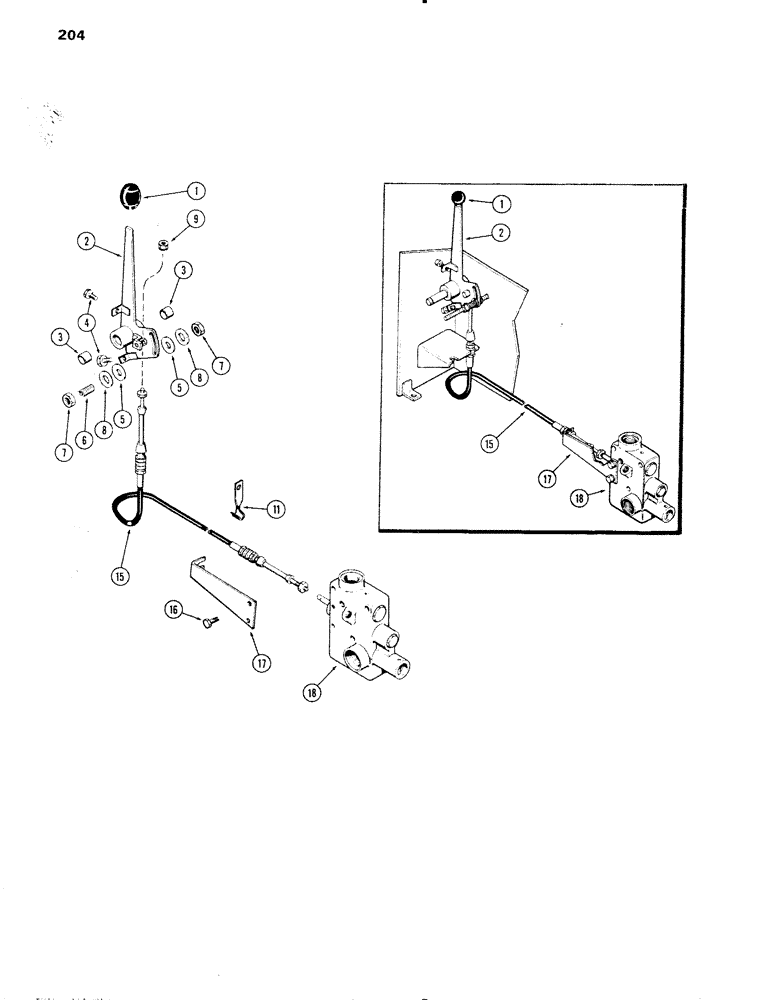

Запчасти Case IH 1090 (204) - P.T.O. CONTROL LINKAGE (08) - HYDRAULICS

1

A65699

KNOB

- P.T.O. hand lever (Replaces A62078)

1шт.

2

A61072

LEVER

ASSY. - P.T.O. hand, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

4

A59463

BOLT

- 1/4 x 5/8" N.C. hex., nylon

2шт.

5

A61069

DISC

- friction, 25/64 x 1-1/4 x 1/8"

2шт.

6

A26546

SPRING

- compression, friction disc

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., top face lock

2шт.

8

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- #10 - 32 hex., keps w/ext. skpf. washer

1шт.

11

A59467

CLIP - cable

1шт.

15

A59466

CABLE

- P.T.O. control

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

A60267

BRACKET

- P.T.O. cable

1шт.

18

A62070

RING

VALVE ASSY. - flow divider & P.T.O. control (See Fig. 228)

1шт.
