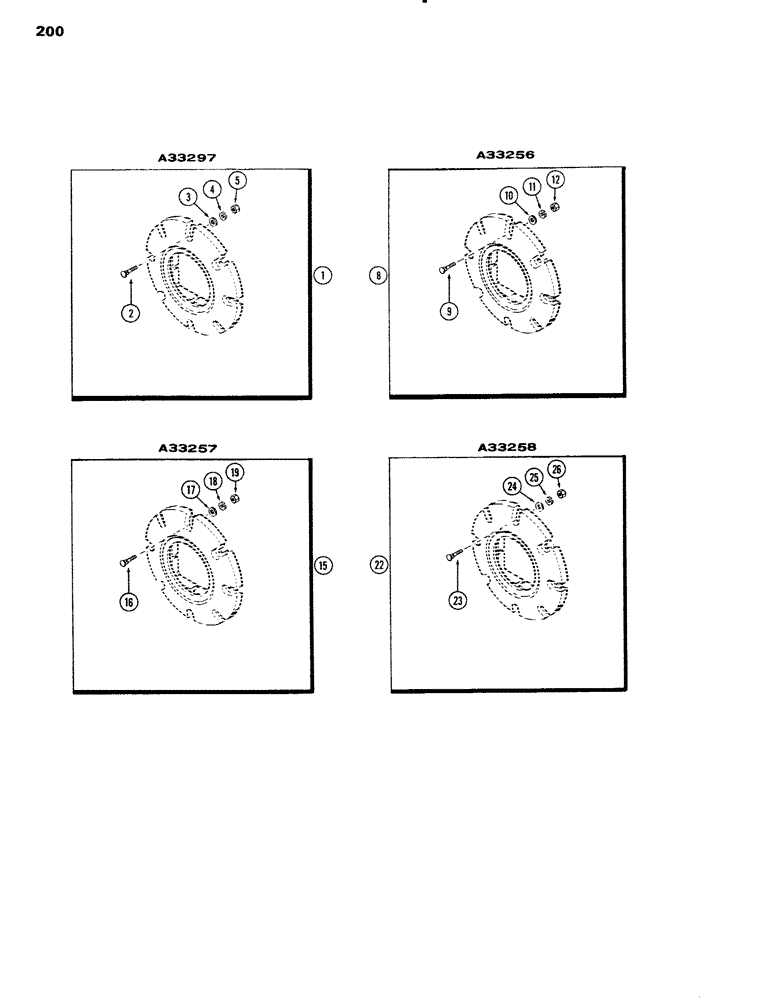

Запчасти Case IH 1090 (200) - REAR WHEEL WEIGHTS, 140 LBS. EACH, FOR 30 INCH WHEELS (08) - HYDRAULICS

1

A33297

WEIGHT SET - (Set of 2) (Mach. Item), Includes: Ref. 2 - 5

1шт.

2

11-1056

BOLT - 5/8 x 3-1/2" N.C. carr. Short NK, 5/8"-11 x 3 1/2", G2

8шт.

2

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - 5/8 x 4-1/2" N.C. carr.

8шт.

2

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - 5/8 x 6" N.C. carr.

8шт.

3

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

25-1010

NUT,5/8"-11, G5

8шт.

8

A33256

WEIGHT SET - (Set of 2) (Mach. Item), Includes: Ref. 9 - 12, for 34" wheels

1шт.

9

11-1056

BOLT - 5/8 x 3-1/2" N.C. carr, for 34" wheels Short NK, 5/8"-11 x 3 1/2", G2

8шт.

9

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - 5/8 x 4-1/2" N.C. carr., for 34" wheels

8шт.

9

11-1038

BOLT - 5/8 x 5-1/2" N.C. carr., for 34" wheels

8шт.

10

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64", for 34" wheels

8шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , for 34" wheels 5/8"

8шт.

12

25-1010

NUT,5/8"-11, G5

For 34" wheels 5/8"-11, G5

8шт.

15

A33257

WEIGHT SET - (Set of 2) (Mach. Item), Includes: Ref. 16 - 19, for 38" wheels

1шт.

16

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. carr., for 38" wheels

8шт.

16

11-1080

BOLT - 5/8 x 5" N.C. carr., for 38" wheels

8шт.

16

11-1088

BOLT (MACHINE)

BOLT - 5/8 x 5-1/2" N.C. carr., for 38" wheels

8шт.

17

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64", for 38" wheels

8шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , for 38" wheels 5/8"

8шт.

19

25-1010

NUT,5/8"-11, G5

For 38" wheels 5/8"-11, G5

8шт.

22

A33258

BOLT

WEIGHT SET - additional (Set of 2) (Mach. Item), Includes: Ref. 23 - 26, for 30, 34, and 38" wheels

1шт.

23

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. carr., for 30, 34, and 38" wheels

8шт.

24

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64", for 30, 34, and 38" wheels

8шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , for 30, 34, and 38" wheels 5/8"

8шт.

26

25-1010

NUT,5/8"-11, G5

For 30, 34, and 38" wheels 5/8"-11, G5

8шт.
