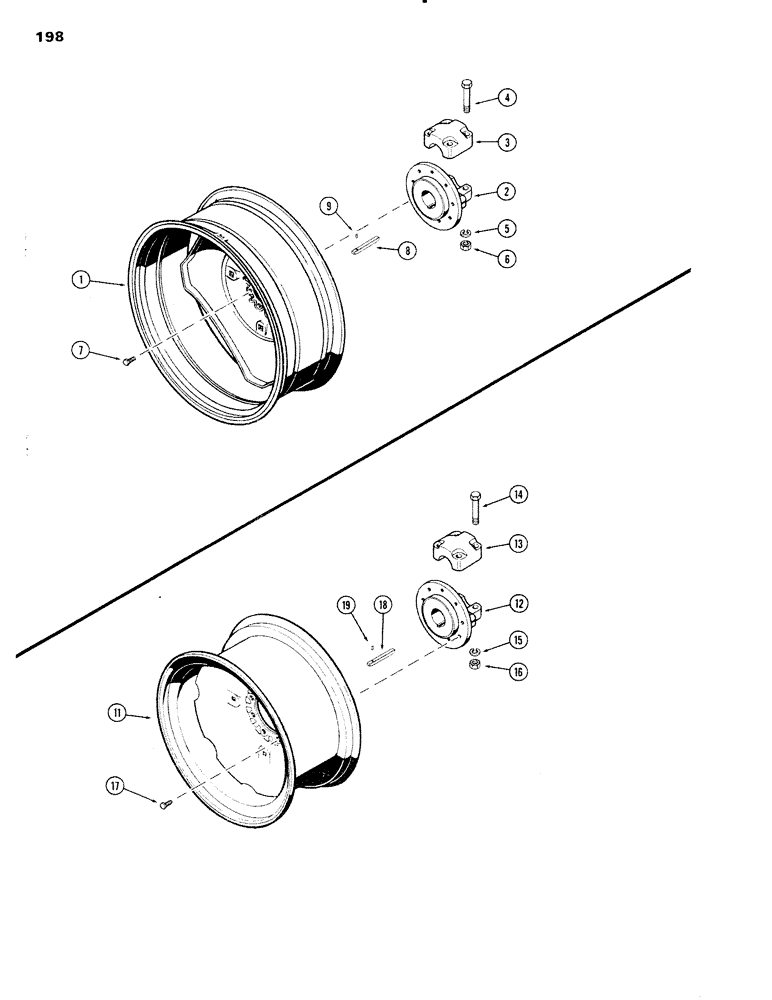

Запчасти Case IH 1090 (198) - DUAL REAR WHEELS WITH 38 INCH RIMS, STAMPED (08) - HYDRAULICS

1

A34839

WHEEL

- rear (takes 15.15 x 38 tire)

4шт.

2

A60625

HUB

ASSY. - (w/9/16" N.F. tapped holes) (Order A62565 & A62567)

4шт.

2

A62565

HUB

ASSY. - (w/5/8" N.F. tapped holes), Includes: Ref. 3 - 6

4шт.

3

A60627

CAP

- hub

1шт.

4

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- cap to hub

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

4шт.

7

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16" N.F. x 1-5/32")

36шт.

7

A62567

WHEEL BOLT

BOLT - wheel to hub (5/8" N.F. x 1-1/2")

36шт.

8

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: hub-axle

4шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.

11

A60629

WHEEL - rear, 9-5/16" offset (takes 18.4 x 38 tire)

4шт.

11

A62990

WHEEL

- rear, 10" offset (takes 18.4 x 38 tire)

4шт.

12

A60625

HUB

ASSY. - (w/9/16" N.F. tapped holes)(Order A62565 & A62567)

4шт.

12

A62565

HUB

ASSY. - (w/5/8" N.F. tapped holes), Includes: Ref. 13 - 16

4шт.

13

A60627

CAP

- hub

1шт.

14

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- wheel to hub

4шт.

15

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

16

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

4шт.

17

A62567

WHEEL BOLT

BOLT - wheel to hub (5/8" N.F. x 1-1/2")

36шт.

17

L13538

WHEEL BOLT

- wheel to hub (9/16" N.F. x 1-1/2")

36шт.

18

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: hub-axle

4шт.

19

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.
