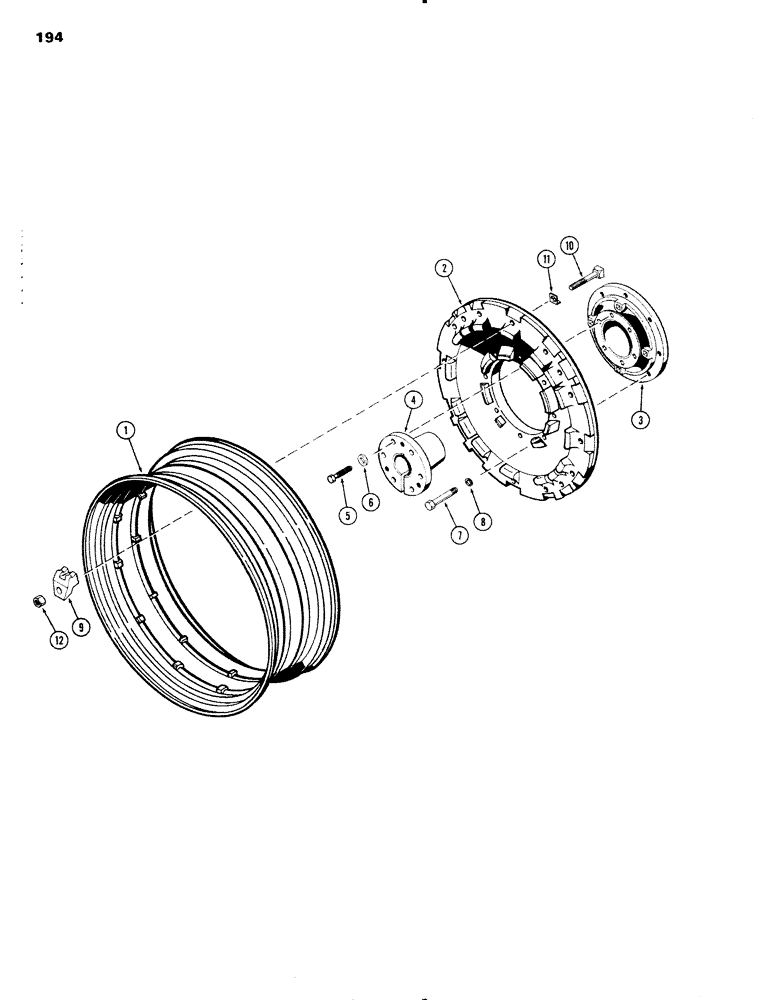

Запчасти Case IH 1090 (194) - REAR WHEELS WITH 38 INCH RIMS (08) - HYDRAULICS

1

A61576

RIM

- rear wheel (takes 15.5 x 38 tire)

2шт.

1

A61577

RIM

- rear wheel (takes 18.4 x 38 tire)

2шт.

1

A61578

RIM

- rear wheel (takes 20.8 x 38 tire)

2шт.

2

A61575

WHEEL - rear, universal hub

2шт.

NSS

NOT SOLD SEPARAT

HUB ASSY. - universal, 3-1/2" tapered bushing, Includes: Ref. 3 - 6

2шт.

3

A59791

HUB

- universal

1шт.

4

A59792

HUB

BUSHING - 3-1/2" taper

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A57654

CLAMP

- double ramp type

16шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 2-1/2" N.C. sq. hd.

16шт.

11

A34799

LOCK WASHER

- lock

16шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex.

16шт.
