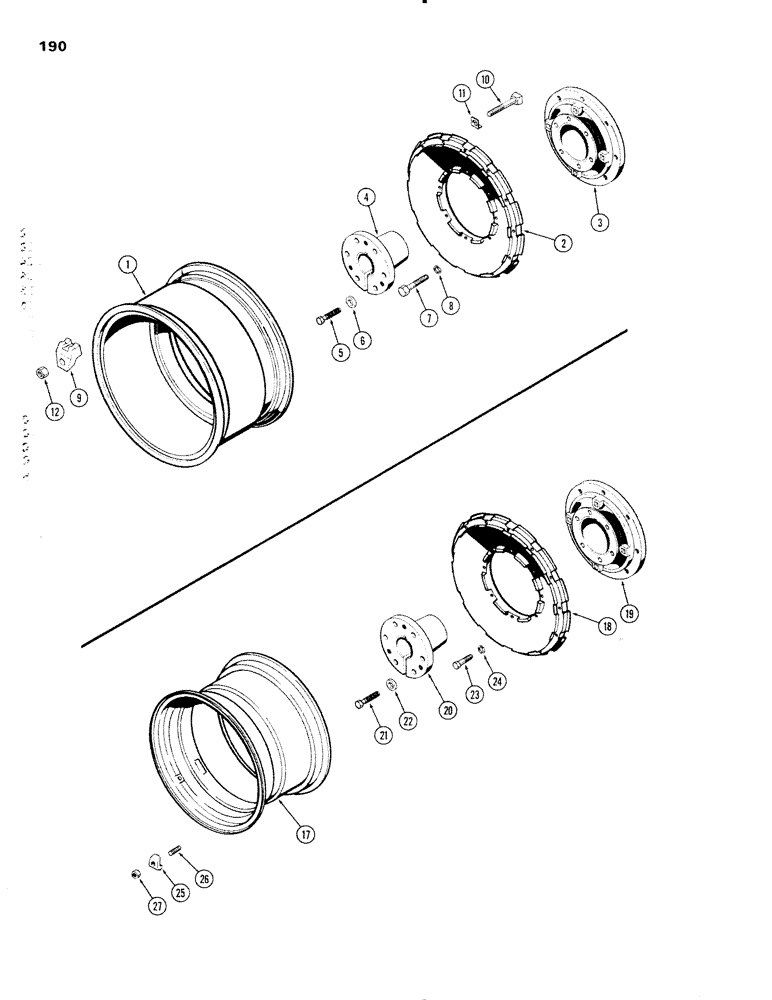

Запчасти Case IH 1090 (190) - REAR WHEELS WITH 34 INCH RIMS (08) - HYDRAULICS

1

A33168

RIM

- rear wheel (takes 16.9 x 34 tire)

2шт.

1

A57045

RIM

- rear wheel (takes 18.4 x 34 tire)

2шт.

2

A33172

WHEEL

- rear, universal hub, Includes: Ref. 3 - 6

2шт.

NSS

NOT SOLD SEPARAT

HUB ASSY. - universal, 3-1/2" tapered bushing

2шт.

3

A59791

HUB

- universal

1шт.

4

A59792

HUB

BUSHING - 3-1/2" taper

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A57654

CLAMP

- double ramp type

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" N.C. sq. hd.

24шт.

11

A34799

LOCK WASHER

- lock

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex.

24шт.

17

A33460

RIM

- rear wheel (takes 23.1 x 34 tire)

2шт.

18

A57686

WHEEL

- rear, universal hub

2шт.

NSS

NOT SOLD SEPARAT

HUB ASSY. - universal, 3-1/2" tapered bushing, Includes: Ref. 19 - 22

2шт.

19

A59791

HUB

- universal

1шт.

20

A59792

HUB

BUSHING - 3-1/2" taper

1шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

6шт.

22

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

6шт.

23

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

25

F62001

CLAMP

-, Serial Range: rim-wheel

16шт.

26

A60047

STUD

-, Serial Range: rim-wheel

16шт.

27

A27183

NUT

- stud

16шт.
