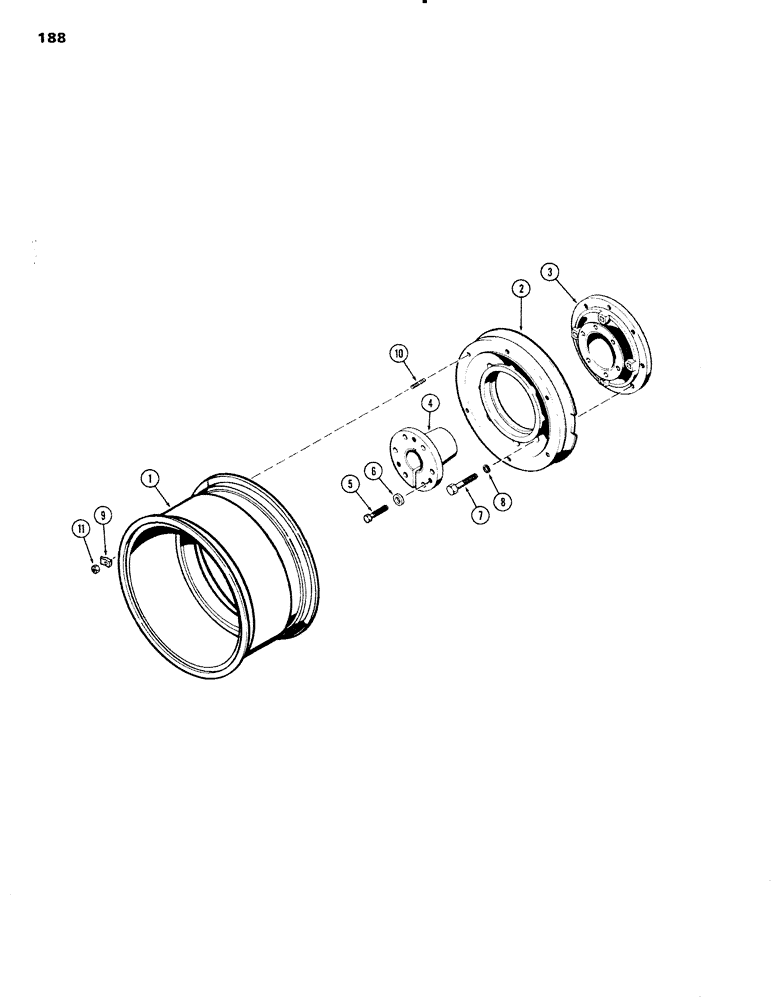

Запчасти Case IH 1090 (188) - REAR WHEELS WITH 30 INCH RIMS (08) - HYDRAULICS

1

A33176

RIM

- rear wheel (takes 23.1 x 30 tire)

2шт.

2

A33175

WHEEL

- rear, universal hub

2шт.

NSS

NOT SOLD SEPARAT

HUB ASSY. - universal, 3-1/2" tapered bushing, Includes: Ref. 3 - 6

2шт.

3

A59791

HUB

- universal

1шт.

4

A59792

HUB

BUSHING - 3-1/2" taper

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

6шт.

7

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

10

A60047

STUD

- rim to wheel clamp

12шт.

11

A27183

NUT

- 5/8" N.C. hex., special

12шт.
