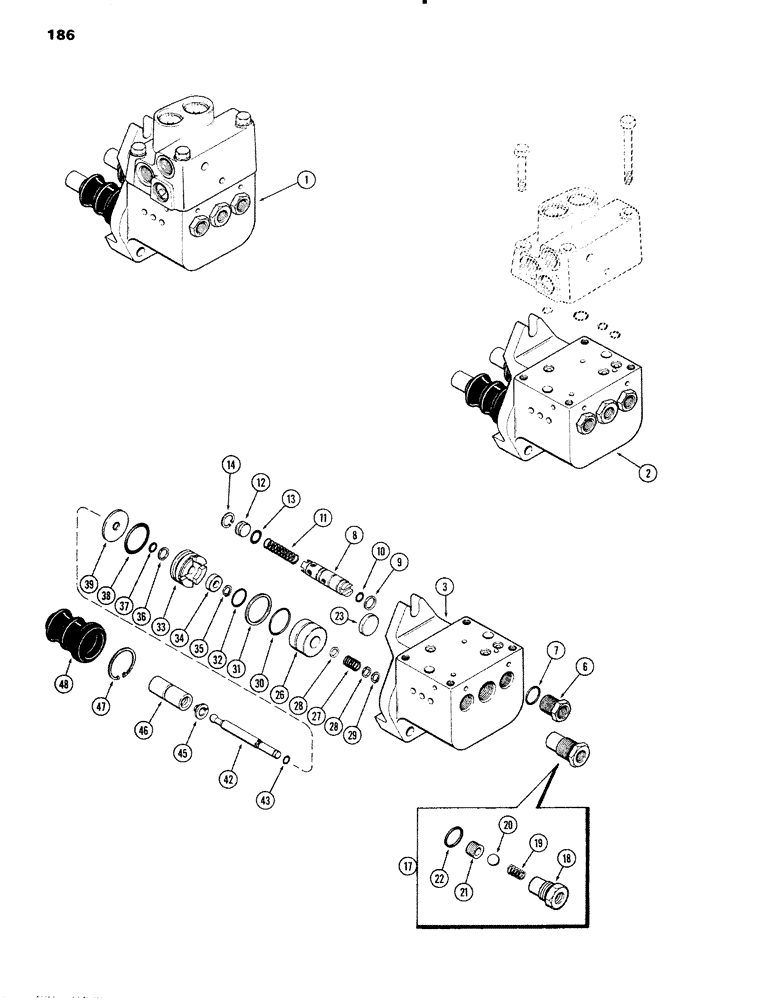

Запчасти Case IH 1090 (186) - POWER BRAKE VALVE (07) - BRAKES

1

A65724

SPARE PART

VALVE ASSY. - power brake (Casting No. A65362) (Replaces A62076), Includes: Ref. 2 - 47

1шт.

2

A65363

VALVE

ASSY. - master cylinder (Replaces A62075)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve (Order A62075)

1шт.

6

A59948

PLUG

- reducer

2шт.

8

A61104

SPOOL

- boost

2шт.

9

A59951

RING

- sealing

2шт.

Part of Repair Kit A43710

1шт.

10

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of Repair Kit A43710

1шт.

11

A59950

SPRING

- compression, 1-3/4" free length

2шт.

12

A59952

PLUG - spool

2шт.

13

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - 7/16 x 5/8 x 3/32"

2шт.

Part of Repair Kit A43710

1шт.

14

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, 0.625", Int, #62

2шт.

17

A61508

VALVE

ASSY. - sump pressure relief, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - valve (Order A61508)

1шт.

19

A61510

SPRING

- compression

1шт.

20

211-12

BALL,7/16 Dia

- 7/16" dia. steel

1шт.

21

A61511

SEAT

- ball

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

41-1016

PLUG,Cup, 1"

- 1" cup type

1шт.

26

A59953

PISTON

- power brake

2шт.

27

A59957

SPRING

- piston, 21/32" free length

2шт.

28

A59958

RETAINER

- spring

2шт.

29

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston #31, Ext

2шт.

30

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - 1-3/16 x 1-5/16 x 1/16"

2шт.

Part of Repair Kit A43710

1шт.

31

A59955

SEALING RING

RING - sealing

2шт.

Part of Repair Kit A43710

1шт.

32

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING - 3/4 x 7/8 x 1/16"

2шт.

33

A62072

SEAT

STOP - piston

2шт.

34

A59959

WASHER

- seal

2шт.

35

G10659

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

36

A59961

RING

- back-up

2шт.

Part of Repair Kit A43710

1шт.

37

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32"

2шт.

Part of Repair Kit A43710

1шт.

38

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1-1/4 x 1-1/2 x 1/8"

2шт.

Part of Repair Kit A43710

1шт.

39

A60646

SPACER

RETAINER - piston stop

2шт.

42

A59963

ROD

- piston

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - 3/16 x 5/16 x 1/16"

2шт.

Part of Repair Kit A43710

1шт.

45

A60647

COLLAR

RETAINER - piston rod, nylon

2шт.

Part of Repair Kit A43710

1шт.

46

A59964

CONNECTOR, ELEC

CONNECTOR - piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, 1.50", Int, #150

2шт.

48

A59966

BOOT

- piston rod

2шт.

Part of Repair Kit A43710

1шт.

A43710

KIT

REPAIR KIT - power brake valve, Incl. Refs. 9, 10, 13, 30, 31, 36, 37, 38, 43, 45 and 48

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 3/32"

2шт.
