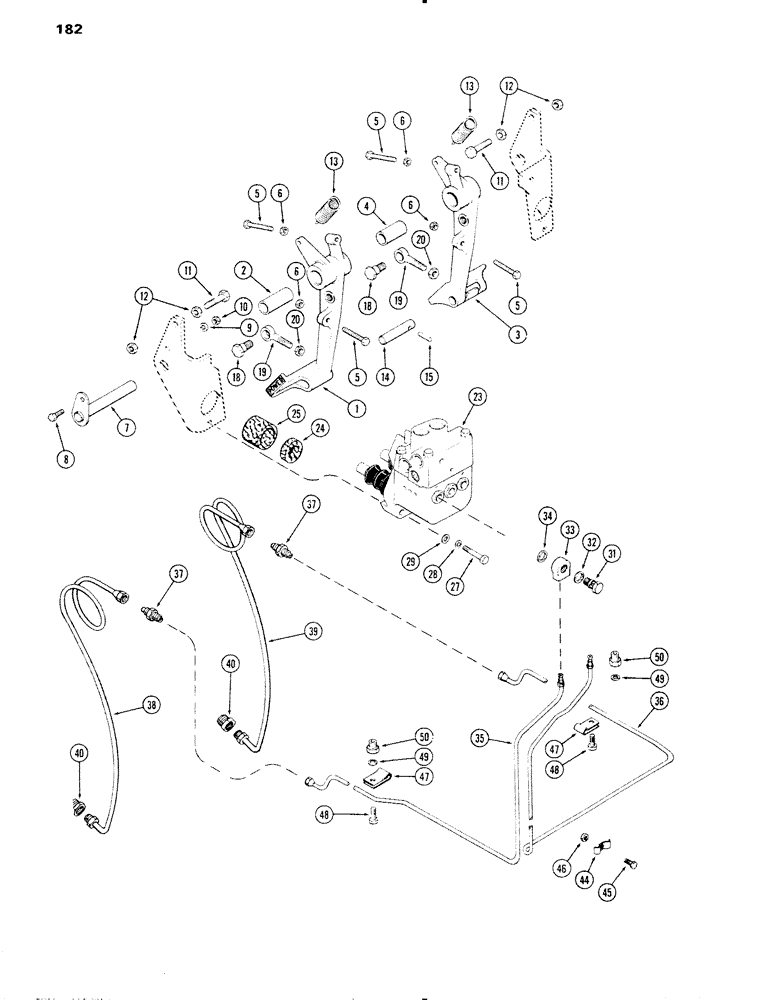

Запчасти Case IH 1090 (182) - POWER BRAKE SYSTEM (07) - BRAKES

1

A59394

PEDAL ASSY. - brake, R.H., Includes: Ref. 2

1шт.

2

A59475

BUSHING

- pedal

1шт.

3

A59471

PEDAL ASSY. - brake, L.H., Includes: Ref. 4

1шт.

4

A59475

BUSHING

- pedal

1шт.

5

A59472

BOLT

- 5/16 x 2-1/4" N.C. hex.

4шт.

6

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

4шт.

7

A59452

SHAFT

- pivot

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

11

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

4шт.

13

A59470

SPRING

- return

2шт.

14

A59454

PIN

- brake pedal lock

1шт.

15

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

18

A59152

STEP BOLT

BOLT - shoulder, pedal to eye bolt

2шт.

19

A59538

BOLT

BOLT - eye, Serial Range: pedal-cylinder

2шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

2шт.

23

REF

INSTRUCTION

VALVE ASSY. - power brake (Order from Fig. 184)

1шт.

24

A61287

COLLAR

- air seal, inner

2шт.

25

A61288

COLLAR

- air seal, outer

2шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

2шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

31

A12864

BOLT

- tube connection

2шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer (13/16 x 5/8 x 1/32")

2шт.

33

A18531

FITTING

- brake tube

2шт.

34

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner (13/16 x 1/2 x 1/32") (copper)

2шт.

35

A59478

TUBE

- brake, upper, R.H.

1шт.

36

A59479

TUBE

- brake, upper, L.H.

1шт.

37

222-712

FITTING

UNION - upper tubes to lower tubes

2шт.

38

A61484

TUBE - brake, lower, R.H.

1шт.

39

A61485

TUBE - brake, lower, L.H.

1шт.

40

222-1013

HYD CONNECTOR,7/16"-24 Inv Fl x 1/4" NPT

CONNECTOR - lower tubes to brake housing

2шт.

44

A60556

CLAMP - tubes

1шт.

45

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

46

25-104

NUT,1/4"-20, G5

1шт.

47

A59793

CLIP - tubes

4шт.

48

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

49

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

50

A59481

NUT

- blind fastener (in platform)

4шт.

51

A22880

CLIP

- brake tube, L.H.

1шт.
