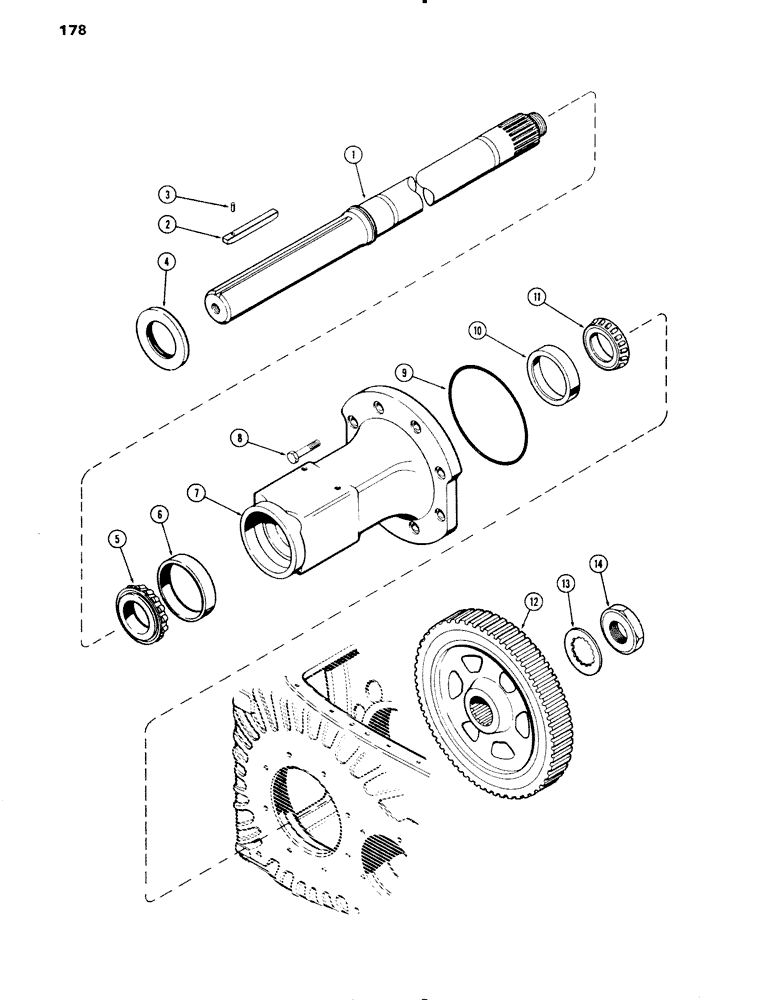

Запчасти Case IH 1090 (178) - REAR AXLE, 96 INCH TREAD (06) - POWER TRAIN

1

A62205

SHAFT - rear axle

2шт.

2

A34890

BUCKET TOOTH KEY

KEY - axle

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - roll, 1/4 x 1-3/8"

2шт.

4

A59046

OIL SEAL

- oil

2шт.

5

A59049

ROLLER BEARING

BEARING - tapered cone

2шт.

6

A59048

BEARING CUP

BEARING - tapered cup

2шт.

7

A62283

HOUSING

- axle, rear

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8 x 2-1/4" N.C. hex.

16шт.

9

A33050

OIL SEAL

- oil

2шт.

10

A50324

BEARING CUP

BEARING - tapered cup

2шт.

11

A34339

BEARING

- tapered cone

2шт.

12

A32805

GEAR

- final drive

2шт.

13

A32806

LOCK WASHER

- lock

2шт.

14

A23386

NUT

- lock

2шт.
