Запчасти Case IH 1070 (0186) - G100018 OIL FILTER (05) - STEERING

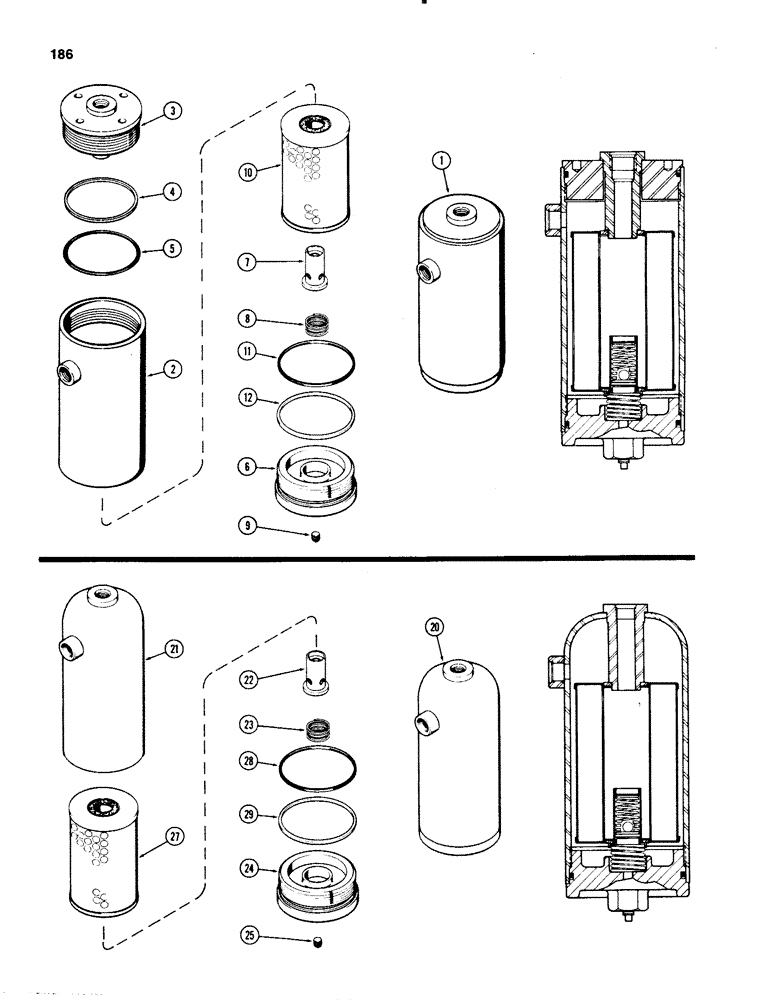

Схема запчастей Case IH 1070 - (0186) - G100018 OIL FILTER (05) - STEERING
7
24
10
23
20
11
28
4
29
12
21
9
8
2
27
22
25
5
3
1
6

Артикул

Название

Примечание

Количество

1

G100018

SPARE PART

FILTER ASSY - (25 micron), Includes: Ref. 2 - 12

1шт.

2

G100012

TUBE,4.17" ID x 9.890" L

ASSY - filter

1шт.

3

G100017

CAP

- end, top

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64"

1шт.

6

A60765

CAP

- end, bottom

1шт.

7

D37207

VALVE

ASSY - relief

1шт.

8

D31212

SPRING

- retaining

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/78" square head

1шт.

A61234

HYDRAULIC OIL FILTER

ELEMENT KIT - filter, Includes: Ref. 10 -12

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8"

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64"

1шт.

20

G102355

FILTER ASSY

- (25 micron) (Replaces G32017), Includes: Ref. 21 - 29, oil

1шт.

21

G32018

HYD TUBE,7.89" L

TUBE ASSY - filter G102355 oil

1шт.

22

D37207

VALVE

ASSY - relief G102355 oil filter

1шт.

23

D31212

SPRING

- retaining G102355 oil filter

1шт.

24

A60765

CAP

- end G102355 oil filter

1шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" square head G102355 oil filter

1шт.

27

G34278

FILTER

ELEMENT - oil filter (Order Kit A65854) G102355

1шт.

28

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8" G102355 oil filter

1шт.

29

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64" Teflon G102355 oil filter

1шт.

Выбрано товаров: 22
