(0184) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES W/ MECHANICAL SHIFT, USED PRIOR TO TRAC SN 8693001

Запчасти Case IH 1070 (0184) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES W/ MECHANICAL SHIFT, USED PRIOR TO TRAC SN 8693001 (05) - STEERING

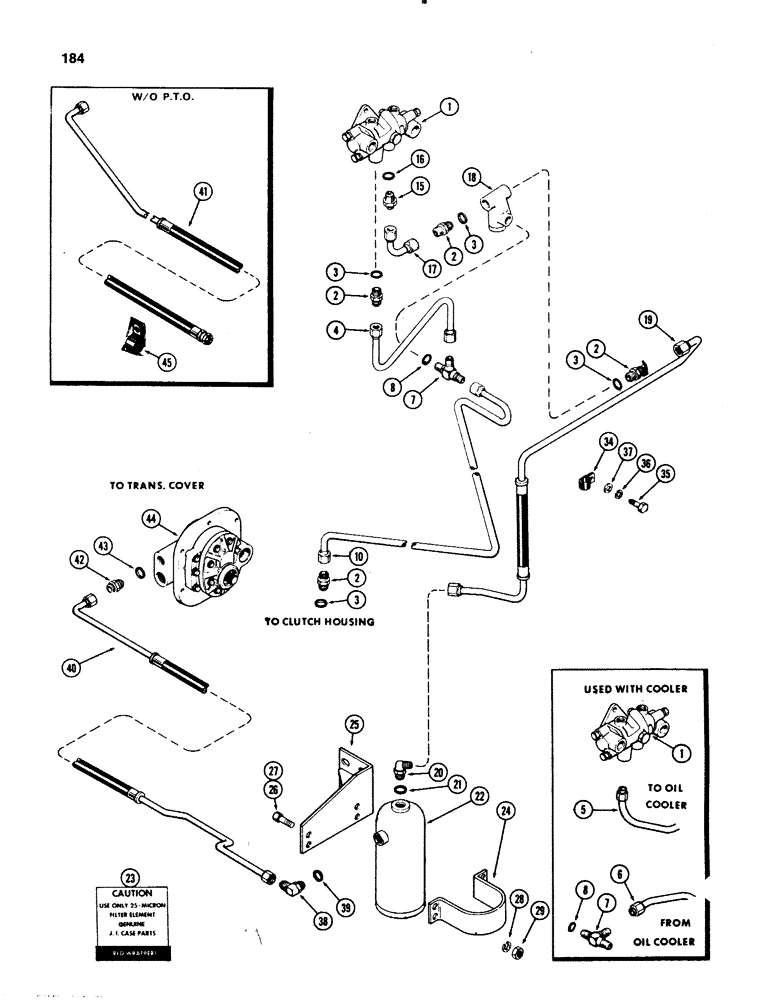

Схема запчастей Case IH 1070 - (0184) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES W/ MECHANICAL SHIFT, USED PRIOR TO TRAC SN 8693001 (05) - STEERING
4
34
10
45
1
7
2
20
29
26
37
25
19
5
28
39
3
2
3
8
18
15
8
23
16
7
24
3
3
17
21
36
38
40
27
42
6
2
22
44
1
43
35
41
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY - steering (See Figure 202)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - valve to tube, Incl. Ref 3

4шт.

4

A59928

TUBE - return, valve to tee (w/o cooler)

1шт.

5

A60402

TUBE - cooler to valve, upper (w/cooler)

1шт.

6

A60403

TUBE - cooler to tee, lower (w/cooler)

1шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - steering relief valve, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32"

1шт.

10

A60976

TUBE - tee to clutch housing

1шт.

15

A36663

CONNECTOR, ELEC

CONNECTOR ASSY - valve to tube, Includes: Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

A59904

TUBE

- pressure, relief valve to steering valve

1шт.

18

A59905

VALVE

ASSY - steering relief (See Fig. 188)

1шт.

19

A62368

TUBE ASSY.

TUBE - filter to relief valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - 90 degree, oil filter exit port, Includes: Ref. 21

1шт.

22

G32017

FILTER

ASSY - 25 micron (See Figure 186)

1шт.

23

321-1763

DECAL

- oil filter, 25 micron

1шт.

24

A60857

CLAMP -, Serial Range: filter-bracket

1шт.

25

A61781

BRACKET

- filter mounting

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

34

49833

CLAMP

- tube

1шт.

35

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - 90 degree, tube to filter, Includes: Ref. 39

1шт.

40

A62371

TUBE ASSY.

TUBE - pump to filter (w/PTO)

1шт.

41

A62123

TUBE - pump to filter (w/o PTO)

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy - pump to tube, Incl. Ref 43 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

44

REF

INSTRUCTION

PUMP ASSY - hydraulic dual (Order from Fig. 420)

1шт.

45

49836

CLAMP

- tube (w/o PTO)

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.
