Запчасти Case IH 1070 (0176) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, USED PRIOR TO TRAC SN 8693001 (05) - STEERING

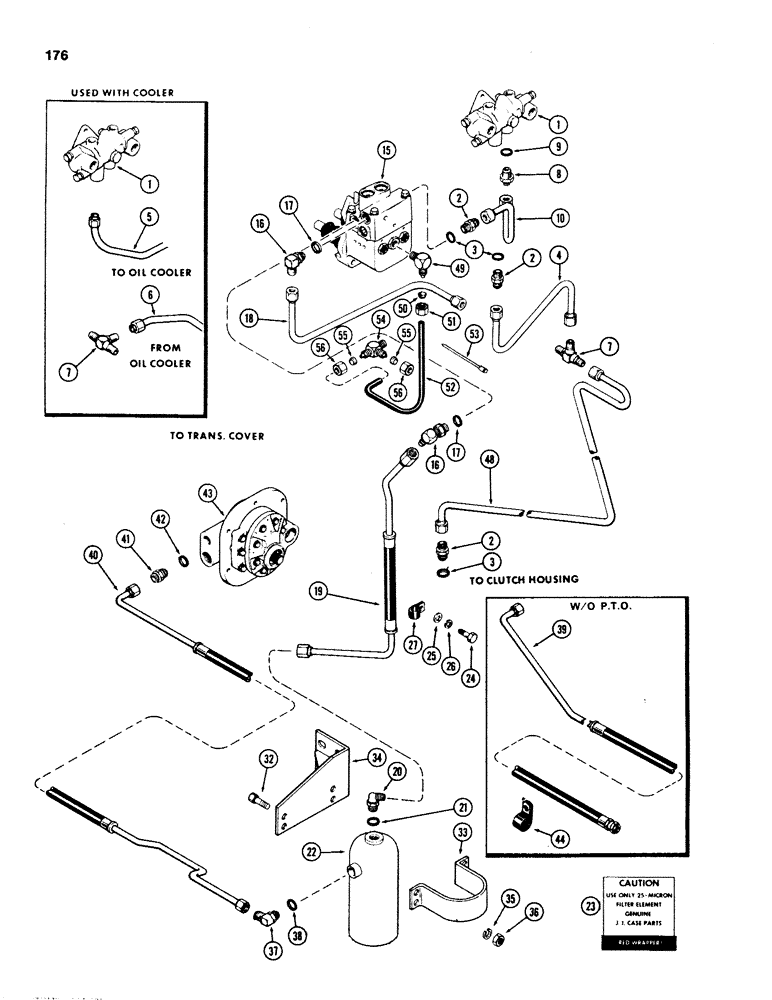

Схема запчастей Case IH 1070 - (0176) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, USED PRIOR TO TRAC SN 8693001 (05) - STEERING
42
55
18
10
21
23
43
20
17
26
38
5
41
15
34
48
2
27
3
36
8
56
19
9
56
17
16
35
7
2
1
16
7
39
24
40
2
6
44
54
52
55
33
22
1
32
49
25
50
4
53
3
37
51

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY - steering (See Figure 202)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSY - tube to valve, Incl. Ref 3

3шт.

4

A59928

TUBE - return, valve to tee (w/o cooler)

1шт.

5

A60402

TUBE - cooler to valve, upper (w/cooler)

1шт.

6

A60403

TUBE - cooler to tee, lower (w/cooler)

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

- junction

1шт.

8

A36663

CONNECTOR, ELEC

CONNECTOR ASSY - valve pressure inlet, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

A59918

TUBE

- brake valve to steering valve

1шт.

15

REF

INSTRUCTION

VALVE ASSY - power brake (See Figures 324-338)

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, power inlet & sump ports, Includes: Ref. 17

2шт.

18

A59919

TUBE - return, Serial Range: valve-tee

1шт.

19

A62370

HOSE

TUBE - filter to brake valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - 90 degree, oil filter exit port, Includes: Ref. 21

1шт.

22

G32017

FILTER

ASSY - 25 micron (See Figure 186)

1шт.

23

321-1763

DECAL

- oil filter, 25 micron

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

A60857

CLAMP -, Serial Range: filter-bracket

1шт.

34

A61781

BRACKET

- filter mounting

1шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - 90 degree, tube to filter, Includes: Ref. 38

1шт.

39

A62123

TUBE - pump to filter (w/o PTO)

1шт.

40

A62371

TUBE ASSY.

TUBE - pump to filter (w/PTO)

1шт.

41

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy - pump to tube, Incl. Ref 42 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

43

REF

INSTRUCTION

PUMP ASSY - hydraulic dual (Order from Fig. 420)

1шт.

44

49836

CLAMP

CLIP - tube (w/o PTO)

1шт.

48

A60976

TUBE - tee to clutch housing

1шт.

49

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 degree, brake valve relief, Includes: Ref. 50 and 51

1шт.

50

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

51

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

52

A60770

TUBE

- pressure relief (Nylon)

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

1шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

- reducing, transmission cover sump return, Includes: Ref. 55 and 56

1шт.

55

222-5186

SLEEVE,3/8" Tube

- nylon

2шт.

56

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/64 x 3/32"

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.
