(0174) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, 1ST USED W/TRACTOR SN 869301

Запчасти Case IH 1070 (0174) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, 1ST USED W/TRACTOR SN 869301 (05) - STEERING

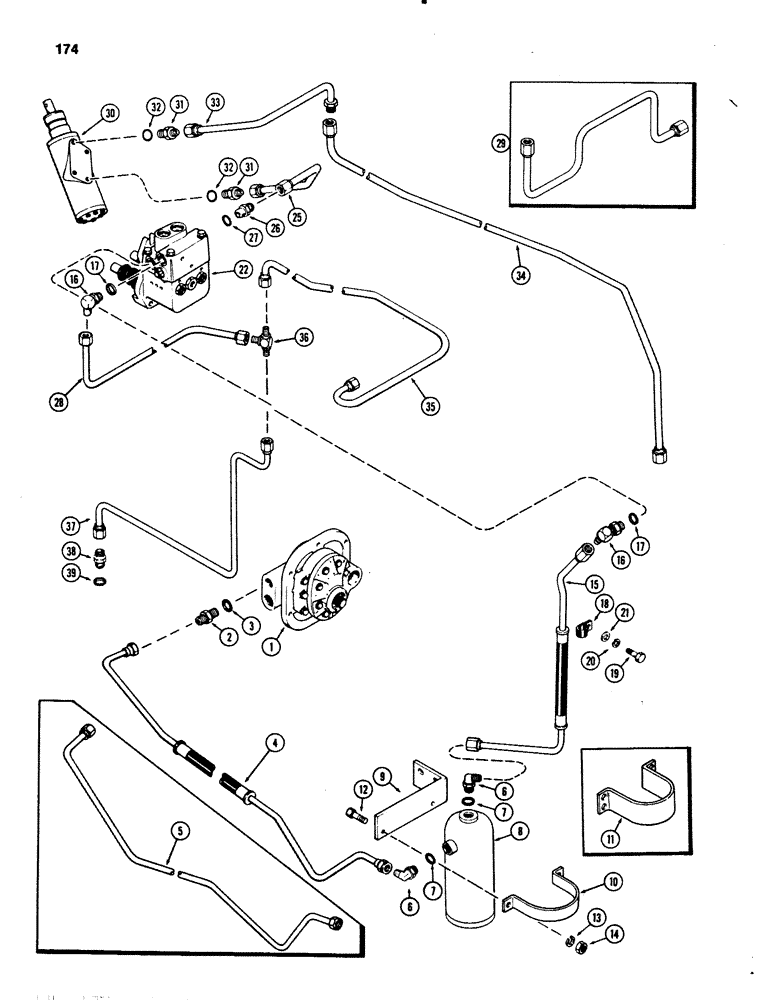

Схема запчастей Case IH 1070 - (0174) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, 1ST USED W/TRACTOR SN 869301 (05) - STEERING
5
10
3
13
20
37
31
27
29
32
33
36
21
16
15
6
11
7
22
12
39
6
26
35
8
38
30
16
4
14
17
18
1
19
31
17
32
2
28
9
34
25
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY - dual hydraulic (See Fig. 420)

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- tube to pump, 3/4" tube x 1-1/16", Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

4

A143170

TUBE

- pump to filter (Replaces A64478 & A67072)

1шт.

5

A67072

TUBE

- pump to filter (Order A143170)

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- filter, 1/2" tube x 3/4" - 16, Includes: Ref. 7

2шт.

8

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (Repairs Fig. 186), Includes: Ref. 9

1шт.

9

A143908

BRACKET

- filter mounting (Replaces A62650)

1шт.

10

A65004

CLAMP - filter (1st used trans ser no. 2397230

1шт.

11

A60857

CLAMP - filter (Used prior to trans ser no. 2397230) (Order A65004)

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-3/8 x 1-1/2" NC hex

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

15

A62370

HOSE

TUBE - filter to brake valve

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- brake valve, 1/2" tube x 3/4" - 16, Includes: Ref. 17

2шт.

18

49833

CLAMP

- tube, filter to brake valve

1шт.

19

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

22

REF

INSTRUCTION

VALVE ASSY - brake (See Figures 324-338)

1шт.

25

A64525

TUBE

- pressure, brake, Serial Range: valve-pump

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - valve, 1/2" tube x 3/4" - 16, Incl. Ref 27

1шт.

28

A65037

TUBE - brake valve to tee (1st used trac ser no. 8801030)

1шт.

29

A64526

TUBE

- brake valve to tee (Used prior to trac ser no. 8801030)

1шт.

30

REF

INSTRUCTION

PUMP ASSY - steering (See Figure 190)

1шт.

31

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - tube to pump, Includes: Ref. 32

4шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

A64528

TUBE

- pump to oil cooler tube

1шт.

34

A64521

TUBE

- oil, Serial Range: cooler-pump

1шт.

35

A64523

TUBE

- oil, Serial Range: cooler-tee

1шт.

36

218-594

TEE,3/4"-16, 37 Degree

- junction, 3/4" - 16

1шт.

37

A64533

TUBE

- tee to clutch housing

1шт.

38

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - tube to housing, 1/2" tube x 3/4" - 16, Incl. Ref 39

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64"

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64"

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64"

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64"

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64"

1шт.
